200 x 200 mm Side light / edge-lit area light, 50 mm hole (LS-BKL-1271)
  • 200 x 200 mm Side light / edge-lit area light, 50 mm hole (LS-BKL-1271)
  • LS-BKL-1271 dimensions (mm)

Representative photo of this series

Backlights

200 x 200 mm Side light / edge-lit area light, 50 mm hole (LS-BKL-1271)

Model LS-BKL-1271-R

  • ColourRed, Green, Blue, White
  • Emitting area200 x 200 mm
  • TypeWith centre hole
  • Cable length500 mm
$539.00

Ships in 2-3 weeks

0.5 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

200 x 200 mm Side light / edge-lit area light, 50 mm hole (LS-BKL-1271)LS-BKL-1271-R

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-BKL-1271: emitting area 200 x 200 mm, power green / blue / white 20.5 W, centre hole dia. 50 mm.

Edge-lit area light: the LEDs are distributed evenly along the sides of the light and a light-guide plate and diffuser form an even emitting surface. Sizes are flexible and easy to customise; square or round holes can be made.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1271
Expected lifeRed, white, blue and green: 30000 h continuous, decays to 40% (typical one-year decay 5-10%)
Support1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view
Centre hole dia. (mm)50

Interfaces and I/O

Cable length (mm)500

Light

Emitting area (mm)200 x 200
Wavelength red620-630 nm
Wavelength green525 nm
Wavelength blue470 nm
Colour temperature white5000-8000 K

Environment and compliance

Operating environmentAmbient about 25 °C, operating temperature within 35 °C

Electrical

Power, green / blue / white (W)20.5
Power, red (W)19.5
Recommended controllersLS-CTL-0140, -2T / LS-CTL-0142 / LS-CTL-0526, -4T / LS-CTL-0333, -4T, -6T, -8T
Supply voltage (derived)24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-0140, LS-CTL-0142, LS-CTL-0526, LS-CTL-0333

Mechanical

MountingM4 through holes (per drawing)
Shipping weight0.50 kg

Engineering data

Drive and fit the LS-BKL-1271

Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.

Supply24 V DC
Current at 24 V854 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 20.5 W
Emitting area200 × 200 mmKeep the camera's field of view inside it for an even background.
Cable length500 mm

Mounting and installation

Mounting holes M4through
Cable0.5 m

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

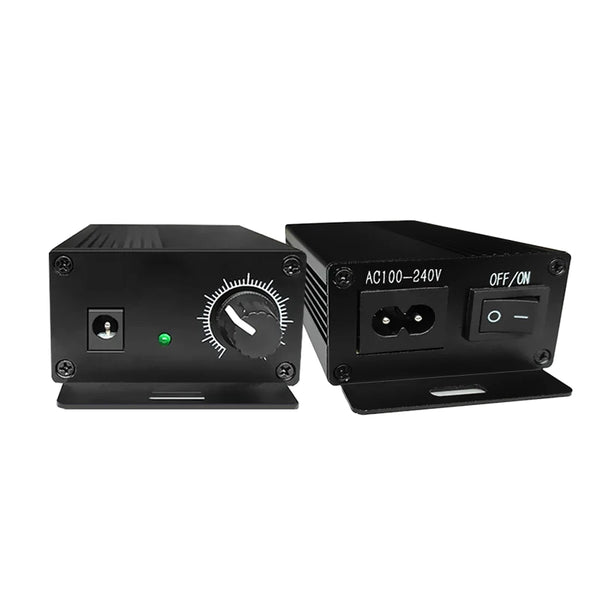

Controllers for this light
