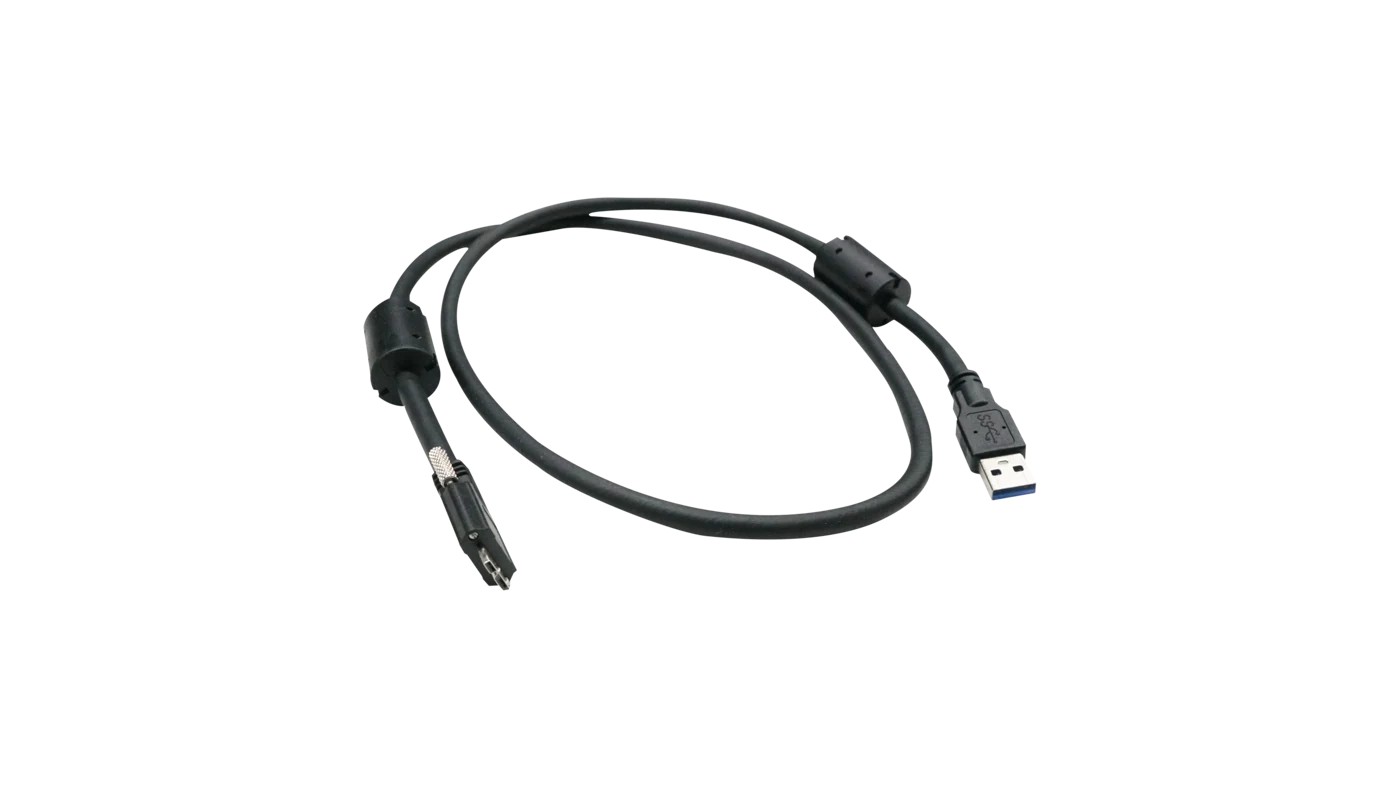

Camera Data Cable, Micro-B male (with screw) to A male, 1 m (LS-ACU3-MBMS-AM-FL-EMC-1M)
Model LS-ACU3-MBMS-AM-FL-EMC-1M
Camera Data Cable, Micro-B male (with screw) to A male, 1 m. USB3.0 flexible cable for data transmission and power to USB3.0 cameras
Features
- USB3.0 flexible cable for data transmission and power to USB3.0 cameras
Specifications
| Model | LS-ACU3-MBMS-AM-FL-EMC-1M |
|---|---|
| End A connector | Micro-B male (with screw) |
| End B connector | A male |
| Cable diameter | 6.8 mm |
| Length | 1 m |
| Cable mechanical | 26#*1P+24#*2C+26#*(1P+D)+AL+D+B, With ferrite core |
| Jacket | Nitrile PVC |
| Cable color | Black |
| Connector durability | >750 cycles |
| Min. bending radius | 81.6 mm |
| Applicable scenario | Drag chain |
| Max. U-type bending cycles | 100 thousand times |
| Max. voltage | 5 VDC |
| Working temperature | -20°C~ 80°C |
| Certification | RoHS, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
