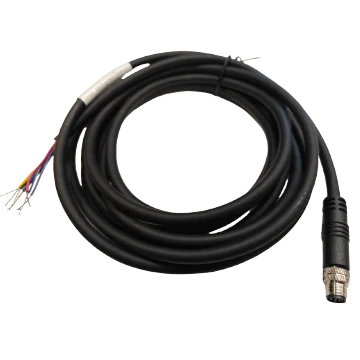

Camera Power and I/O Cable, M8 8-pin connector, Male to Open end (8-core), 5 m (LS-ACP-M8A8M-OPEN-ST-5M)

Cables

Camera Power and I/O Cable, M8 8-pin connector, Male to Open end (8-core), 5 m (LS-ACP-M8A8M-OPEN-ST-5M)

Model LS-ACP-M8A8M-OPEN-ST-5M

Camera Power and I/O Cable, M8 8-pin connector, Male to Open end (8-core), 5 m. M8 8-pin A-coded standard power & I/O cable for camera power and I/O signal wiring; available in multiple lengths

$59.00 USDIn stock · 5 available

Inventory updated Oct 16, 2026

0.31 kg shipping weight · Ships in 2-3 weeks

Need volume or project pricing?

Build a system with this part → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-ACP-M8A8M-OPEN-ST-5M

Features

  • M8 8-pin A-coded standard power & I/O cable for camera power and I/O signal wiring; available in multiple lengths

Specifications

ModelLS-ACP-M8A8M-OPEN-ST-5M
End A connectorM8 8-pin connector, Male
End B connectorOpen end (8-core)
Cable diameter5.5 mm
Length5 m
Cable mechanical26#*2P+26#*2C+26AWG*2C+AB
JacketPVC
Cable colorBlack
Connector modelmade in China
Connector durability≥ 750 cycles
Min. bending radius66 mm
Applicable scenarioStatic scenes
Max. voltage30 VDC
Working temperature-20°C~ 75°C
CertificationRoHS2.0, UL
PackagingIndividual package
Shipping weight (estimated)0.31 kg
