Cables

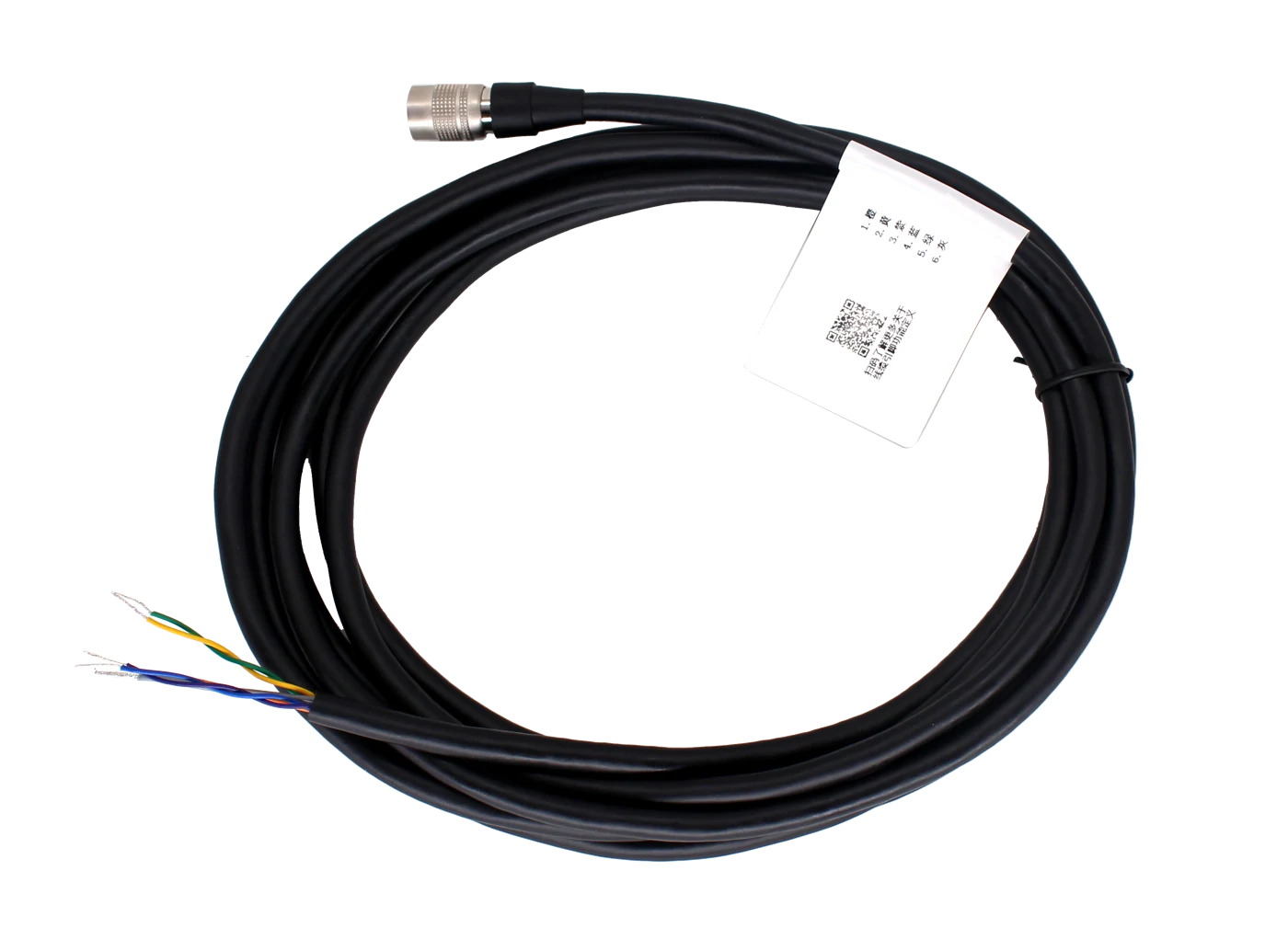

Camera Power and I/O Cable, P7 6-pin, Femal, Black insulator, Solder type to Open, 5m (LS-ACP-H6P-OPEN-SF-5M)
Model LS-ACP-H6P-OPEN-SF-5M
Camera Power and I/O Cable, P7 6-pin, Femal, Black insulator, Solder type to Open, 5m. The 6-pin P7 Super Flex Power&I/O Cable can be used to power the camera, I/O signal wiring, and is available in a variety of lengths.
Features
- The 6-pin P7 Super Flex Power&I/O Cable can be used to power the camera, I/O signal wiring, and is available in a variety of lengths.
Specifications
| Model | LS-ACP-H6P-OPEN-SF-5M |
|---|---|
| End A connector | P7 6-pin, Femal, Black insulator, Solder type |
| End B connector | Open |
| Cable diameter | 5.5 mm |
| Length | 5m |
| Cable mechanical | 2P*28AWG+2C*23AWG+AB |
| Jacket | PVC |
| Cable color | Black |
| Connector model | made in China |
| Connector durability | ≥ 750 cycles |
| Min. bending radius | 66 mm |
| Applicable scenario | Tank chain, Robot arm |
| Max. U-type bending cycles | ≥ 10 million times |
| Max. ±90° bending cycles | ≥ 3 million times |
| Max. ±180° torsional cycles | ≥ 5 million times |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~80°C |
| Certification | RoHS2.0 |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
