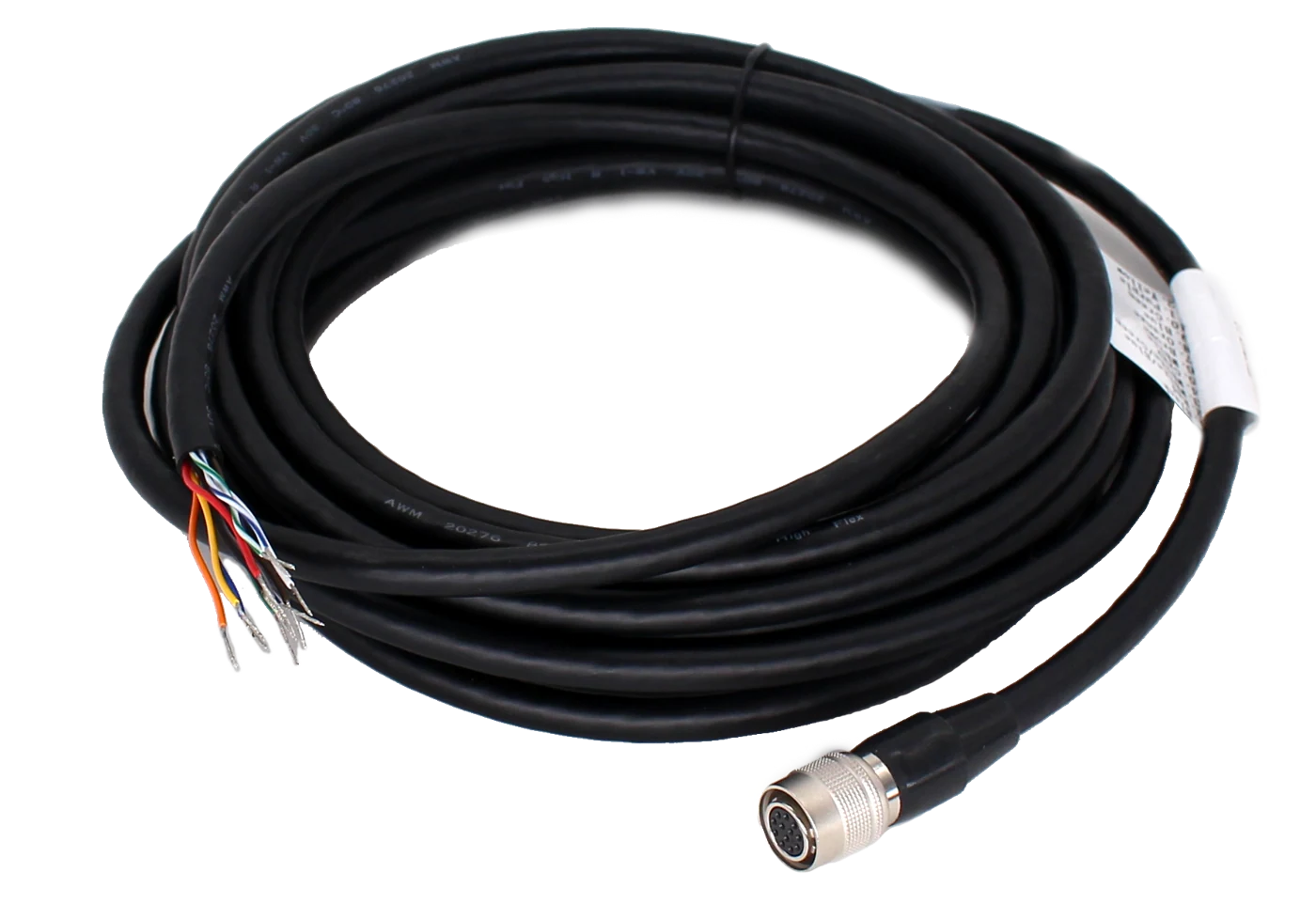

Camera Power and I/O Cable, P10 12-pin aerospace connector, female to Open, 10 m (LS-ACP-H12P-OPEN-HF-10M)
Model LS-ACP-H12P-OPEN-HF-10M
Camera Power and I/O Cable, P10 12-pin aerospace connector, female to Open, 10 m. The 12-pin P10 high-flex I/O & power cable can be used for camera power supply and I/O signal wiring, and it is available in various lengths.
Features
- The 12-pin P10 high-flex I/O & power cable can be used for camera power supply and I/O signal wiring, and it is available in various lengths.
Specifications
| Model | LS-ACP-H12P-OPEN-HF-10M |
|---|---|
| Length | 10 m |
| End A connector | P10 12-pin aerospace connector, female |
| End B connector | Open |
| Cable diameter | 7.0 mm |
| Cable mechanical | 5P*26AWG+1P*24AWG+F+B |
| Jacket | PVC |
| Cable color | Black |
| Connector model | 12-Pin P10 |
| Connector durability | ≥ 750 mating cycles |
| Min. bending radius | 84 mm |
| Applicable scenario | Drag chains |
| Max. U-type bending cycles | ≥ 5 million times |
| Max. voltage | 30 VDC |
| Working temperature | –20 °C to 80 °C (–4 °F to 176 °F) |
| Certification | RoHS2.0, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
