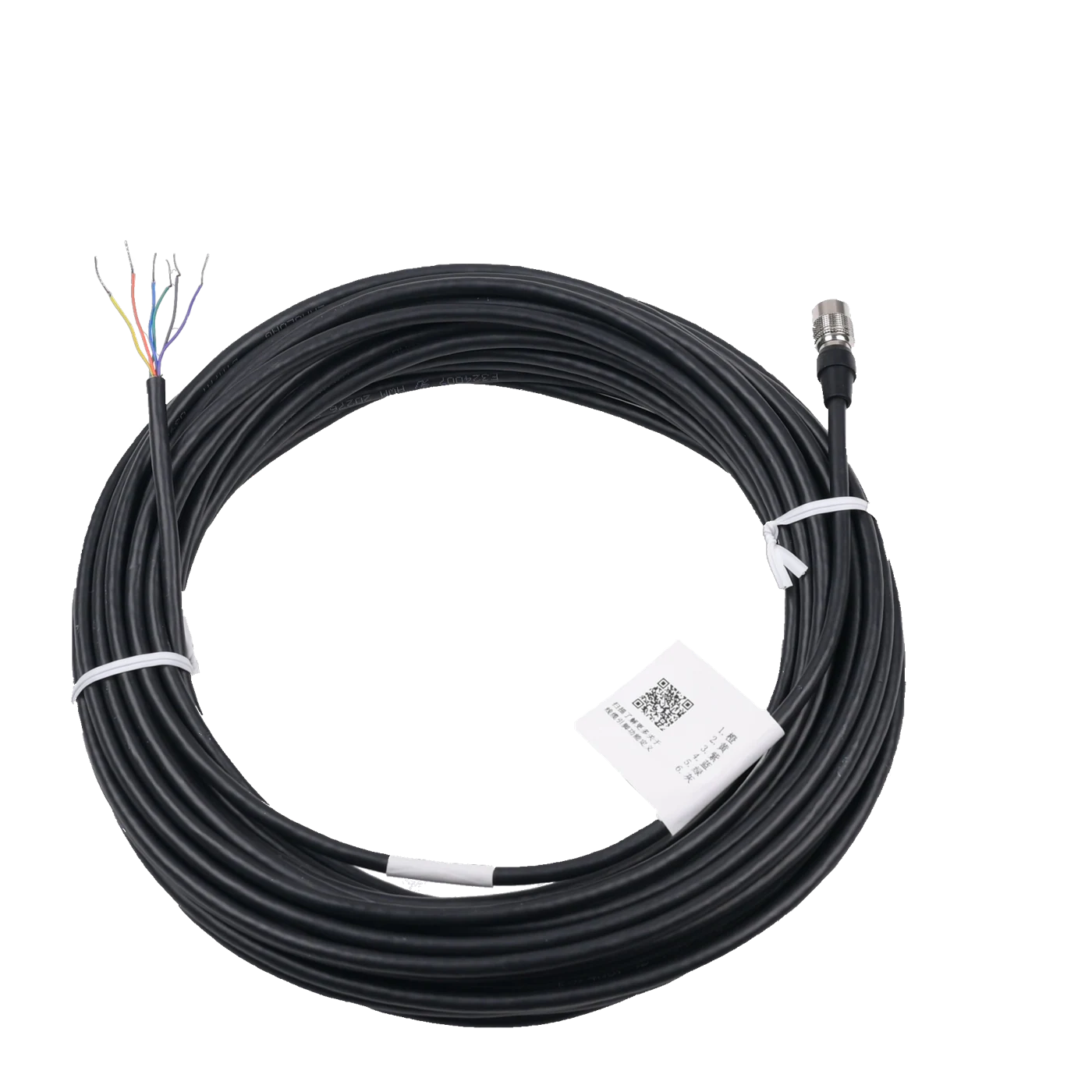

Camera Power and I/O Cable, P7 6-pin, female to Open, 5 m (LS-ACP-H6P-OPEN-ST-5M)
Model LS-ACP-H6P-OPEN-ST-5M
Camera Power and I/O Cable, P7 6-pin, female to Open, 5 m. The 6-pin P7 Standard Power & I/O Cable can be used to power the camera, provide I/O signal wiring, and is available in a variety of lengths.
Features
- The 6-pin P7 Standard Power & I/O Cable can be used to power the camera, provide I/O signal wiring, and is available in a variety of lengths.
Specifications
| Model | LS-ACP-H6P-OPEN-ST-5M |
|---|---|
| End A connector | P7 6-pin, female |
| End B connector | Open |
| Cable diameter | 5.0 mm |
| Length | 5 m |
| Cable mechanical | 26#×2P+26#×2C+AB |
| Jacket | PVC |
| Cable color | Black |
| Connector model | Made in China |
| Connector durability | ≥ 750 cycles |
| Min. bending radius | 60 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~75°C |
| Certification | RoHS2.0, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
