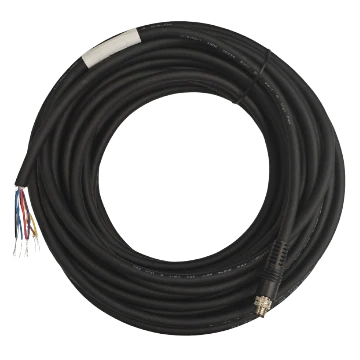

Camera Power and I/O Cable, M8 8-pin connector, Male to Open end (8-core), 5 m (LS-ACP-M8A8M-OPEN-HF-WP-5M)
Model LS-ACP-M8A8M-OPEN-HF-WP-5M
Camera Power and I/O Cable, M8 8-pin connector, Male to Open end (8-core), 5 m. M8 8-pin A-coded waterproof high-flex power & I/O cable for camera power and I/O signal wiring; available in multiple lengths
Features
- M8 8-pin A-coded waterproof high-flex power & I/O cable for camera power and I/O signal wiring; available in multiple lengths
Specifications
| Model | LS-ACP-M8A8M-OPEN-HF-WP-5M |
|---|---|
| End A connector | M8 8-pin connector, Male |
| End B connector | Open end (8-core) |
| Cable diameter | 6.8 mm |
| Length | 5 m |
| Cable mechanical | 26#*2P+26#*2C+26AWG*2C+AB |
| Jacket | PVC |
| Cable color | Black |
| Connector model | made in China |
| Connector durability | ≥ 750 cycles |
| Min. bending radius | 81.6 mm |
| Applicable scenario | Static/drag-chain, Waterproof |
| Max. U-type bending cycles | 5 million times |
| Max. voltage | 30 VDC |
| Ingress protection | IP67 (with camera mounted) |
| Working temperature | -20°C~ 75°C |
| Certification | RoHS2.0, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
