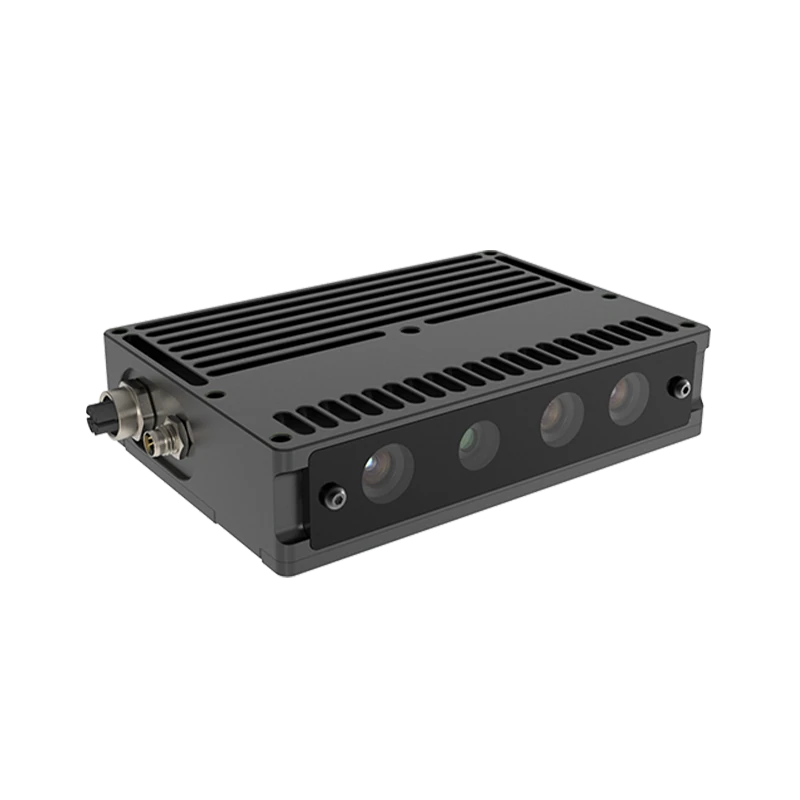

3D depth camera (LS-8xx / LS-461), 1.2 MP (LS-851)
Model LS-851
3D depth camera IP65 is waterproof, dustproof.Meets IEC standard 60529.
Features
- Maximum range of single camera: 500mm*500mm*500mm.
- Up to 8 cameras online, maximum range: 2000mm*2000mm* 2000mm.
- State of use: static measurement.
- Upgraded SGBM algorithm with built-in hardware lSP.
- Match SDK and RVS software.
Specifications
| Model | LS-851 |
|---|---|
| Measurement range(mm) | 700 ~ 6000 |
| FOV (H/V) | 58°/48° |
| Z Accuracy(mm) | 4.27mm@1500mm |
| X/Y Accuracy(mm) | 14.41mm@1500mm |
| Power&Trigger | 6-pin aviation plug |
| Working distance | 0.7m-6m |
| Accuracy (Z) | 4.27mm@1500mm |
| Accuracy (X,Y) | 14.41mm@1500mm |
| Depth resolution | 1280*960 |
| RGB resolution | 1280*960 |
| Power Supply | DC 24V / IEEE802.3af/at POE |
| Power supply and trigger interface | 6-pin aviation plug |
| Data interface | M12 X-Coding |
| Power consumption | 2.9W ~ 5.2W |
| Temperature | Storage:-10℃~55℃; Controls:0℃~45℃ |
| Protection level | IP65 |
| Size | 140mm*31.9mm*96mm |
| Weight | 650g |
| Voltage | DC 24V / IEEE802.3af/at POE |
