Area scan cameras

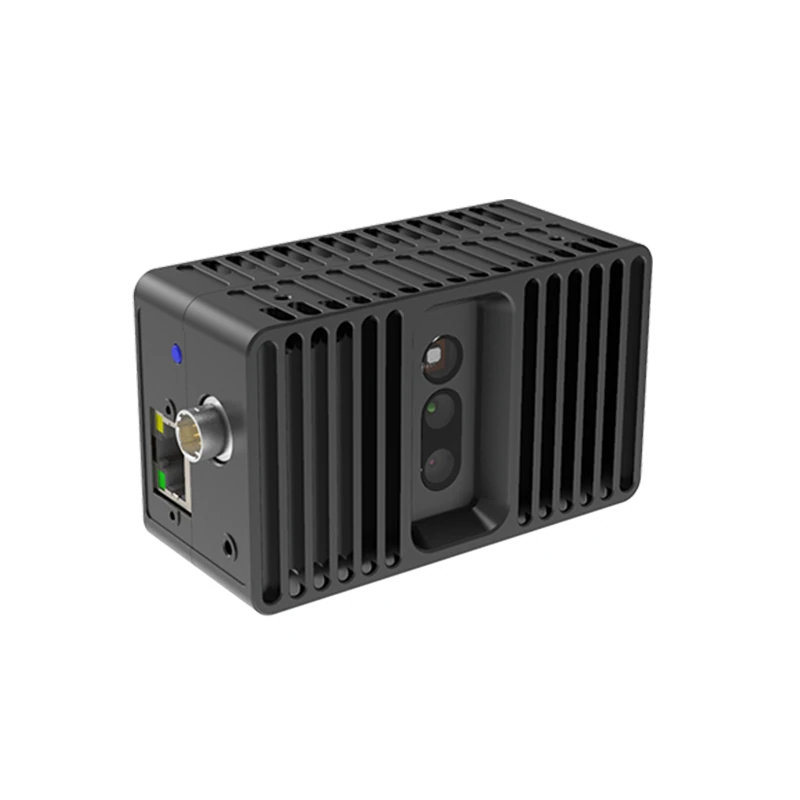

3D depth camera (LS-8xx / LS-461), 0.3 MP (LS-461)
Model LS-461
3D depth camera IP65 is waterproof, dustproof.Meets IEC standard 60529.
Features
- Maximum range of single camera: 500mm*500mm*500mm.
- Up to 8 cameras online, maximum range: 2000mm*2000mm* 2000mm.
- State of use: static measurement.
- Upgraded SGBM algorithm with built-in hardware lSP.
- Match SDK and RVS software.
Specifications
| Model | LS-461 |
|---|---|
| Measurement range(mm) | 100 ~ 1000 |
| FOV (H/V) | 65°/50° |
| Z Accuracy(mm) | ±5+1% of depth [400, 2200] |
| X/Y Accuracy(mm) | ±5+1% of depth [400, 2200] |
| Power&Trigger | HR10A-7P-6S (HRS) |
| Z Accuracy(mm) (product page) | ±15+1% of depth (2200, 4300] |
| X/Y Accuracy(mm) (product page) | ±15+1% of depth (2200, 4300] |
| Working distance | 0.1m-10m |
| Accuracy (Z) | ±5 mm + 1% of depth [400 mm , 2200 mm]; ±15 mm + 1% of depth (2200 mm , 4300 mm] |
| Depth resolution | 640*480 |
| RGB resolution | 1920*1048 |
| Power Supply | DC 12 V / 24 V |
| Power supply and trigger interface | HR10A-7P-6S (HRS) |
| Data interface | RJ45 |
| Power consumption | 1.5W ~ 6.3W |
| Temperature | Storage:-10℃~55℃; Controls:0℃~45℃ |
| Protection level | IP50 |
| Size | 96.4mm*67.5mm*35.8mm |
| Weight | 315g |
| Voltage | DC 12 V / 24 V |
