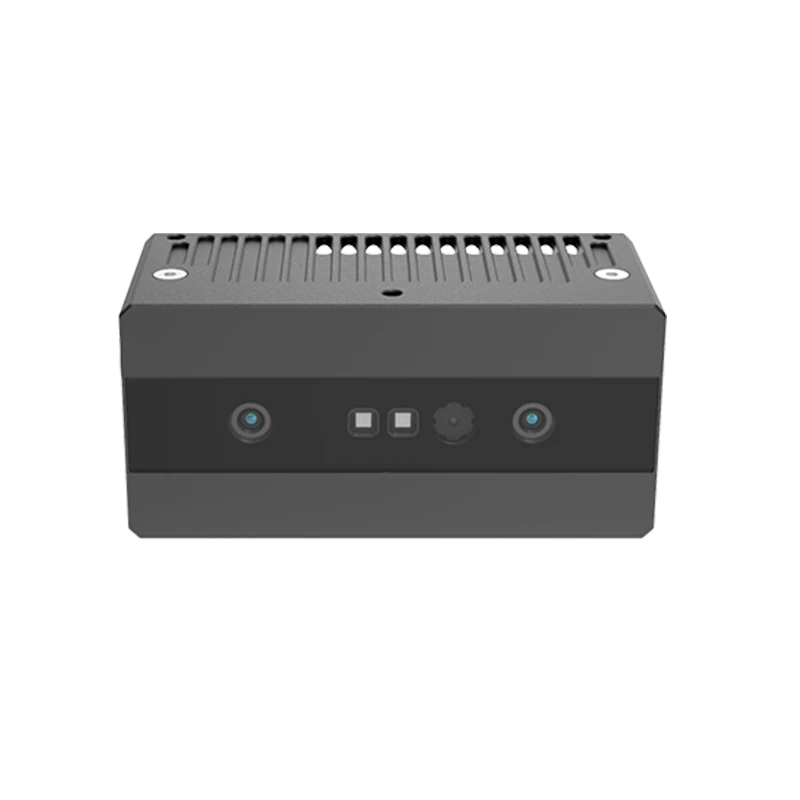

3D depth camera (LS-8xx / LS-461), 1.0 MP (LS-820)
Model LS-820
3D depth camera IP65 is waterproof, dustproof.Meets IEC standard 60529.
Features
- Maximum range of single camera: 500mm*500mm*500mm.
- Up to 8 cameras online, maximum range: 2000mm*2000mm* 2000mm.
- State of use: static measurement.
- Upgraded SGBM algorithm with built-in hardware lSP.
- Match SDK and RVS software.
Specifications
| Model | LS-820 |
|---|---|
| Measurement range(mm) | 300 ~ 1400 |
| FOV (H/V) | 66°/44° |
| Z Accuracy(mm) | 1.73mm@700mm |
| X/Y Accuracy(mm) | 4.88mm@700mm |
| Power&Trigger | HR10A-7P-6S (HRS) |
| Working distance | 0.3m-1.4m |
| Accuracy (Z) | 1.73mm@1500mm |
| Accuracy (X,Y) | 4.88mm@1500mm |
| Depth resolution | 1280*800 |
| RGB resolution | 1920*1080 |
| Power Supply | DC 12V / 24V |
| Power supply and trigger interface | HR10A-7P-6S (HRS) |
| Data interface | RJ45 |
| Power consumption | 2.8W ~ 3.9W |
| Temperature | Storage:-10℃~55℃; Controls:0℃~45℃ |
| Protection level | IP41 |
| Size | 95mm*45mm*43mm |
| Weight | 228g |
| Voltage | DC 12V / 24V |
