Mobile robots

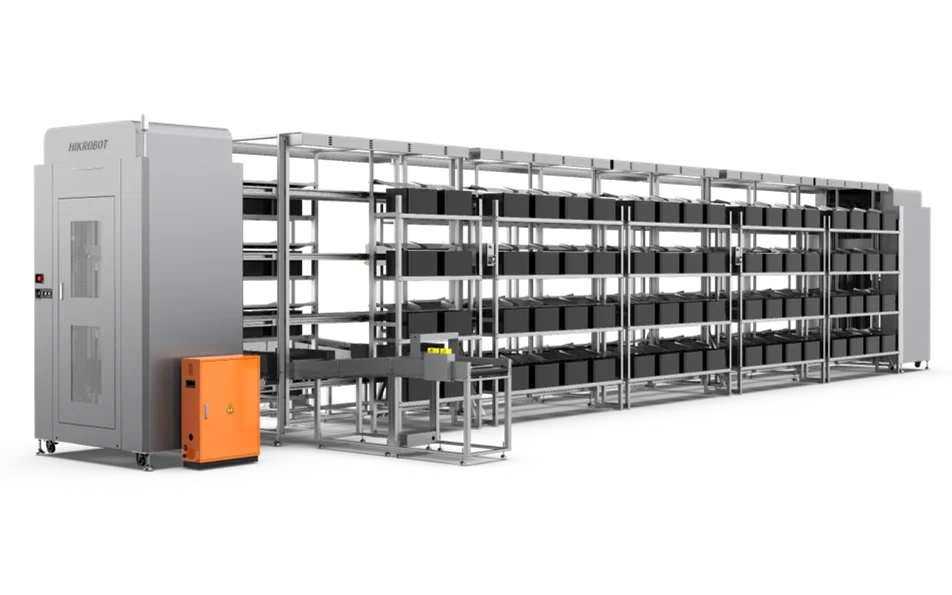

Hikrobot TP8-DH Case-Handling Robot (CTU)
Model TP8-DH
Hikrobot TP8-DH case-handling robot (ctu). Flexible, precise, highly compatible and high storage density
Specifications
| Model | TP8-DH |
|---|---|
| Brand | Hikrobot |
| Sorting outlets | 144 (expandable) |
| Sorting AMRs | 10 to 12 (customizable) |
| Sorting rate (items/h) | 1500 |
| Induction stations | 2 (customizable) |
| Dimensions L × W × H (mm) | 14000 × 4760 × 2680 |
| Induction height (mm) | 800 |
| Load size (mm) | (50 to 550) × (50 to 390) × (5 to 200) |
| Power supply (VAC, kW) | 220,4 |
| Shelf rows per module | 4 |
| Shelf columns per module | 4 |
| Shipping | Freight, quoted with the order |
| Shipping weight | 300.00 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the CTU mobile robots series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| TP6-50SCW | 50 kg rated load | Price on request | 4 in stock | View |
| TP6-30SGH | 30 kg rated load | Price on request | 2 in stock | View |
| TP6-30SGP | 30 kg rated load | Price on request | 4 in stock | View |
| TP5-50DCH(D) | 250 kg rated load | Price on request | 3 in stock | View |
| TP5-50DCH(A) | 250 kg rated load | Price on request | 2 in stock | View |
| TP5-50DCW | 250 kg rated load | Price on request | 4 in stock | View |
| TP1-50UM-A | 50 kg rated load | Price on request | 2 in stock | View |
| TP1-50UM-B | 50 kg rated load | Price on request | 4 in stock | View |
| TP1-50DC-A | 50 kg rated load | Price on request | 2 in stock | View |
| TP5-50DCN-B | 50 kg rated load | Price on request | 2 in stock | View |
| TP5-50DC-B | 300 kg rated load | Price on request | 3 in stock | View |
| TP5-50DC-C | 300 kg rated load | Price on request | 5 in stock | View |
| TP5-50DCP | 300 kg rated load | Price on request | 4 in stock | View |
| TP5-50DCP(D) | 300 kg rated load | Price on request | 4 in stock | View |
| TP5-50DCH(M) | 300 kg rated load | Price on request | 3 in stock | View |
| TP5-50DCW(M) | 300 kg rated load | Price on request | 4 in stock | View |
| TP5-50DCH(T)-D | 300 kg rated load | Price on request | 2 in stock | View |
| TP5-50DCP(T)-D | 300 kg rated load | Price on request | 3 in stock | View |
| TP5-DCW(T)-D | 300 kg rated load | Price on request | 5 in stock | View |
| TP5-50DGH(DT)-D | 300 kg rated load | Price on request | 4 in stock | View |
| TP5-50DTH | 300 kg rated load | Price on request | 5 in stock | View |
| TP5-50DM-C | 250 kg rated load | Price on request | 4 in stock | View |
| TP8-S | 5 kg rated load | Price on request | 3 in stock | View |
| TP1-50DM-B | 50 kg rated load | Price on request | 4 in stock | View |
