Mobile robots

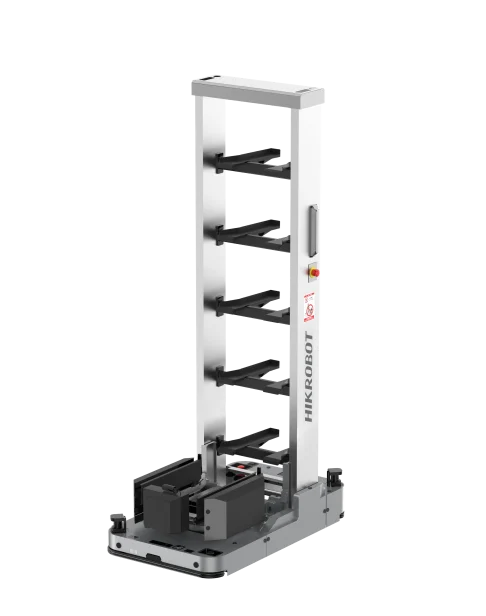

Hikrobot TP5-50DCN-B Case-Handling Robot (CTU)
Model TP5-50DCN-B
Hikrobot TP5-50DCN-B case-handling robot (ctu). Flexible, precise, highly compatible and high storage density
Specifications
| Model | TP5-50DCN-B |
|---|---|
| Brand | Hikrobot |
| Rated Load (kg) | 50 |
| Storage positions | 5 |
| Aisle width (mm) | 850 |
| Actuator type | Clamping, single-deep |
| Positioning accuracy (mm, °) | ±10,±1 |
| Docking height (mm) | 300 to 2100 |
| Dimensions L × W × H (mm) | 1300 × 750 × 2460 |
| Weight incl. battery (kg) | 410 |
| Rated speed (m/s) | 1.8 |
| Bin size (mm) | 460 × 350 × (100-400) |
| Charging time (h) | ≤ 1.5 |
| Rated runtime (h) | 8 |
| Shipping | Freight, quoted with the order |
