Mobile robots

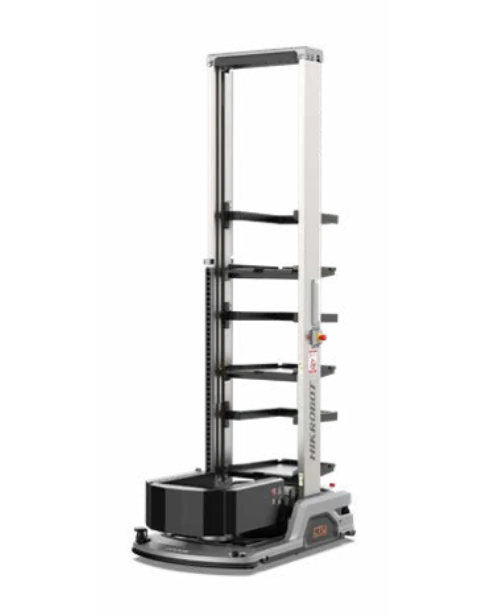

Hikrobot TP5-50DM-C Case-Handling Robot (CTU)
Model TP5-50DM-C
Hikrobot TP5-50DM-C case-handling robot (ctu). Flexible, precise, highly compatible and high storage density
Specifications
| Model | TP5-50DM-C |
|---|---|
| Brand | Hikrobot |
| Rated Load (kg) | 250 |
| Storage positions | 6 |
| Aisle width (mm) | 1050 |
| Actuator type | Combined (roller + clamping) |
| Positioning accuracy (mm, °) | ±10,±1 |
| Docking height (mm) | 370 to 3000 |
| Dimensions L × W × H (mm) | 1600 × 900 × 3370 |
| Weight incl. battery (kg) | 600 |
| Rated speed (m/s) | 1.6 |
| Bin size (mm) | 600 × 400 × (100-400) |
| Charging time (h) | ≤1.5 |
| Rated runtime (h) | 8 |
| Shipping | Freight, quoted with the order |
