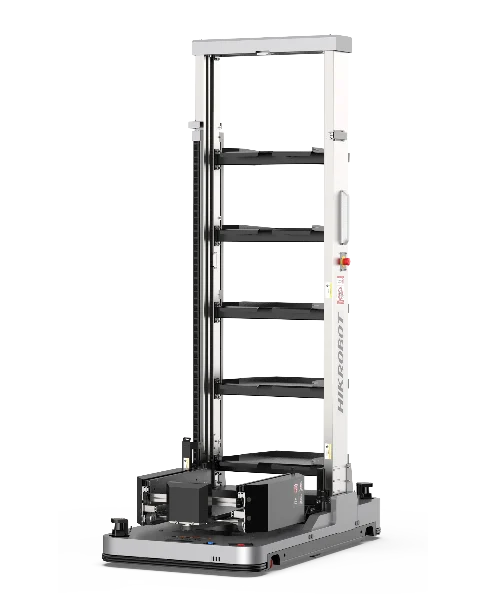

Hikrobot TP5-50DC-B Case-Handling Robot (CTU)
Model TP5-50DC-B
Hikrobot TP5-50DC-B case-handling robot (ctu). Flexible, precise, highly compatible and high storage density
Specifications
| Model | TP5-50DC-B |
|---|---|
| Brand | Hikrobot |
| Rated Load (kg) | 300 |
| Storage positions | 5 |
| Aisle width (mm) | 1000 |
| Actuator type | Clamping, single-deep |
| Positioning accuracy (mm, °) | ±10,±1 |
| Docking height (mm) | 300-2300 |
| Dimensions L × W × H (mm) | 1730 × 850 × 2640 |
| Weight incl. battery (kg) | 600 |
| Rated speed (m/s) | 1.8 |
| Bin size (mm) | 600 × 400 × (100-400) |
| Charging time (h) | ≤ 1.5 |
| Rated runtime (h) | 8 |
| Shipping | Freight, quoted with the order |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the CTU mobile robots series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| TP6-50SCH | 50 kg rated load | Price on request | 5 in stock | View |
| TP6-50SCP | 50 kg rated load | Price on request | 2 in stock | View |
| TP6-50SCW | 50 kg rated load | Price on request | 4 in stock | View |
| TP6-30SGH | 30 kg rated load | Price on request | 2 in stock | View |
| TP6-30SGP | 30 kg rated load | Price on request | 4 in stock | View |
| TP5-50DCH(D) | 250 kg rated load | Price on request | 3 in stock | View |
| TP5-50DCH(A) | 250 kg rated load | Price on request | 2 in stock | View |
| TP5-50DCW | 250 kg rated load | Price on request | 4 in stock | View |
| TP1-50UM-A | 50 kg rated load | Price on request | 2 in stock | View |
| TP1-50UM-B | 50 kg rated load | Price on request | 4 in stock | View |
| TP1-50DC-A | 50 kg rated load | Price on request | 2 in stock | View |
| TP5-50DCN-B | 50 kg rated load | Price on request | 2 in stock | View |
| TP5-50DC-C | 300 kg rated load | Price on request | 5 in stock | View |
| TP5-50DCP | 300 kg rated load | Price on request | 4 in stock | View |
| TP5-50DCP(D) | 300 kg rated load | Price on request | 4 in stock | View |
| TP5-50DCH(M) | 300 kg rated load | Price on request | 3 in stock | View |
| TP5-50DCW(M) | 300 kg rated load | Price on request | 4 in stock | View |
| TP5-50DCH(T)-D | 300 kg rated load | Price on request | 2 in stock | View |
| TP5-50DCP(T)-D | 300 kg rated load | Price on request | 3 in stock | View |
| TP5-DCW(T)-D | 300 kg rated load | Price on request | 5 in stock | View |
| TP5-50DGH(DT)-D | 300 kg rated load | Price on request | 4 in stock | View |
| TP5-50DTH | 300 kg rated load | Price on request | 5 in stock | View |
| TP5-50DM-C | 250 kg rated load | Price on request | 4 in stock | View |
| TP8-DH | Price on request | 2 in stock | View |
