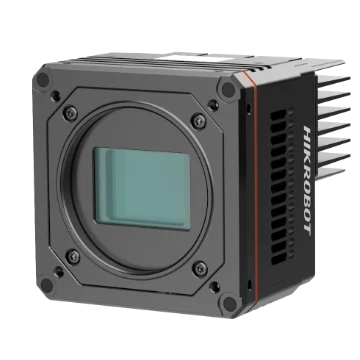

Hikrobot HIK-C650-CCXP 65 MP CMOS CoaXPress industrial area scan camera
Model HIK-C650-CCXP
Hikrobot HIK-C650-CCXP 65 MP CMOS CoaXPress industrial area scan camera. Global-shutter CMOS with high dynamic range, good SNR and excellent image quality CXP-12 interface for data transmission
Features
- Global-shutter CMOS with high dynamic range, good SNR and excellent image quality
- CXP-12 interface for data transmission
- Low-power fanless design for stable on-the-fly capture
- Compatible with CoaXPress and the GenICam standard
Specifications
| Model | HIK-C650-CCXP |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | GMAX3775 |
| Pixel size | 3.2 µm × 3.2 µm |
| Sensor size | 29.9 mm x 22.4 mm |
| Resolution | 9344 × 7000 |
| Max. frame rate | 71 fps @9344 × 7000 Bayer RG 8 |
| Dynamic range | 66 dB |
| SNR | 40 dB |
| Gain | 1.25x |
| Exposure time | 12 μs ~ 10 s |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Bayer BG 8/10/12 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | CoaXPress with Micro-BNC interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power supply | 24 VDC, CXP-0 and CXP-1 connectors support PoCXP |
| Power consumption | 13.2 W@24 VDC |
| Lens mount | M58*0.75, flange back length 11.48 mm |
| Dimension | 84 mm x 84 mm × 92.5 mm |
| Weight | Approx. 650 g (1.4 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 with 8 GB memory or above |
| Compatibility | CoaXPress, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 1.01 kg |
