Lights

Red shadowless lights

Shadowless lights wrap the part in diffuse light from many angles, removing glare and shadows on shiny, textured or slightly curved parts such as PCBs, connectors and pins. Red light gives strong contrast on mono cameras, which are most sensitive in the red, and is the usual choice for general inspection, code reading and dark features on light parts.

All shadowless lights · Blue shadowless lights · Green shadowless lights · White shadowless lights · Infrared shadowless lights · UV shadowless lights

207 models Configure a system All lights

Products

									Compare
LS-SDL-0044Shadowless light source	Red, Green, Blue, White	24 V	620-630 nm	520-530 nm	-	-	$219.00	Ships in 2-3 weeks	Compare LS-SDL-0044
LS-SDL-0043Shadowless light source	Red, Green, Blue, White	24 V	620-630 nm	520-530 nm	-	-	$179.00	Ships in 2-3 weeks	Compare LS-SDL-0043
LS-SDL-003194 mm Multi-direction shadowless light	Red, Green, Blue, White	24 V	-	-	94 mm	5.8W/7.2W	$389.00	Ships in 2-3 weeks	Compare LS-SDL-0031
LS-SDL-003064 mm Multi-direction shadowless light	Red, Green, Blue, White	24 V	-	-	64 mm	4.4W/5.8W	$229.00	Ships in 2-3 weeks	Compare LS-SDL-0030
LS-SDL-0028340 x 130 mm Arch shadowless light	Red, Green, Blue, White	24 V	-	-	340 x 130 mm	34.6W/46.1W	$1,859.00	Ships in 2-3 weeks	Compare LS-SDL-0028
LS-SDL-0027145 x 277 mm Arch shadowless light	Red, Green, Blue, White	24 V	-	-	145 x 277 mm	28.8W/34.6W	$1,359.00	Ships in 2-3 weeks	Compare LS-SDL-0027
LS-SDL-0024260 x 70 mm Arch shadowless light	Red, Green, Blue, White	24 V	-	-	260 x 70 mm	26.9W/34.6W	$1,219.00	Ships in 2-3 weeks	Compare LS-SDL-0024
LS-SDL-0023220 x 25 mm Arch shadowless light	Red, Green, Blue, White	24 V	-	-	220 x 25 mm	-	$949.00	Ships in 2-3 weeks	Compare LS-SDL-0023
LS-SDL-0026204 x 110 mm Arch shadowless light	Red, Green, Blue, White	24 V	-	-	204 x 110 mm	17.3W/23.1W	$879.00	Ships in 2-3 weeks	Compare LS-SDL-0026
LS-SDL-0021143 x 95 mm Arch shadowless light	Red, Green, Blue, White	24 V	-	-	143 x 95 mm	15.4W/17.3W	$559.00	Ships in 2-3 weeks	Compare LS-SDL-0021
LS-SDL-0020125 x 70 mm Arch shadowless light	Red, Green, Blue, White	24 V	-	-	125 x 70 mm	15.4W/17.3W	$469.00	Ships in 2-3 weeks	Compare LS-SDL-0020
LS-SDL-001990 x 70 mm Arch shadowless light	Red, Green, Blue, White	24 V	-	-	90 x 70 mm	9.6W/11.6W	$389.00	Ships in 2-3 weeks	Compare LS-SDL-0019

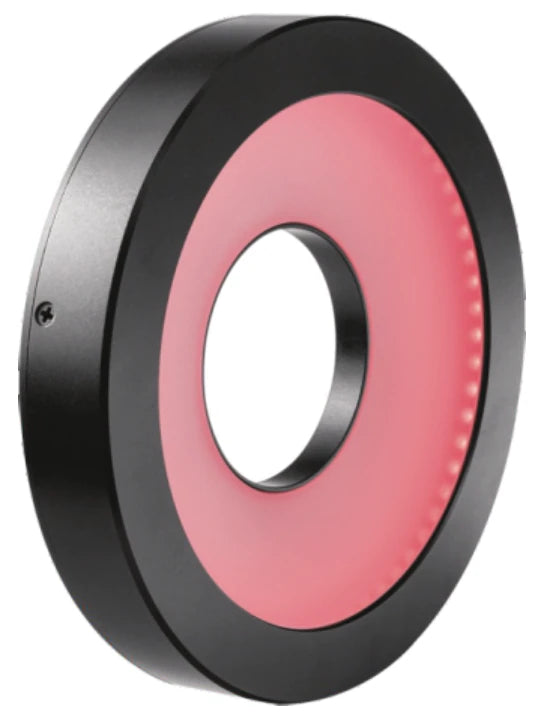

LS-SDL-0191150 mm OD Ring Shadowless Light	Red, Green, Blue, White	24 V	-	-	-	20.2 W	$499.00	Ships in 2-3 weeks	Compare LS-SDL-0191
LS-SDL-0190120 mm OD Ring Shadowless Light	Red, Green, Blue, White	24 V	-	-	-	12.7 W	$429.00	Ships in 2-3 weeks	Compare LS-SDL-0190
LS-SDL-0189100 mm OD Ring Shadowless Light	Red, Green, Blue, White	24 V	-	-	-	9.7 W	$389.00	Ships in 2-3 weeks	Compare LS-SDL-0189
LS-SDL-018874 mm OD Ring Shadowless Light	Red, Green, Blue, White	24 V	-	-	-	6.3 W	$279.00	Ships in 2-3 weeks	Compare LS-SDL-0188
LS-SDL-018748 mm OD Ring Shadowless Light	Red, Green, Blue, White	24 V	-	-	-	3.8 W	$199.00	Ships in 2-3 weeks	Compare LS-SDL-0187
LS-SDL-0186300 x 200 mm Square Flat Shadowless Light	Red, Green, Blue, White	24 V	-	-	-	26 W	$849.00	Ships in 2-3 weeks	Compare LS-SDL-0186
LS-SDL-0185200 x 120 mm Square Flat Shadowless Light	Red, Green, Blue, White	24 V	-	-	-	19 W	$839.00	Ships in 2-3 weeks	Compare LS-SDL-0185
LS-SDL-0184120 mm Square Flat Shadowless Light	Red, Green, Blue, White	24 V	-	-	-	10 W	$449.00	Ships in 2-3 weeks	Compare LS-SDL-0184
LS-SDL-018396 mm Square Flat Shadowless Light	Red, Green, Blue, White	24 V	-	-	-	6 W	$389.00	Ships in 2-3 weeks	Compare LS-SDL-0183
LS-SDL-018275 mm Square Flat Shadowless Light	Red, Green, Blue, White	24 V	-	-	-	5.5 W	$259.00	Ships in 2-3 weeks	Compare LS-SDL-0182
LS-SDL-018148 mm Square Flat Shadowless Light	Red, Green, Blue, White	24 V	-	-	-	3.5 W	$179.00	Ships in 2-3 weeks	Compare LS-SDL-0181
LS-SDL-018032 mm Square Flat Shadowless Light	Red, Green, Blue, White	24 V	-	-	-	3.5 W	$139.00	Ships in 2-3 weeks	Compare LS-SDL-0180
