LS-SDL-0187 3D render

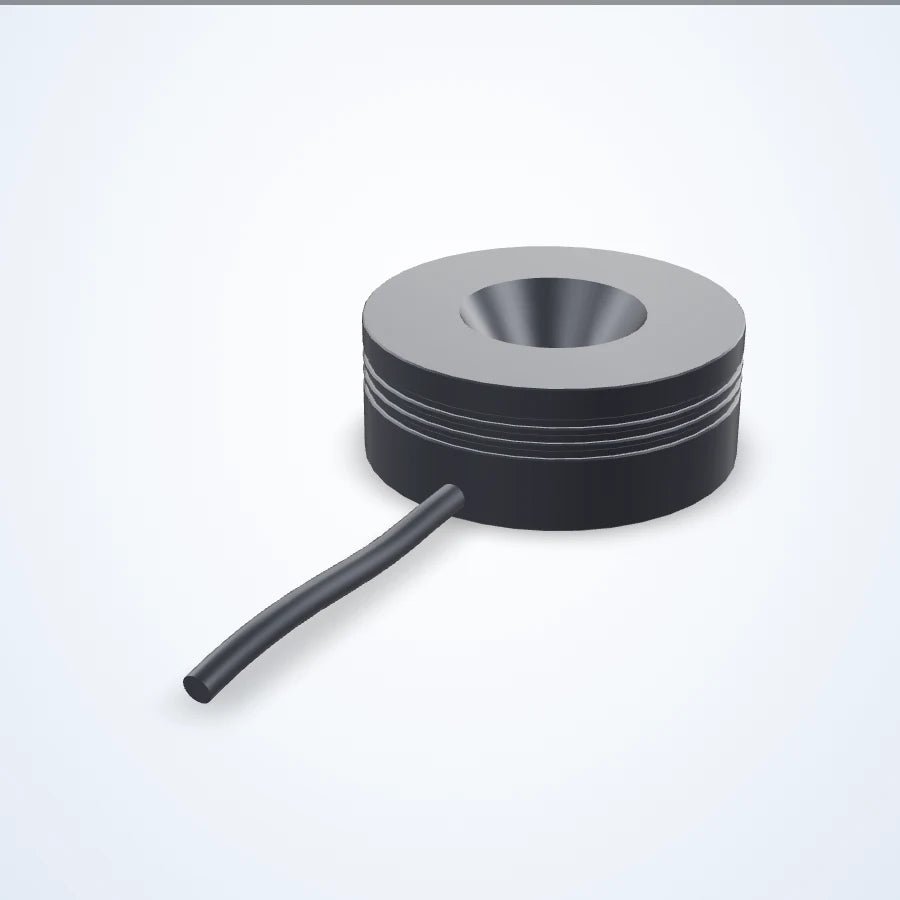

  • LS-SDL-0187 3D render

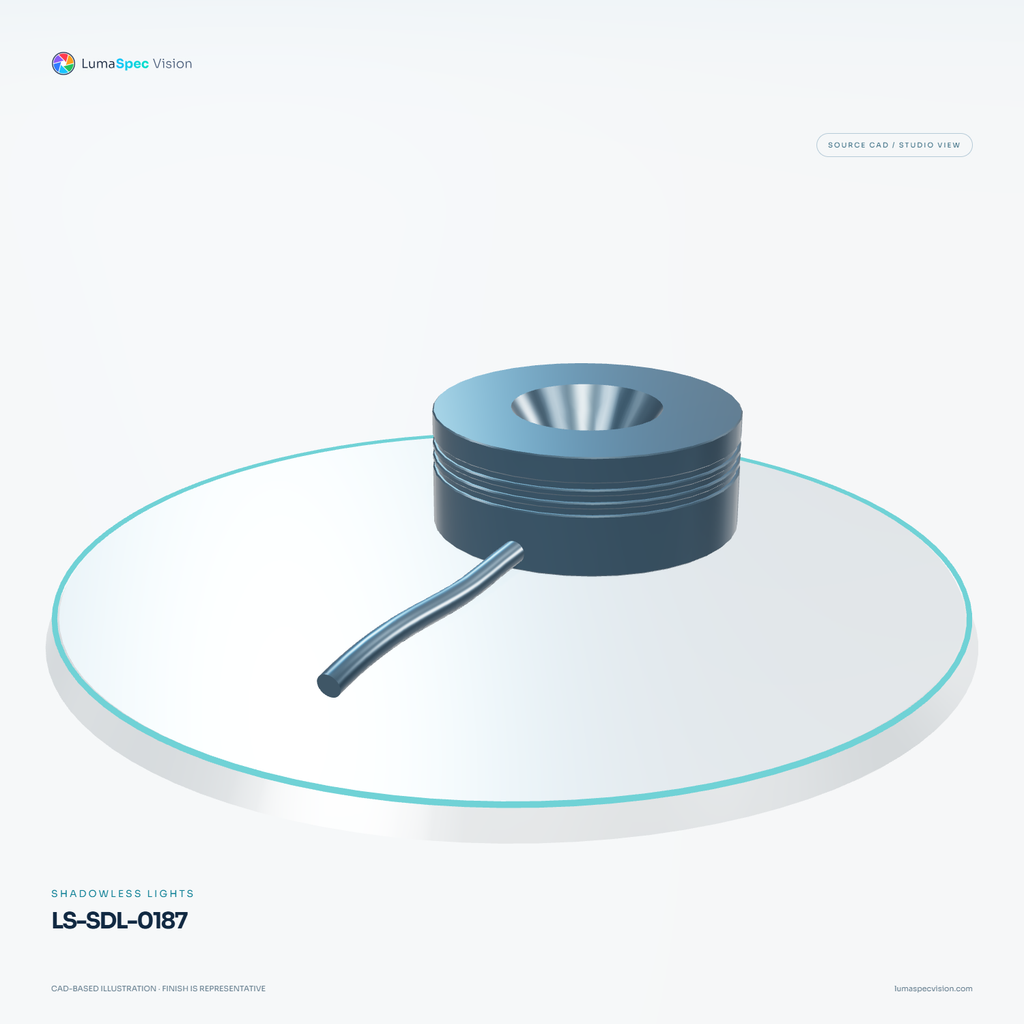

  • LS-SDL-0187 — Shadowless lights, 3D view 1. CAD-based illustration; finish is representative.

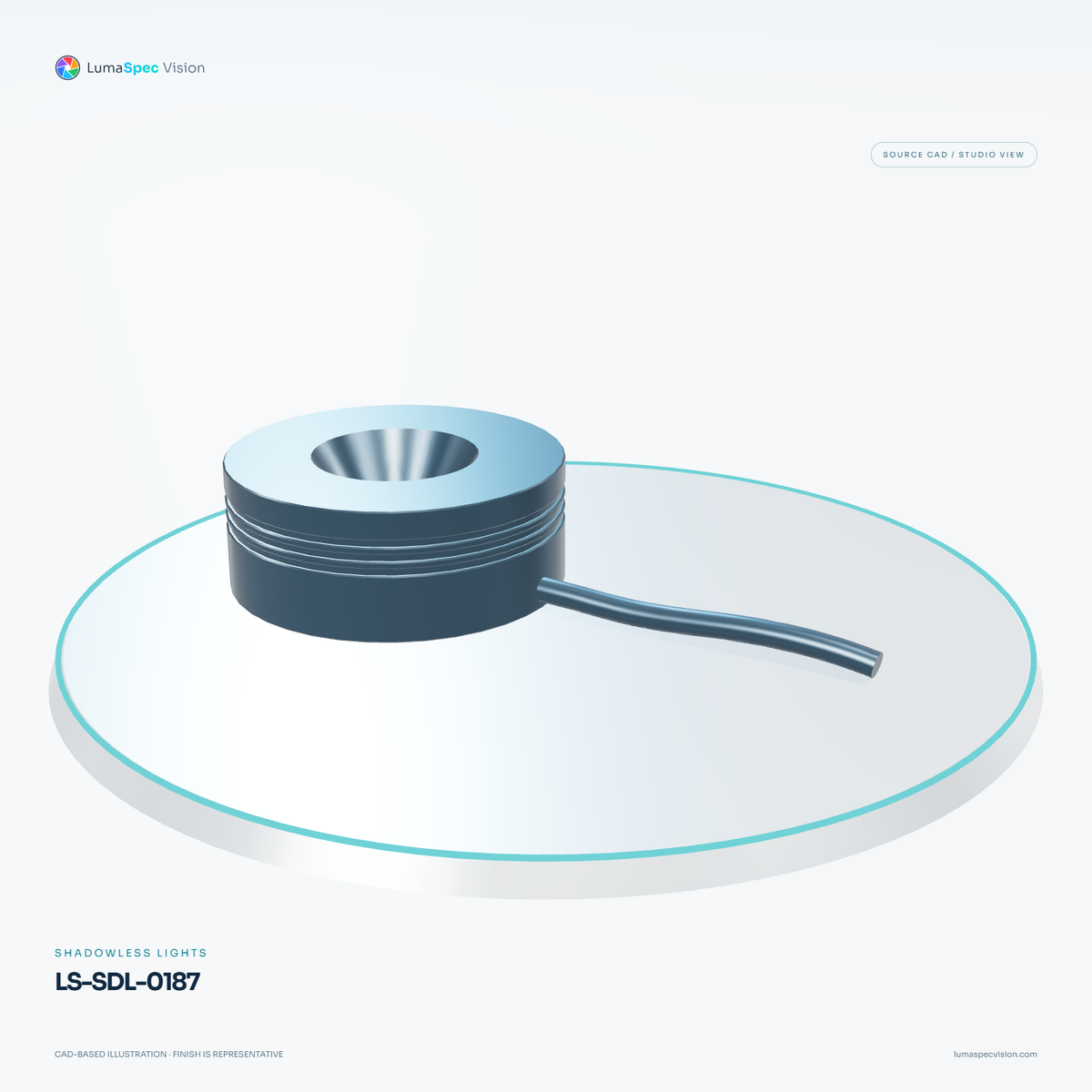

  • LS-SDL-0187 — Shadowless lights, 3D view 2. CAD-based illustration; finish is representative.

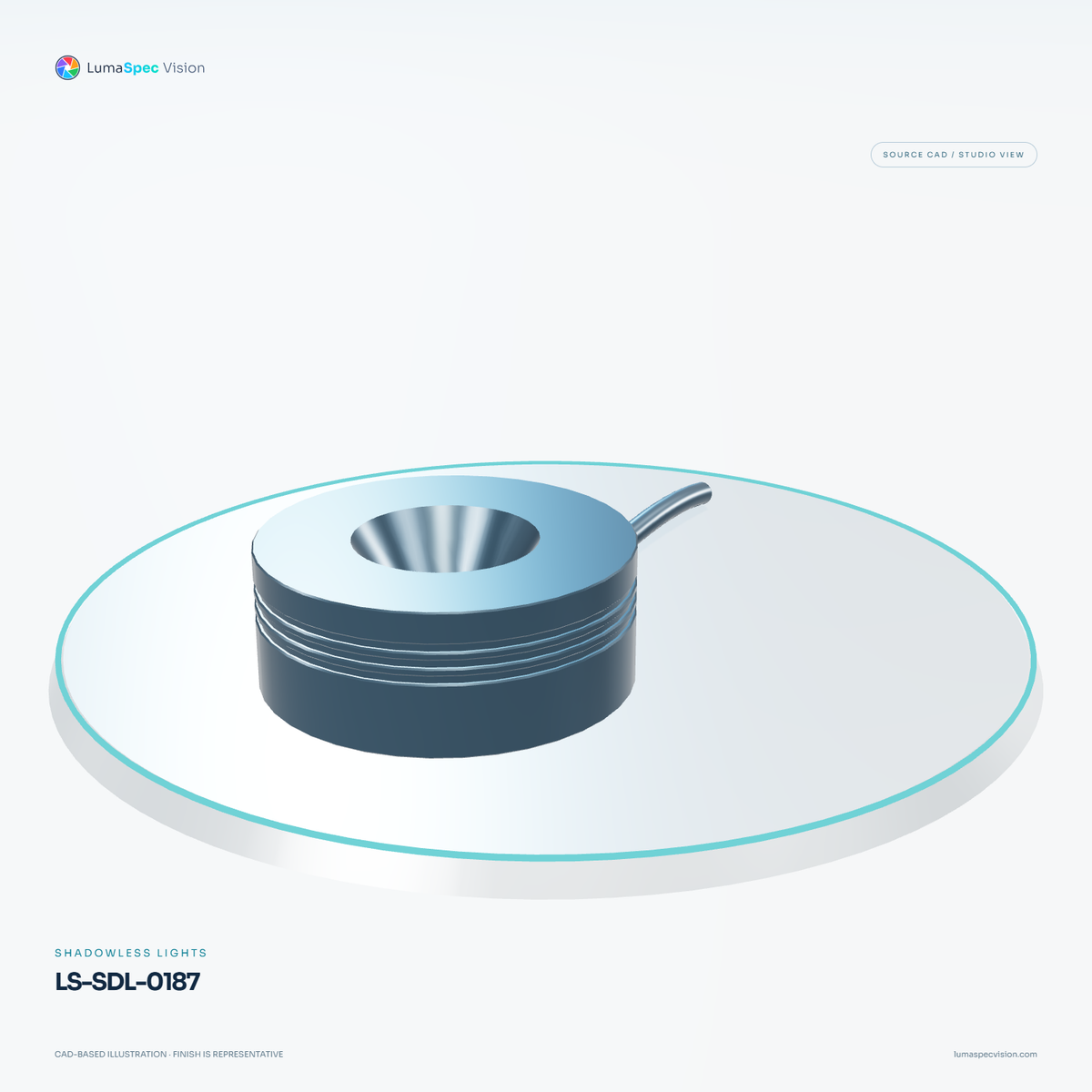

  • LS-SDL-0187 — Shadowless lights, 3D view 3. CAD-based illustration; finish is representative.

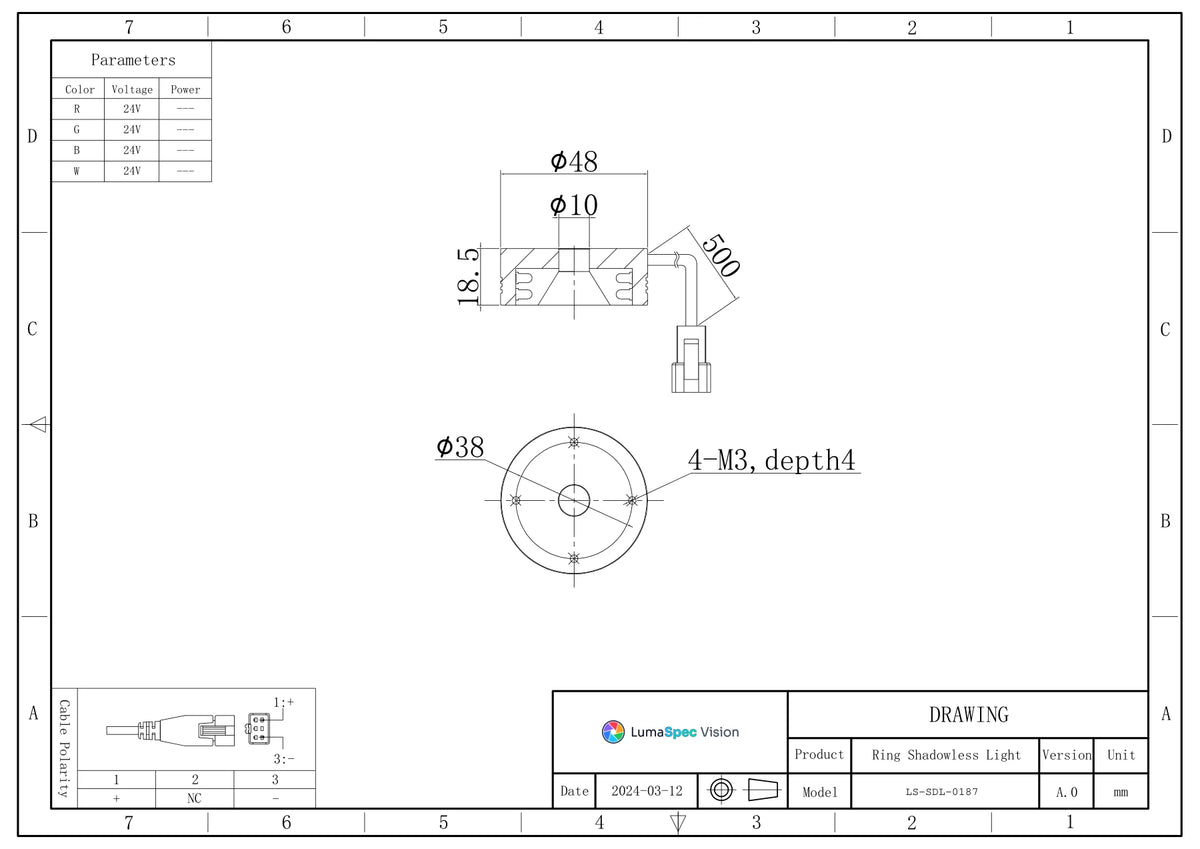

  • LS-SDL-0187 dimensions (mm)

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Shadowless lights

48 mm OD Ring Shadowless Light (LS-SDL-0187)

Model LS-SDL-0187

  • ColourRed, Green, Blue, White
  • Voltage24 V
  • Power3.8 W
  • Power R2.2 W
$199.00

Ships in 2-3 weeks

0.2 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

48 mm OD Ring Shadowless Light (LS-SDL-0187)LS-SDL-0187

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

48 mm OD Ring Shadowless Light. Ring shadowless light that eliminates reflective interference and provides high-brightness, high-uniformity diffuse illumination.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SDL-0187
OD x ID x H (mm)48x10x18.5

Interfaces and I/O

Cable lead (mm, per drawings)500

Light

ColoursRed, Green, Blue, White

Electrical

Voltage (V)24
Power R (W)2.2
Power W/B/G (W)3.8

Mechanical

Shipping weight (estimated)0.20 kg

Mounting and drawing data

drawing: 4-M3 depth 4 on dia 38

LS-SDL-0187

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library

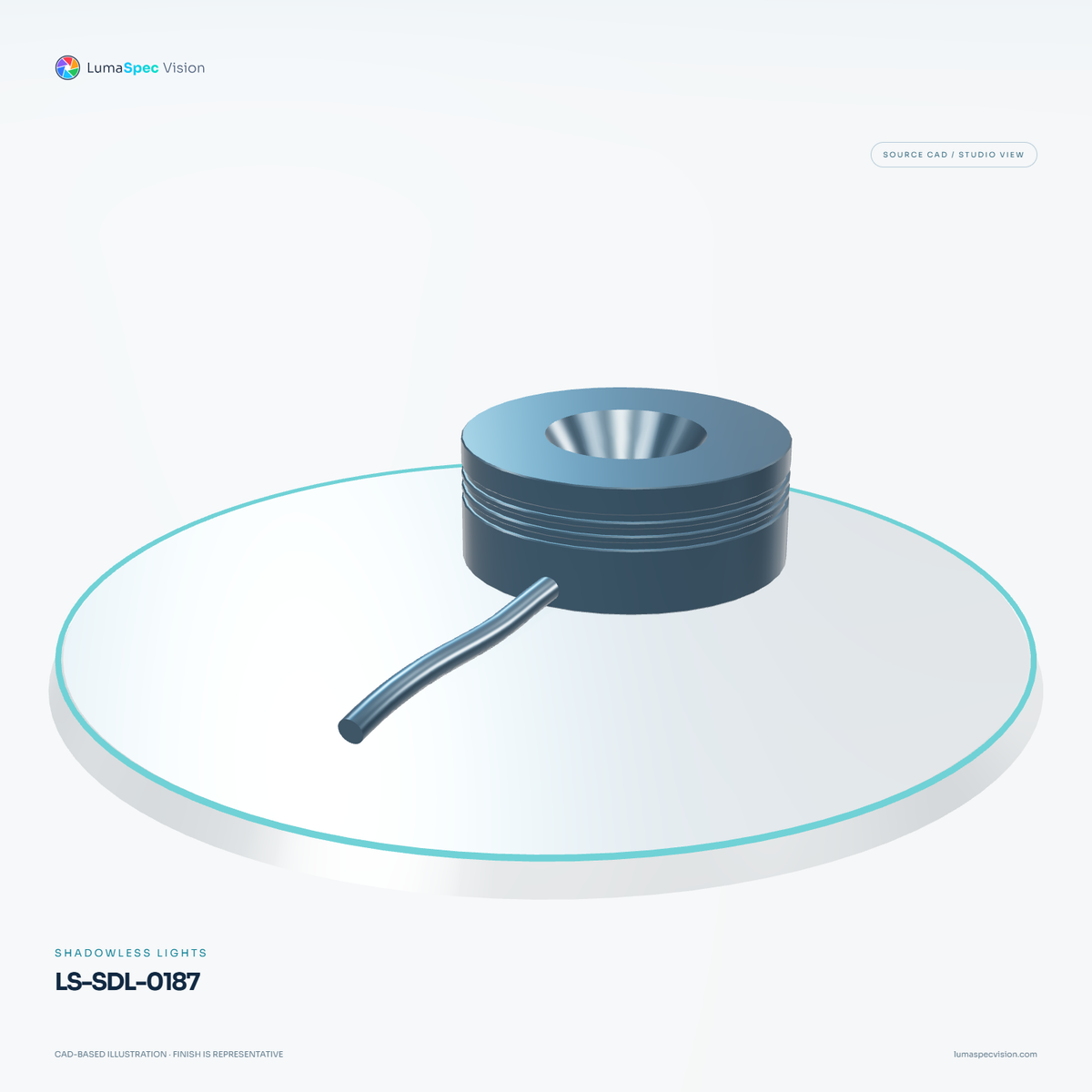

LS-SDL-0187 — Shadowless lights, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

OD x ID x H (mm)
48x10x18.5
Voltage (V)
24
Power R (W)
2.2
Power W/B/G (W)
3.8

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the Ring shadowless light (LS-SDL-S34) series

See all 5 models
ModelSize / key dataPriceAvailabilityLink
LS-SDL-0188 74 mm OD $279.00 Ships in 2-3 weeks View
LS-SDL-0189 100 mm OD $389.00 Ships in 2-3 weeks View
LS-SDL-0190 120 mm OD $429.00 Ships in 2-3 weeks View
LS-SDL-0191 150 mm OD $499.00 Ships in 2-3 weeks View
