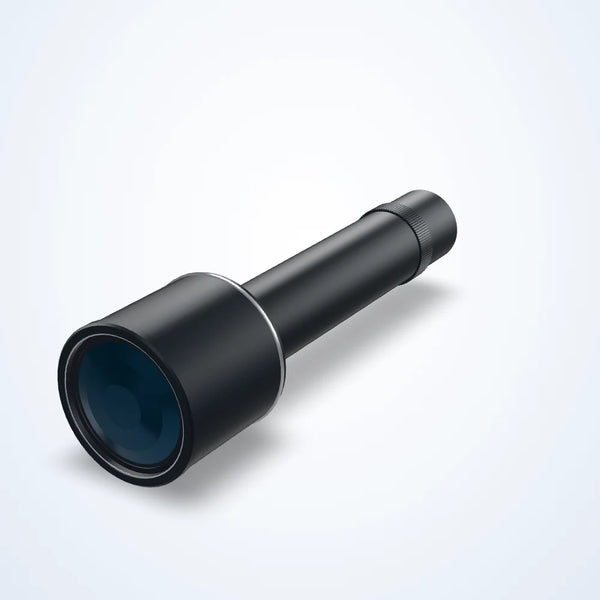

0.345x telecentric lens, 1.1"
LS-TCL-1089
- Magnification 0.345x
- Mount C-mount
- Sensor 1.1"
$808.00
Ships in 3-4 weeks
Lenses
Object-side telecentric lenses
Select object-space telecentric opticsBrowse lenses cataloged as object-side telecentric. Compare their measurement field, sensor format, magnification and working distance alongside the separate bi-telecentric range.
Products

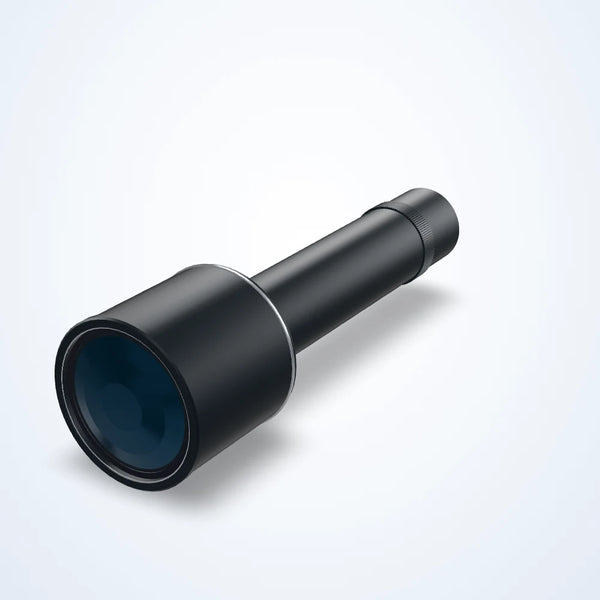

0.275x telecentric lens, 1.1"
LS-TCL-1086
- Magnification 0.275x
- Mount C-mount
- Sensor 1.1"
$808.00
Ships in 3-4 weeks
0.246x telecentric lens, 1.1"
LS-TCL-1084
- Magnification 0.246x
- Mount C-mount
- Sensor 1.1"
$808.00
Ships in 3-4 weeks
0.23x telecentric lens, 1.1"
LS-TCL-1082
- Magnification 0.23x
- Mount C-mount
- Sensor 1.1"
$808.00
Ships in 3-4 weeks
0.22x telecentric lens, 1.1"
LS-TCL-1081
- Magnification 0.22x
- Mount C-mount
- Sensor 1.1"
$808.00
Ships in 3-4 weeks
0.55x telecentric lens, 1.1", 0.55x Coaxial
LS-TCL-1097
- Magnification 0.55x
- Mount C-mount
- Sensor 1.1"
$715.00
Ships in 3-4 weeks

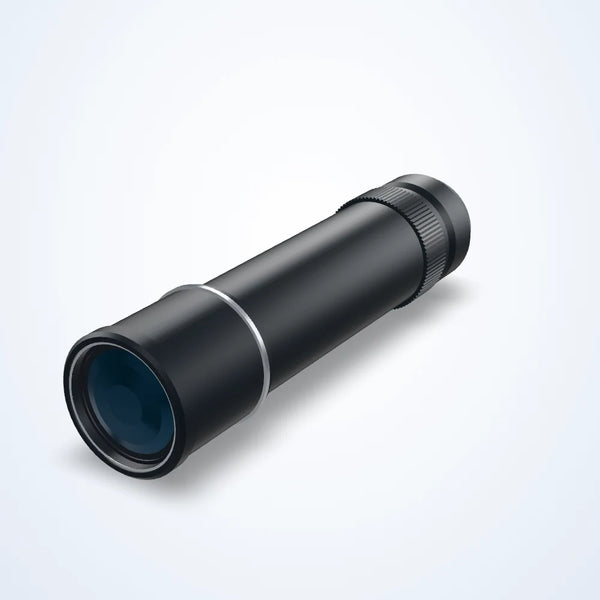

0.8x telecentric lens, 1.1", C-mount
LS-TCL-1102
- Magnification 0.8x
- Mount C-mount
- Sensor 1.1"
$700.00
Ships in 3-4 weeks

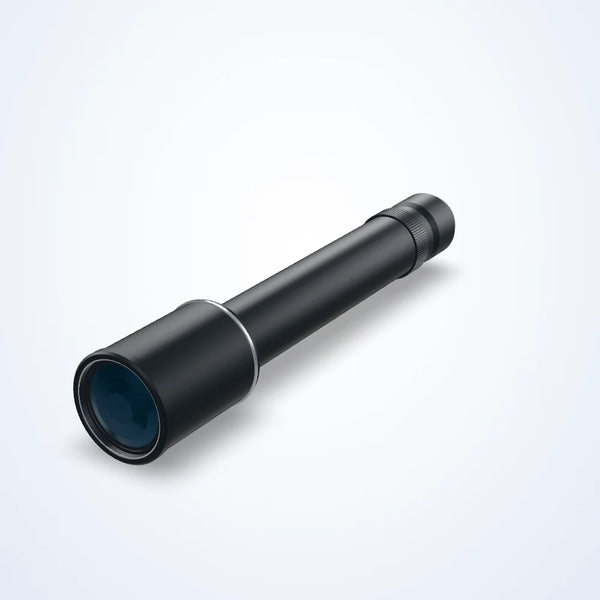

0.55x telecentric lens, 1.1"
LS-TCL-1096
- Magnification 0.55x
- Mount C-mount
- Sensor 1.1"
$670.00
Ships in 3-4 weeks

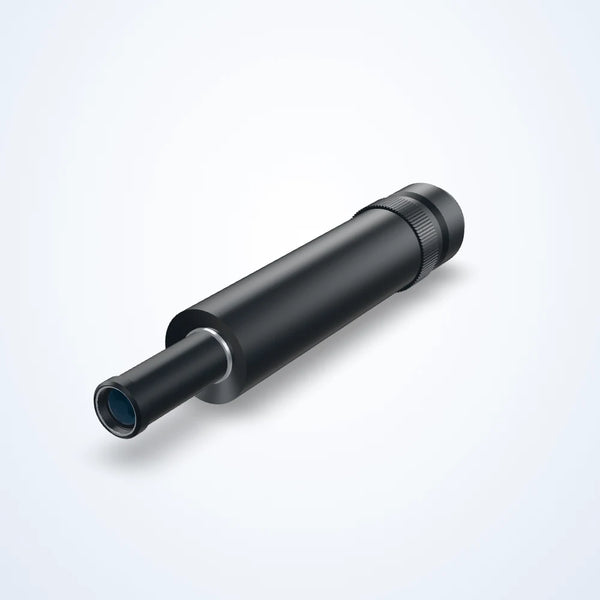

3x telecentric lens, 1.1", C-mount
LS-TCL-1115
- Magnification 3x
- Mount C-mount
- Sensor 1.1"
$620.00
Ships in 3-4 weeks

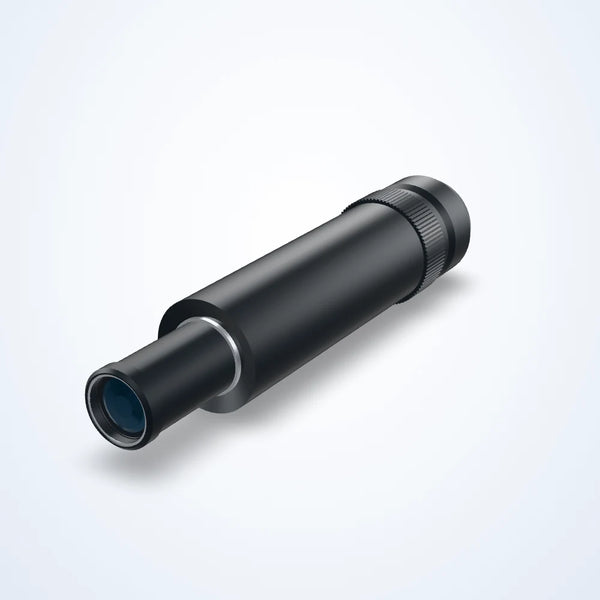

2x telecentric lens, 1.1", C-mount
LS-TCL-1110
- Magnification 2x
- Mount C-mount
- Sensor 1.1"
$620.00
Ships in 3-4 weeks

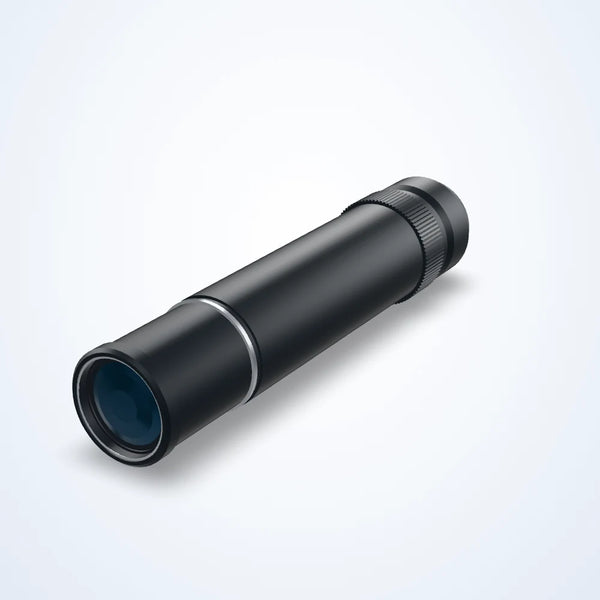

1x telecentric lens, 1.1", C-mount
LS-TCL-1103
- Magnification 1x
- Mount C-mount
- Sensor 1.1"
$620.00
Ships in 3-4 weeks
0.46x telecentric lens, 1", 0.46x Coaxial
LS-TCL-1064
- Magnification 0.46x
- Mount C-mount
- Sensor 1"
$750.00
Ships in 3-4 weeks
0.5x telecentric lens, 1", with coaxial light
LS-TCL-1067
- Magnification 0.5x
- Mount C-mount
- Sensor 1"
$715.00
Ships in 3-4 weeks
0.46x telecentric lens, 1"
LS-TCL-1063
- Magnification 0.46x
- Mount C-mount
- Sensor 1"
$700.00
Ships in 3-4 weeks

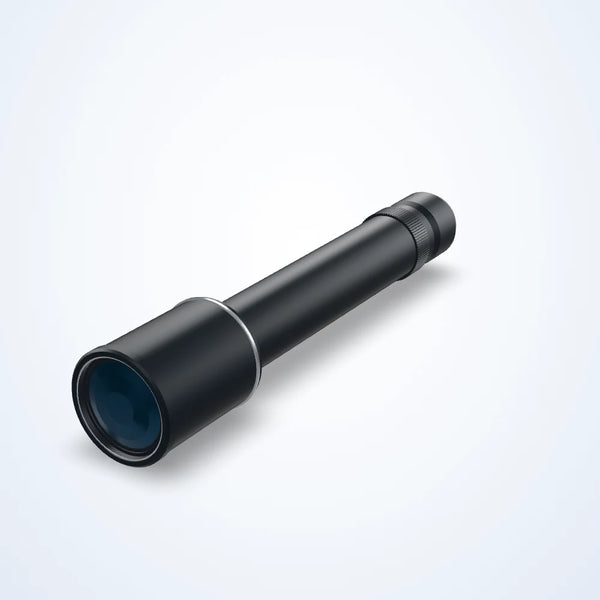

0.5x telecentric lens, 1"
LS-TCL-1066
- Magnification 0.5x
- Mount C-mount
- Sensor 1"
$670.00
Ships in 3-4 weeks
0.8x telecentric lens, WD 130 mm, Coaxial, Variable Iris
LS-TCL-0946
- Magnification 0.8x
- Mount C-mount
- Sensor 2/3"
$355.00
Ships in 3-4 weeks
0.8x telecentric lens, WD 130 mm, Coaxial
LS-TCL-0945
- Magnification 0.8x
- Mount C-mount
- Sensor 2/3"
$355.00
Ships in 3-4 weeks
0.7x telecentric lens, WD 145 mm, Coaxial, Variable Iris
LS-TCL-0933
- Magnification 0.7x
- Mount C-mount
- Sensor 2/3"
$355.00
Ships in 3-4 weeks

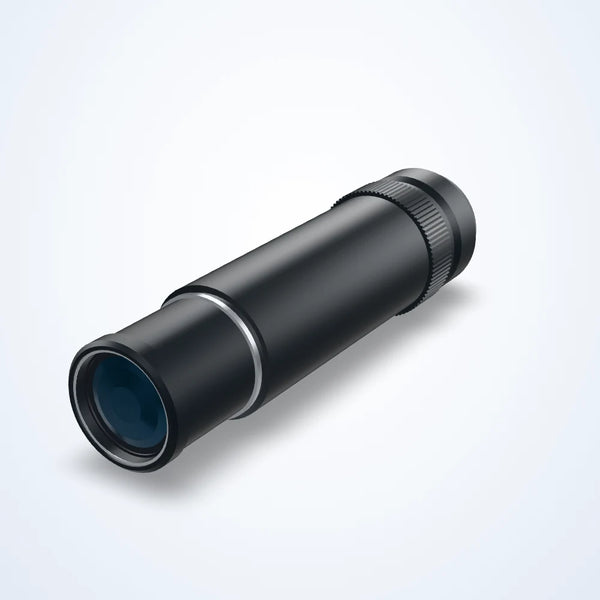

0.7x telecentric lens, WD 145 mm, Coaxial
LS-TCL-0932
- Magnification 0.7x
- Mount C-mount
- Sensor 2/3"
$355.00
Ships in 3-4 weeks
0.8x telecentric lens, WD 130 mm, Variable Iris
LS-TCL-0944
- Magnification 0.8x
- Mount C-mount
- Sensor 2/3"
$345.00
Ships in 3-4 weeks
0.8x telecentric lens, WD 130 mm
LS-TCL-0943
- Magnification 0.8x
- Mount C-mount
- Sensor 2/3"
$345.00
Ships in 3-4 weeks
0.7x telecentric lens, WD 145 mm, Variable Iris
LS-TCL-0931
- Magnification 0.7x
- Mount C-mount
- Sensor 2/3"
$345.00
Ships in 3-4 weeks
0.7x telecentric lens, WD 145 mm
LS-TCL-0930
- Magnification 0.7x
- Mount C-mount
- Sensor 2/3"
$345.00
Ships in 3-4 weeks
0.5x telecentric lens
LS-TCL-0915
- Magnification 0.5x
- Mount C-mount
- Sensor 2/3"
$310.00
Ships in 3-4 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-TCL-10890.345x telecentric lens, 1.1"
| 0.345x | C-mount | 1.1" | 220±3 mm | F8 | 10 MP | $808.00 | Ships in 3-4 weeks | |
 LS-TCL-10860.275x telecentric lens, 1.1"
| 0.275x | C-mount | 1.1" | 220±3 mm | F8 | 10 MP | $808.00 | Ships in 3-4 weeks | |
 LS-TCL-10840.246x telecentric lens, 1.1"
| 0.246x | C-mount | 1.1" | 220±3 mm | F8 | 10 MP | $808.00 | Ships in 3-4 weeks | |
|
LS-TCL-10820.23x telecentric lens, 1.1"
| 0.23x | C-mount | 1.1" | 220±3 mm | F8 | 10 MP | $808.00 | Ships in 3-4 weeks | |
|
LS-TCL-10810.22x telecentric lens, 1.1"
| 0.22x | C-mount | 1.1" | 220±3 mm | F8 | 10 MP | $808.00 | Ships in 3-4 weeks | |
 LS-TCL-10970.55x telecentric lens, 1.1", 0.55x Coaxial
| 0.55x | C-mount | 1.1" | 220±3 mm | F10.1 | 10 MP | $715.00 | Ships in 3-4 weeks | |
 LS-TCL-11020.8x telecentric lens, 1.1", C-mount
| 0.8x | C-mount | 1.1" | 110±2 mm | F7.9 | 10 MP | $700.00 | Ships in 3-4 weeks | |
 LS-TCL-10960.55x telecentric lens, 1.1"
| 0.55x | C-mount | 1.1" | 220±3 mm | F10.1 | 10 MP | $670.00 | Ships in 3-4 weeks | |
 LS-TCL-11153x telecentric lens, 1.1", C-mount
| 3x | C-mount | 1.1" | 110±2 mm | F20.1 | 10 MP | $620.00 | Ships in 3-4 weeks | |
 LS-TCL-11102x telecentric lens, 1.1", C-mount
| 2x | C-mount | 1.1" | 110±2 mm | F13.5 | 10 MP | $620.00 | Ships in 3-4 weeks | |
 LS-TCL-11031x telecentric lens, 1.1", C-mount
| 1x | C-mount | 1.1" | 110±2 mm | F7 | 10 MP | $620.00 | Ships in 3-4 weeks | |
 LS-TCL-10640.46x telecentric lens, 1", 0.46x Coaxial
| 0.46x | C-mount | 1" | 220±3 mm | F11.6 | 10 MP | $750.00 | Ships in 3-4 weeks | |
 LS-TCL-10670.5x telecentric lens, 1", with coaxial light
| 0.5x | C-mount | 1" | 220±3 mm | F8 | 10 MP | $715.00 | Ships in 3-4 weeks | |
 LS-TCL-10630.46x telecentric lens, 1"
| 0.46x | C-mount | 1" | 220±3 mm | F11.6 | 10 MP | $700.00 | Ships in 3-4 weeks | |
 LS-TCL-10660.5x telecentric lens, 1"
| 0.5x | C-mount | 1" | 220±3 mm | F8 | 10 MP | $670.00 | Ships in 3-4 weeks | |
 LS-TCL-09460.8x telecentric lens, WD 130 mm, Coaxial, Variable Iris
| 0.8x | C-mount | 2/3" | 130±2 mm | F12.6 | 10.6 μm | $355.00 | Ships in 3-4 weeks | |
|
LS-TCL-09450.8x telecentric lens, WD 130 mm, Coaxial
| 0.8x | C-mount | 2/3" | 130±2 mm | F12.6 | 10.6 μm | $355.00 | Ships in 3-4 weeks | |
 LS-TCL-09330.7x telecentric lens, WD 145 mm, Coaxial, Variable Iris
| 0.7x | C-mount | 2/3" | 145±2 mm | F16.8 | 16.2 μm | $355.00 | Ships in 3-4 weeks | |
 LS-TCL-09320.7x telecentric lens, WD 145 mm, Coaxial
| 0.7x | C-mount | 2/3" | 145±2 mm | F16.8 | 16.2 μm | $355.00 | Ships in 3-4 weeks | |
|
LS-TCL-09440.8x telecentric lens, WD 130 mm, Variable Iris
| 0.8x | C-mount | 2/3" | 130±2 mm | F12.6 | 10.6 μm | $345.00 | Ships in 3-4 weeks | |
|
LS-TCL-09430.8x telecentric lens, WD 130 mm
| 0.8x | C-mount | 2/3" | 130±2 mm | F12.6 | 10.6 μm | $345.00 | Ships in 3-4 weeks | |
 LS-TCL-09310.7x telecentric lens, WD 145 mm, Variable Iris
| 0.7x | C-mount | 2/3" | 145±2 mm | F16.8 | 16.2 μm | $345.00 | Ships in 3-4 weeks | |
 LS-TCL-09300.7x telecentric lens, WD 145 mm
| 0.7x | C-mount | 2/3" | 145±2 mm | F16.8 | 16.2 μm | $345.00 | Ships in 3-4 weeks | |
 LS-TCL-09150.5x telecentric lens
| 0.5x | C-mount | 2/3" | 65 mm | - | - | $310.00 | Ships in 3-4 weeks |
Select object-space telecentric optics
Object-side telecentric optics control perspective on the object side. They are a distinct class from bi-telecentric designs. Choose a lens using the required object field and the model specifications, then verify the complete camera, illumination and mechanical arrangement for the inspection task.
- Match the required field with sensor size and magnification, allowing room for part-position variation instead of framing the nominal part edge exactly.
- Check the published working distance, depth of field, resolution and distortion at the intended aperture. Do not substitute a family description for the selected model data.
- Compare object-side and bi-telecentric designs when sensor placement and measurement stability are critical, and verify the mount and body clearance before installation.
