Lights

Backlights with a center hole

Separate aperture size from panel size

Compare backlights cataloged with a center opening for inspection layouts that need access through the panel. Check the actual aperture drawing, emitting area and rear clearances for each model.

All Backlights

147 models Configure a systemAll lights
Backlights with a center hole

73-96 of 147 models

Products

Compare
LS-BKL-0687150 x 150 mm Hole side backlight Blue, White24 VWith centre hole3-pin flat--$389.00 Ships in 2-3 weeks
LS-BKL-1415Flat Backlight with Center Hole, 620 x 620 mm, White White24 VDC--620 mm × 620 mm696 mm × 650 mm × 25 mm$2,339.00 Ships in 2-3 weeks
LS-BKL-1414Flat Backlight with Center Hole, 620 x 620 mm, Red Red24 VDC--620 mm × 620 mm696 mm × 650 mm × 25 mm$2,339.00 Ships in 2-3 weeks
LS-BKL-1413Flat Backlight with Center Hole, 620 x 620 mm, Blue Blue24 VDC--620 mm × 620 mm696 mm × 650 mm × 25 mm$2,339.00 Ships in 2-3 weeks
LS-BKL-1412Flat Backlight with Center Hole, 600 x 400 mm, White White24 VDC--600 mm × 400 mm676 mm × 430 mm × 25 mm$1,549.00 Ships in 2-3 weeks
LS-BKL-1411Flat Backlight with Center Hole, 600 x 400 mm, Red Red24 VDC--600 mm × 400 mm676 mm × 430 mm × 25 mm$1,549.00 Ships in 2-3 weeks
LS-BKL-1410Flat Backlight with Center Hole, 600 x 400 mm, Blue Blue24 VDC--600 mm × 400 mm676 mm × 430 mm × 25 mm$1,549.00 Ships in 2-3 weeks
LS-BKL-1409Flat Backlight with Center Hole, 450 x 320 mm, White, 218.3 W White24 VDC--450 mm × 320 mm488 mm × 335 mm × 21 mm$1,379.00 Ships in 2-3 weeks
LS-BKL-1407Flat Backlight with Center Hole, 450 x 320 mm, Red Red24 VDC--450 mm × 320 mm488 mm × 335 mm × 21 mm$1,379.00 Ships in 2-3 weeks
LS-BKL-1406Flat Backlight with Center Hole, 450 x 320 mm, Blue Blue24 VDC--450 mm × 320 mm488 mm × 335 mm × 21 mm$1,379.00 Ships in 2-3 weeks
LS-BKL-1405Flat Backlight with Center Hole, 400 x 300 mm, White, 92.1 W White24 VDC--400 mm × 300 mm438 mm × 315 mm × 21 mm$1,209.00 Ships in 2-3 weeks

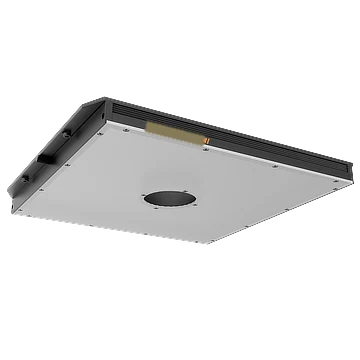

LS-BKL-1403Flat Backlight with Center Hole, 400 x 300 mm, Red Red24 VDC--400 mm × 300 mm438 mm × 315 mm × 21 mm$1,209.00 Ships in 2-3 weeks
LS-BKL-1402Flat Backlight with Center Hole, 400 x 300 mm, Blue Blue24 VDC--400 mm × 300 mm438 mm × 315 mm × 21 mm$1,209.00 Ships in 2-3 weeks
LS-BKL-1401Flat Backlight with Center Hole, 300 x 300 mm, White White24 VDC--300 mm × 300 mm338 mm × 315 mm × 21 mm$969.00 Ships in 2-3 weeks
LS-BKL-1400Flat Backlight with Center Hole, 300 x 300 mm, Red Red24 VDC--300 mm × 300 mm338 mm × 315 mm × 21 mm$969.00 Ships in 2-3 weeks
LS-BKL-1399Flat Backlight with Center Hole, 300 x 300 mm, Blue Blue24 VDC--300 mm × 300 mm338 mm × 315 mm × 21 mm$969.00 Ships in 2-3 weeks
LS-BKL-1393Flat Backlight with Center Hole, 250 x 250 mm, White White24 VDC--250 mm × 250 mm282 mm × 263 mm × 19 mm$739.00 Ships in 2-3 weeks
LS-BKL-1392Flat Backlight with Center Hole, 250 x 250 mm, Red, 42.5 W Red24 VDC--250 mm × 250 mm282 mm × 263 mm × 19 mm$739.00 Ships in 2-3 weeks
LS-BKL-1389Flat Backlight with Center Hole, 250 x 250 mm, Blue Blue24 VDC--250 mm × 250 mm282 mm × 263 mm × 19 mm$739.00 Ships in 2-3 weeks
LS-BKL-1398Flat Backlight with Center Hole, 300 x 200 mm, White, 54.6 W White24 VDC--300 mm × 200 mm332 mm × 213 mm × 19 mm$719.00 Ships in 2-3 weeks
LS-BKL-1394Flat Backlight with Center Hole, 300 x 200 mm, Blue Blue24 VDC--300 mm × 200 mm332 mm × 213 mm × 19 mm$719.00 Ships in 2-3 weeks
LS-BKL-1395Flat Backlight with Center Hole, 300 x 200 mm, IR 940 nm Infrared24 VDC--300 mm × 200 mm332 mm × 213 mm × 19 mm$719.00 Ships in 2-3 weeks
LS-BKL-1388Flat Backlight with Center Hole, 250 x 200 mm, White, 58.6 W White24 VDC--250 mm × 200 mm282 mm × 213 mm × 19 mm$639.00 Ships in 2-3 weeks
LS-BKL-1386Flat Backlight with Center Hole, 250 x 200 mm, Red Red24 VDC--250 mm × 200 mm282 mm × 213 mm × 19 mm$639.00 Ships in 2-3 weeks

Separate aperture size from panel size

A panel with a center opening has several independent dimensions: the outside body, illuminated area, opening and mounting features. Choose the light around the fixture and imaging task, not the outside width alone. Use a model drawing whenever an opening or rear component must clear a physical part.

  • Verify the printed clear aperture shape and dimensions. Do not estimate an opening from a family photo or substitute the outside panel dimensions for it.
  • Check the emitting area around the opening and the camera field needed for the inspection, including shadows or obstructions caused by the fixture.
  • Review body depth, rear features, mounting holes, cable exit and electrical requirements together before committing to a mechanical interface.

Configure a system · Browse all Backlights
