1.5x telecentric lenses

How to choose a telecentric lens

Telecentric and bi-telecentric lenses keep magnification constant through the depth of field, so parts measure the same size wherever they sit. At 1.5x a 2/3-inch sensor (8.8 x 6.6 mm) sees a field of view of about 5.9 x 4.4 mm, and a telecentric lens keeps that size constant through its depth of field.

All telecentric lenses · 0.1x telecentric lenses · 0.2x telecentric lenses · 0.3x telecentric lenses · 0.4x telecentric lenses · 0.5x telecentric lenses · 0.6x telecentric lenses · 0.7x telecentric lenses · 0.8x telecentric lenses · 1x telecentric lenses · 2x telecentric lenses · 2.5x telecentric lenses · 3x telecentric lenses · 4x telecentric lenses · 6x telecentric lenses

103 models Configure a systemAll lenses
1.5x telecentric lenses

73-96 of 103 models

Products

Compare
LS-TCL-23061.5x, WD 150 mm, 1/3", C-mount telecentric lens 1.5xC-mount1/3"150 mmF27.1-$1,299.00 Ships in 2-3 weeks
LS-TCL-22301.5x, WD 110 mm, 1.1", C-mount telecentric lens with coaxial light 1.5xC-mount1.1"110 mmF10-$1,559.00 Ships in 2-3 weeks
LS-TCL-22291.5x, WD 110 mm, 1.1", C-mount telecentric lens 1.5xC-mount1.1"110 mmF10-$1,559.00 Ships in 2-3 weeks
LS-TCL-21591.5x, WD 63 mm, 2/3", C-mount telecentric lens 1.5xC-mount2/3"63±1 mmF7.5No$1,239.00 Ships in 2-3 weeks
LS-TCL-21581.5x, WD 63 mm, 2/3", C-mount telecentric lens, coaxial port 1.5xC-mount2/3"63±1 mmF7.5Yes$1,239.00 Ships in 2-3 weeks
LS-TCL-21571.5x, WD 63 mm, 2/3", C-mount telecentric lens, coaxial port, built-in light source 1.5xC-mount2/3"63±1 mmF7.5Yes$1,239.00 Ships in 2-3 weeks
LS-TCL-21621.5x, WD 108 mm, 2/3", C-mount telecentric lens 1.5xC-mount2/3"108±2 mmF7.3-$1,239.00 Ships in 2-3 weeks
LS-TCL-21611.5x, WD 108 mm, 2/3", C-mount telecentric lens, coaxial port 1.5xC-mount2/3"108±2 mmF7.3-$1,239.00 Ships in 2-3 weeks
LS-TCL-21601.5x, WD 108 mm, 2/3", C-mount telecentric lens, coaxial port, built-in light source 1.5xC-mount2/3"108±2 mmF7.3-$1,239.00 Ships in 2-3 weeks
LS-TCL-21111.5x, WD 110 mm, 2/3", C-mount telecentric lens, WD 110±2, length 128.9 mm 1.5xC-mount2/3"110±2 mmF10No$1,239.00 Ships in 2-3 weeks

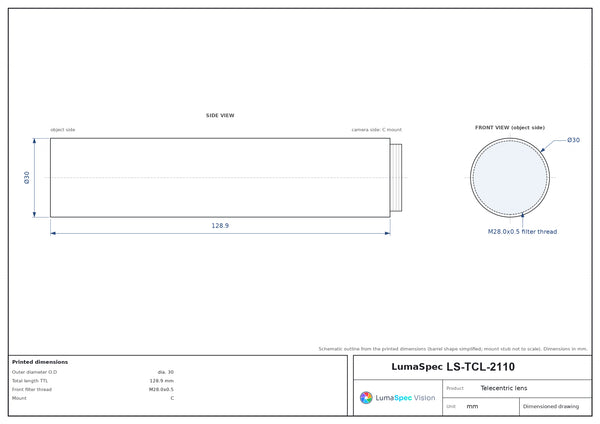

LS-TCL-21101.5x, WD 110 mm, 2/3", C-mount telecentric lens, WD 110±2, length 128.9 mm, coaxial port 1.5xC-mount2/3"110±2 mmF10Yes$1,239.00 Ships in 2-3 weeks
LS-TCL-20521.5x, WD 85 mm, 2/3", C-mount telecentric lens, length 175.8 mm 1.5xC-mount2/3"85 mmF15.9-$1,239.00 Ships in 2-3 weeks

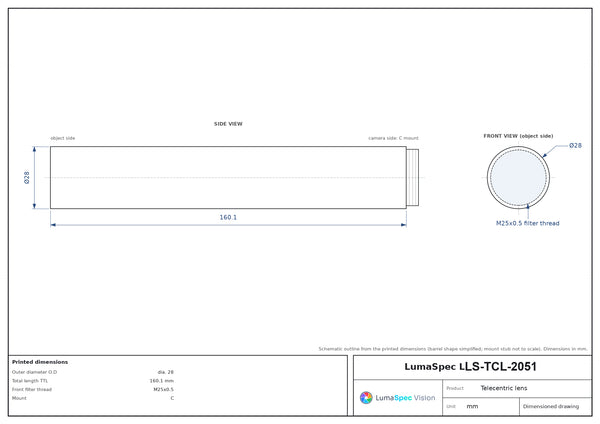

LS-TCL-20511.5x, WD 85 mm, 2/3", C-mount telecentric lens, length 160.1 mm 1.5xC-mount2/3"85 mmF15.9-$1,239.00 Ships in 2-3 weeks
LS-TCL-20501.5x, WD 65 mm, 2/3", C-mount telecentric lens, coaxial port 1.5xC-mount2/3"65 mmF12.5Yes$1,239.00 Ships in 2-3 weeks

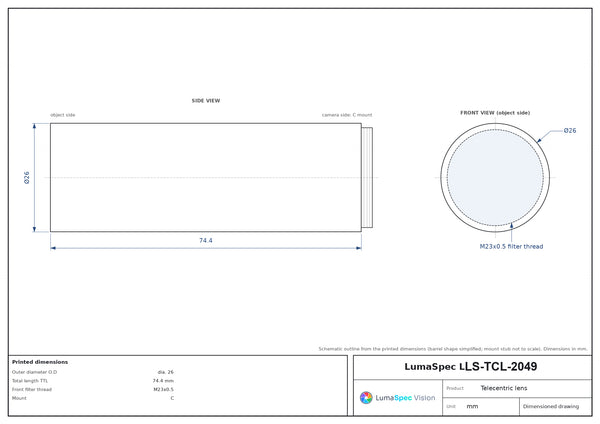

LS-TCL-20491.5x, WD 65 mm, 2/3", C-mount telecentric lens 1.5xC-mount2/3"65 mmF12.5No$1,239.00 Ships in 2-3 weeks

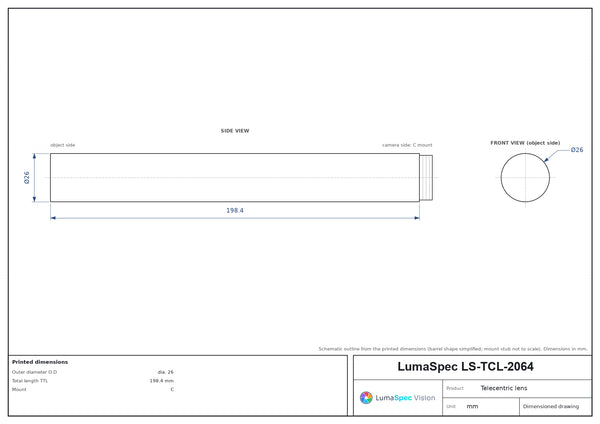

LS-TCL-20641.5x, WD 410 mm, 2/3", C-mount telecentric lens, length 198.4 mm 1.5xC-mount2/3"410 mmF40-$1,239.00 Ships in 2-3 weeks
LS-TCL-20631.5x, WD 410 mm, 2/3", C-mount telecentric lens, length 194.1 mm 1.5xC-mount2/3"410 mmF40-$1,239.00 Ships in 2-3 weeks

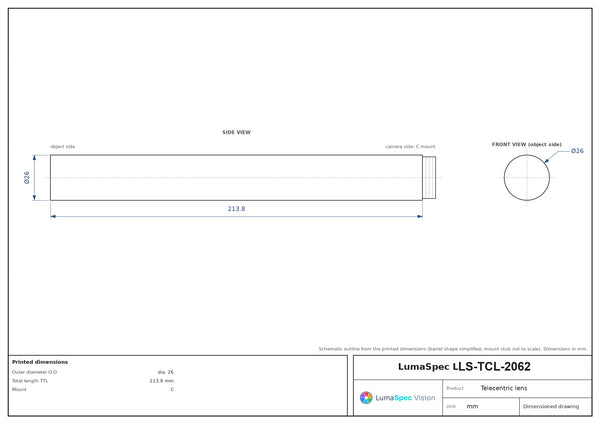

LS-TCL-20621.5x, WD 330 mm, 2/3", C-mount telecentric lens, length 213.8 mm 1.5xC-mount2/3"330 mmF30.2-$1,239.00 Ships in 2-3 weeks

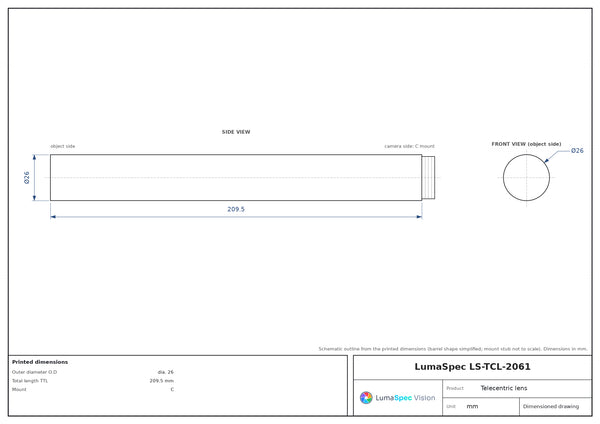

LS-TCL-20611.5x, WD 330 mm, 2/3", C-mount telecentric lens, length 209.5 mm 1.5xC-mount2/3"330 mmF30.2-$1,239.00 Ships in 2-3 weeks

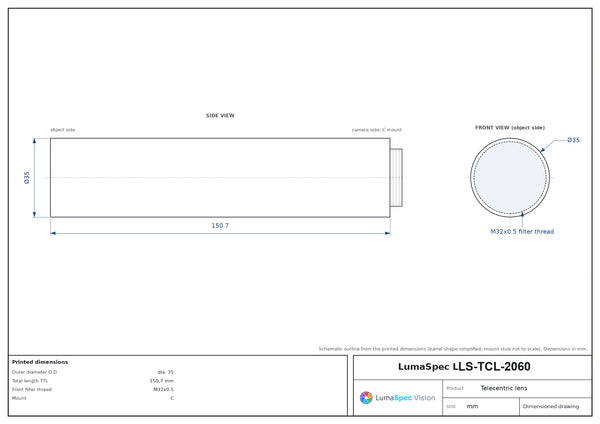

LS-TCL-20601.5x, WD 230 mm, 2/3", C-mount telecentric lens, coaxial port 1.5xC-mount2/3"230 mmF29.9Yes$1,239.00 Ships in 2-3 weeks
LS-TCL-20591.5x, WD 230 mm, 2/3", C-mount telecentric lens 1.5xC-mount2/3"230 mmF29.9No$1,239.00 Ships in 2-3 weeks
LS-TCL-20581.5x, WD 200 mm, 2/3", C-mount telecentric lens 1.5xC-mount2/3"200 mmF16-$1,239.00 Ships in 2-3 weeks
LS-TCL-20571.5x, WD 200 mm, 2/3", C-mount telecentric lens 1.5xC-mount2/3"200 mmF16-$1,239.00 Ships in 2-3 weeks

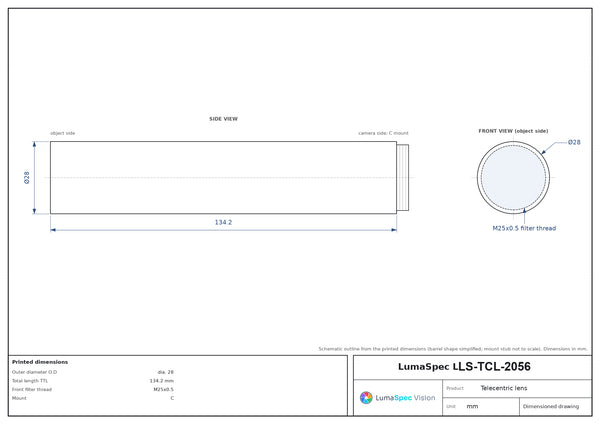

LS-TCL-20561.5x, WD 135 mm, 2/3", C-mount telecentric lens, length 134.2 mm 1.5xC-mount2/3"135 mmF20.1-$1,239.00 Ships in 2-3 weeks
