Lenses

0.7x telecentric lenses

How to choose a telecentric lens

Telecentric and bi-telecentric lenses keep magnification constant through the depth of field, so parts measure the same size wherever they sit. At 0.7x a 2/3-inch sensor (8.8 x 6.6 mm) sees a field of view of about 12.6 x 9.4 mm, and a telecentric lens keeps that size constant through its depth of field.

All telecentric lenses · 0.1x telecentric lenses · 0.2x telecentric lenses · 0.3x telecentric lenses · 0.4x telecentric lenses · 0.5x telecentric lenses · 0.6x telecentric lenses · 0.8x telecentric lenses · 1x telecentric lenses · 1.5x telecentric lenses · 2x telecentric lenses · 2.5x telecentric lenses · 3x telecentric lenses · 4x telecentric lenses · 6x telecentric lenses

38 models Configure a systemAll lenses

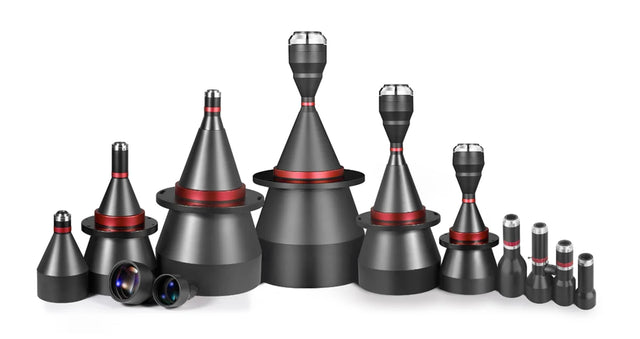

0.7x telecentric lenses

25-38 of 38 models

Products

Compare
LS-TCL-2856Megapixel telecentric lens, 0.7x, WD 145 mm, 2/3", C-mount, 114.7 mm long, no iris 0.7xC-mount2/3"145±2 mmF16.816.2 μm$1,089.00 Ships in 2-3 weeks
LS-TCL-2857Megapixel telecentric lens, 0.7x, WD 145 mm, 2/3", C-mount, 114.7 mm long, yes iris 0.7xC-mount2/3"145±2 mmF16.816.2 μm$1,089.00 Ships in 2-3 weeks

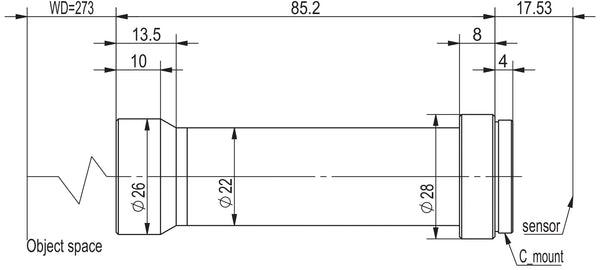

LS-TCL-2858Megapixel telecentric lens, 0.7x, WD 273 mm, 2/3", C-mount 0.7xC-mount2/3"273±3 mmF22.112.4 μm$1,089.00 Ships in 2-3 weeks

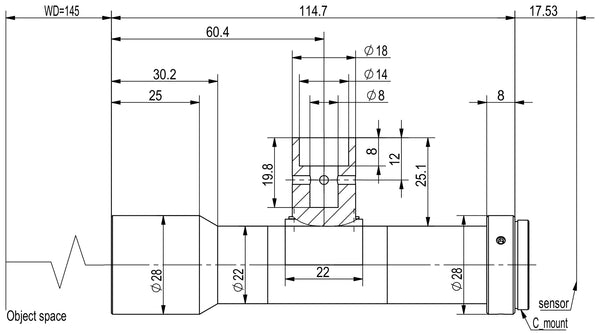

LS-TCL-2855Megapixel telecentric lens, 0.7x, WD 145 mm, 2/3", C-mount, 114.7 mm long, FOV 15.7 mm, no iris 0.7xC-mount2/3"145±2 mmF16.811.05 μm$1,089.00 Ships in 2-3 weeks

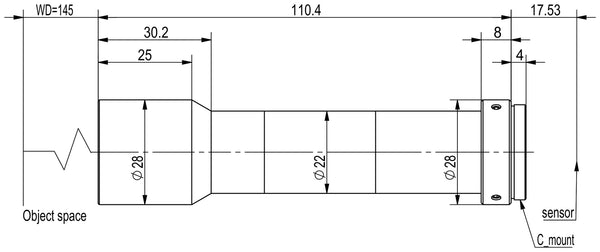

LS-TCL-2852Megapixel telecentric lens, 0.7x, WD 145 mm, 2/3", C-mount, 110.4 mm long, FOV 15.7 mm, no iris 0.7xC-mount2/3"145±2 mmF16.811.05 μm$1,089.00 Ships in 2-3 weeks

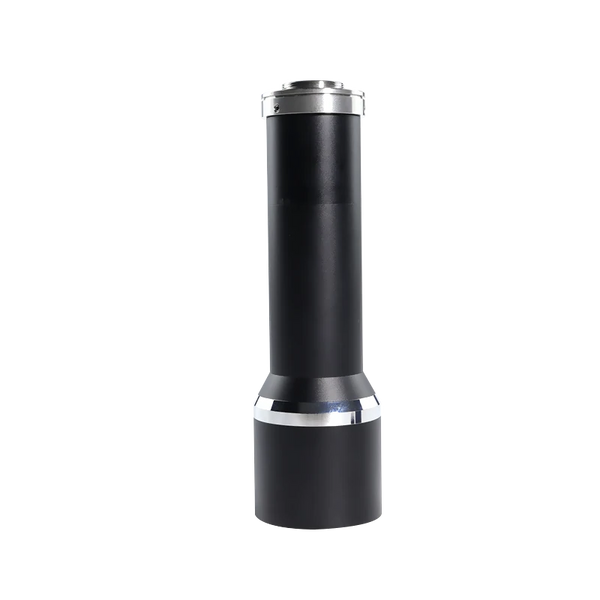

LS-TCL-2977Bi-telecentric lens for 1.1" sensor, 0.7x, WD 110 mm, C-mount, F7.5 0.7xC-mount1.1"110 mmF7.525 million pixels$1,269.00 Ships in 2-3 weeks
LS-TCL-22030.7x, WD 108 mm, 1", C-mount telecentric lens with coaxial light 0.7xC-mount1"108 mmF7-$1,329.00 Ships in 2-3 weeks
LS-TCL-22020.7x, WD 108 mm, 1", C-mount telecentric lens 0.7xC-mount1"108 mmF7-$1,329.00 Ships in 2-3 weeks
LS-TCL-20250.7x, WD 70 mm, 2/3", C-mount telecentric lens, coaxial port 0.7xC-mount2/3"70 mmF10-$1,169.00 Ships in 2-3 weeks
LS-TCL-20240.7x, WD 70 mm, 2/3", C-mount telecentric lens 0.7xC-mount2/3"70 mmF10-$1,169.00 Ships in 2-3 weeks
LS-TCL-20290.7x, WD 145 mm, 2/3", C-mount telecentric lens, length 110.4 mm, F13.4-32 0.7xC-mount2/3"145 mmF13.4-32-$1,169.00 Ships in 2-3 weeks
LS-TCL-20280.7x, WD 145 mm, 2/3", C-mount telecentric lens, length 114.7 mm, F13.4-32 0.7xC-mount2/3"145 mmF13.4-32-$1,169.00 Ships in 2-3 weeks
LS-TCL-20270.7x, WD 145 mm, 2/3", C-mount telecentric lens, length 114.7 mm, F16.8 0.7xC-mount2/3"145 mmF16.8-$1,169.00 Ships in 2-3 weeks
LS-TCL-20260.7x, WD 145 mm, 2/3", C-mount telecentric lens, length 110.4 mm, F16.8 0.7xC-mount2/3"145 mmF16.8-$1,169.00 Ships in 2-3 weeks
