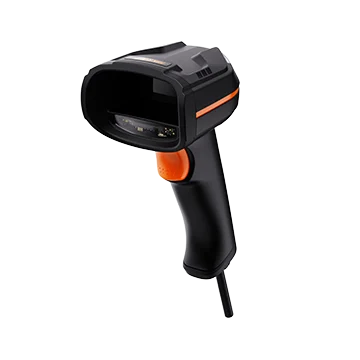

Hikrobot MV-SCA3000/SR/RNU General-purpose industrial wired handheld code reader
Model MV-SCA3000/SR/RNUHikrobot
- Resolution1280 × 1024
- SensorCMOS, global shutter
- InterfaceUSB2.0, DC terminal
- Speed50 fps
- Pixel size2.7 μm × 2.7 μm
- Focal length4.7 mm
$1,989.00
Ships in 2-3 weeks
0.32 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-SCA3000/SR/RNU General-purpose industrial wired handheld code reader. In-house high-performance barcode algorithm efficiently reads 1D and 2D codes in industrial applications Robust algorithm handles difficult codes that are dirty, damaged or low-contrast
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-SCA3000/SR/RNU |
|---|---|
| Brand | Hikrobot |
| Min. accuracy | 4 mil |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol contrast | 20 % |
| Prompt | LED indicator, buzzer, vibrator |
| Laser safety class | Laser 2 |
| Repetition rate | 50 HZ |
Optics
| Depth of field | Code 39(5 mil):40 mm ~ 160 mm; Code 128(10 mil):10 mm ~ 400 mm; Data Matrix(10 mil):30 mm ~ 200 mm; QR Code(15 mil):15 mm ~ 280 mm; QR Code(20 mil):20 mm ~ 370 mm |
|---|---|
| Field of view | Horizontal 40°, Vertical 34° |
| Focal length | 4.7 mm |
Sensor and imaging
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, UPCA, UPCE, etc.; 2D code: QR Code, Data Matrix, MicroQR, AZTEC; Stacked code: PDF417 |
|---|---|
| Max. frame rate | 50 fps |
| Sensor type | CMOS, global shutter |
| Pixel size | 2.7 μm × 2.7 μm |
| Sensor size | 1/4” |
| Resolution | 1280 × 1024 |
| Aiming system | Cross laser aiming |
Interfaces and I/O
| Communication protocol | SmartSDK, USB (HID/CDC) |
|---|---|
| Data interface | USB2.0, DC terminal |
| Client software | IDMVS |
Light
| Ambient illumination | 0 ~ 100000 lux |
|---|---|
| Light source | Red LED |
| Wavelength | 650 nm |
| Beam divergence angle | 14.5° |
Environment and compliance
| Ingress protection | IP42 |
|---|---|
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Certification | CE, KC |
Electrical
| Power supply | 5 VDC (USB); 12 to 24 VDC (DC terminal) |
|---|---|
| Max. power consumption | 1.5 W@5 VDC (USB); 1.8 W@12 VDC (DC terminal) |
| Maximum power | 1 mW |
Mechanical
| Lens mount | M5.8-Mount |
|---|---|

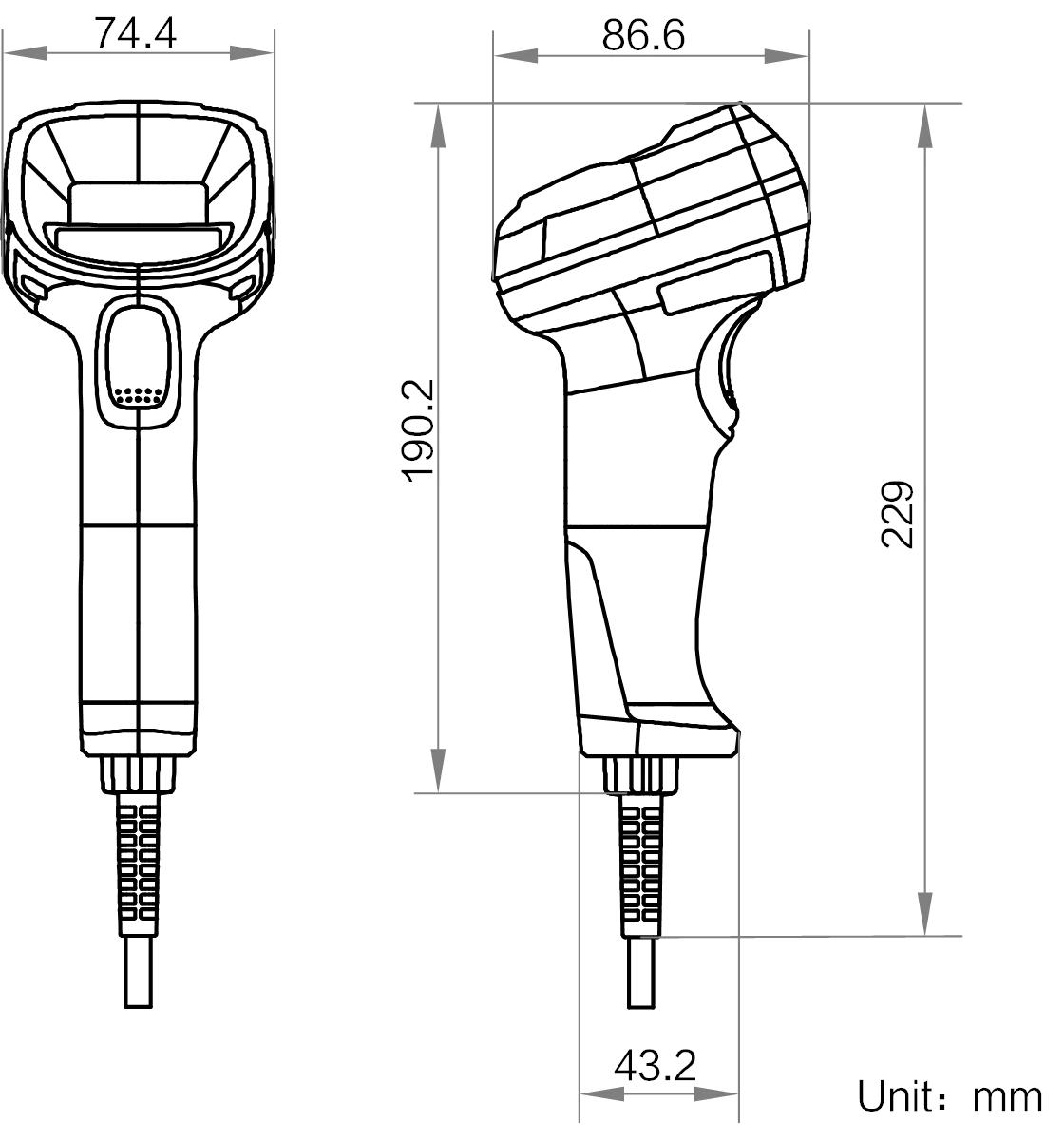

| Dimension | 74.4 mm × 86.6 mm × 190.2 mm |
| Weight | Approx. 160 g (0.4 lb.) |
| Drop height | 1.5 m, 50+ drops |
| Pulse width | 8 ms |
| Shipping weight (estimated) | 0.32 kg |
