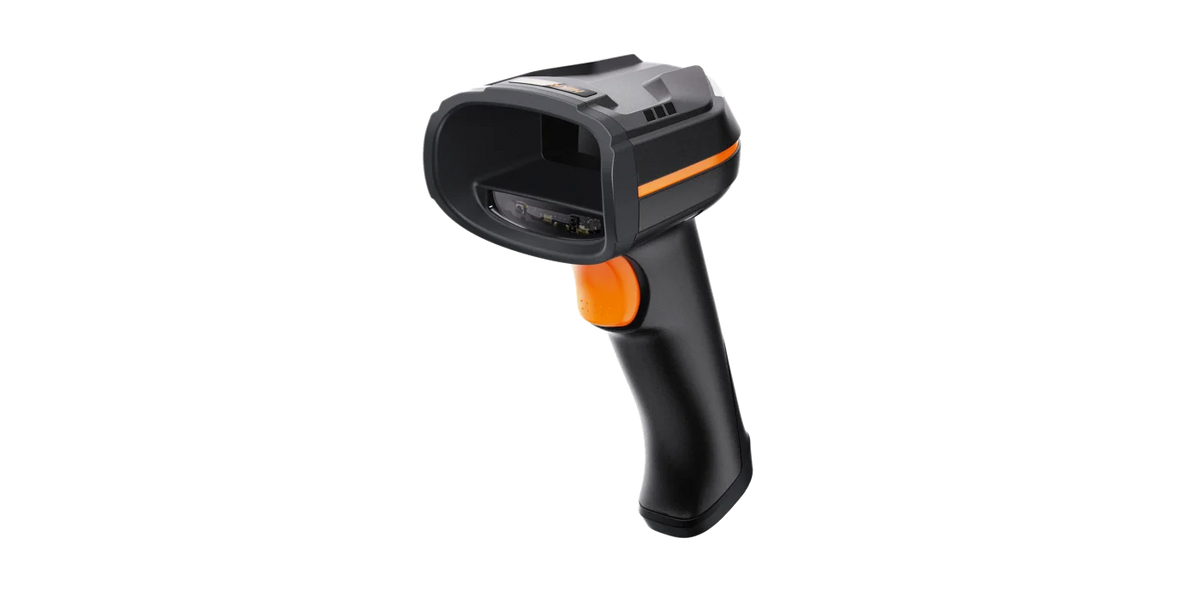

Hikrobot MV-IDH3000B/13SR/05RN Wireless Handheld Code Reader (No IBASE)

Handheld code readers

Hikrobot MV-IDH3000B/13NR/05RN Wireless Handheld Code Reader (No IBASE)

Model MV-IDH3000B/13NR/05RNHikrobot

Resolution1280 × 1024
SensorCMOS
Focal length4.7 mm
ConnectionWireless

$379.00

Ships in 2-3 weeks

0.42 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-IDH3000B/13NR/05RN Wireless Handheld Code Reader. Built-in code reading algorithm for decoding different types of 1D and 2D codes. Provides good robustness to read codes with spots, defects and low contrast ratio.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-IDH3000B/13NR/05RN
Brand	Hikrobot
Min. accuracy	3 mil
Detection angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol contrast	20%
Battery	3150 mAh
Charging time	Network-interface device: Shutdown mode: 12 VDC (12 V, 2 A): 3.5 h; USB-interface device: Shutdown mode: USB 2.0 (5 V, 500 mA): 8.5 h, USB 3.0 (5 V, 1 A): 8.5 h, 12 VDC (12 V, 2 A): 3.5 h
Endurance	13 h (interval scanning, once in 2 seconds)
Prompt	LED indicator, buzzer, vibrator
Static electricity resistant	± 16 kV (air discharge), ± 8 kV (contact discharge)
Laser safety class	Laser 2
Charging time (smart base)	Network-interface device: 4 h; USB-interface device: USB: 8.5 h

Optics

Depth of field	Code 128 (3 mil): 25 mm to 70 mm; Code 128 (10 mil): 10 mm to 170 mm; Code 39 (5 mil): 15 mm to 100 mm; Data Matrix (5 mil): 30 mm to 60 mm; Data Matrix (10 mil): 5 mm to 115 mm
Field of view	Horizontal 40°, vertical 34°
Focal length	4.7 mm

Sensor and imaging

Symbologies	1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE; 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, GS1-DM, GS1-QR, Han Xin; Stacked code: PDF417
Sensor type	CMOS
Resolution	1280 × 1024
Aiming system	Cross laser aiming

Interfaces and I/O

Communication mode	Bluetooth BT 5.0, BLE
Wireless range	100 m (open range)
Client software	IDMVS
Communication protocol	Network-interface device: SmartSDK, TCP Client, FTP, TCP Server, UDP, Serial (RS-232), Bluetooth; USB-interface device: SmartSDK, USB (HID/CDC), Bluetooth, Serial (RS-232)
Data interface	Network-interface device: Fast Ethernet (100 Mbit/s), RS-232, DC terminal; USB-interface device: USB 2.0, USB 3.0, RS-232, DC terminal1

Light

Ambient illumination	0 lux to 100000 lux
Light source	Red LED
Wavelength	650 nm

Environment and compliance

Ingress protection	IP52
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F); Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)
Humidity	20% RH to 80% RH (no condensation)
Certification	CE, KC
Humidity (smart base)	20% RH to 80% RH (no condensation)
Ingress protection (smart base)	IP40
Temperature (smart base)	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F); Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)

Electrical

Maximum power	1 mW
Power supply	Network-interface device: 12 VDC to 24 VDC; USB-interface device: USB: 5 VDC, DC terminal: 12 VDC to 24VDC
Current consumption	Network-interface device: 0.7 A (max.), 0.06 A (during standby); USB-interface device: USB 2.0: 1.5 A (max.), 0.14 A (during standby); DC terminal: 0.7 A (max.), 0.06 A (during standby)

Mechanical

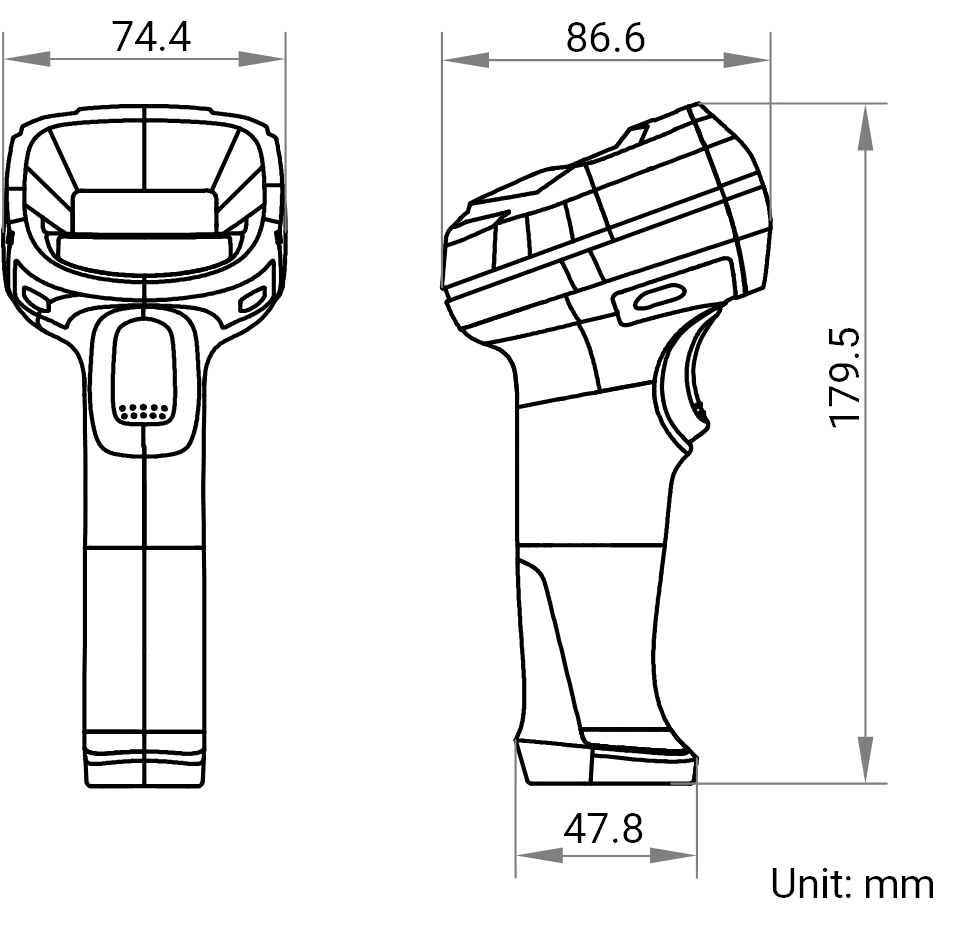

Dimension	74.4 mm × 86.6 mm × 179.5 mm (2.9" × 3.4" × 7.1")
Weight	Approx. 230 g (0.5 lb.)
Drop height	Dropping: 1.8 m, 50 times; Rolling: 0.5 m, 1200 times
Pulse width	8 ms
Dimension (smart base)	100.9 mm × 131.8 mm × 83.6 mm (4.0" × 5.2" × 3.3")
Weight (smart base)	Approx. 180 g (0.4 lb.)
Shipping weight (estimated)	0.42 kg

Downloads

Features

Built-in code reading algorithm for decoding different types of 1D and 2D codes.
Provides good robustness to read codes with spots, defects and low contrast ratio.
Supports continuous code reading, batch code reading for improving code reading efficiency.
Adopts Bluetooth 5.0 wireless technology to provide convenient and efficient operations.
With smart bases, parameter configuration and device management via IDMVS client software are supported.
