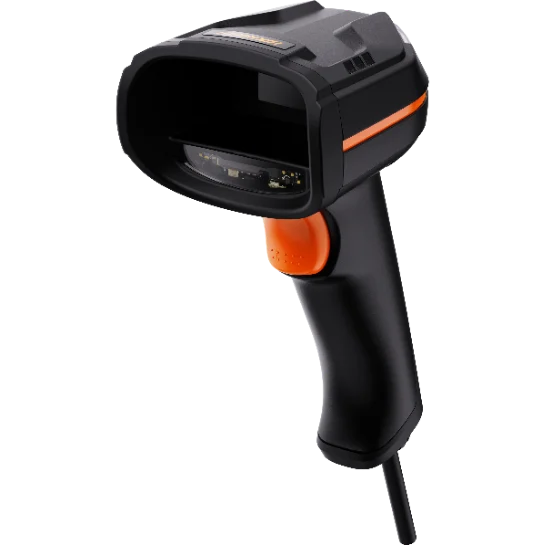

Hikrobot MV-IDH3000/13SR/05RN/U USB Handheld Code Reader

Handheld code readers

Hikrobot MV-IDH3000/13NR/05RN/U USB Handheld Code Reader

Model MV-IDH3000/13NR/05RN/UHikrobot

Resolution1280 × 1024
SensorCMOS
InterfaceUSB 2.0, RS-232, DC terminal
Focal length4.7 mm

$489.00

Ships in 2-3 weeks

0.32 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-IDH3000/13NR/05RN/U USB Handheld Code Reader. Built-in code reading algorithm for decoding different types of 1D and 2D codes. Provides good robustness to read codes with spots, defects and low contrast ratio.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-IDH3000/13NR/05RN/U
Brand	Hikrobot
Min. accuracy	3 mil
Detection angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol contrast	20%
Prompt	LED indicator, buzzer, vibrator
Static electricity resistant	± 16 kV (air discharge), ± 8 kV (contact discharge)
Laser safety class	Laser 2

Optics

Depth of field	Code 128 (3 mil): 25 mm to 70 mm; Code 128 (10 mil): 10 mm to 170 mm; Code 39 (5 mil): 15 mm to 100 mm; Data Matrix (5 mil): 30 mm to 60 mm; Data Matrix (10 mil): 5 mm to 115 mm
Field of view	Horizontal 40°, vertical 34°
Focal length	4.7 mm

Sensor and imaging

Symbologies	1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE; 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, GS1-DM, GS1-QR, Han Xin; Stacked code: PDF417
Sensor type	CMOS
Resolution	1280 × 1024
Aiming system	Cross laser aiming

Interfaces and I/O

Communication protocol	SmartSDK, USB (HID/CDC), Serial (RS-232)
Data interface	USB 2.0, RS-232, DC terminal
Client software	IDMVS

Light

Ambient illumination	0 lux to 100000 lux
Light source	Red LED
Wavelength	650 nm

Environment and compliance

Ingress protection	IP52
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	20% RH to 80% RH (no condensation)
Certification	CE, KC

Electrical

Power supply	USB 2.0: 5 VDC; DC terminal: 12 VDC to 24 VDC
Current consumption	USB 2.0: 0.9 A (max.), 0.5 A (typical); DC terminal: 0.5 A (max.), 0.28 A (typical)
Maximum power	1 mW

Mechanical

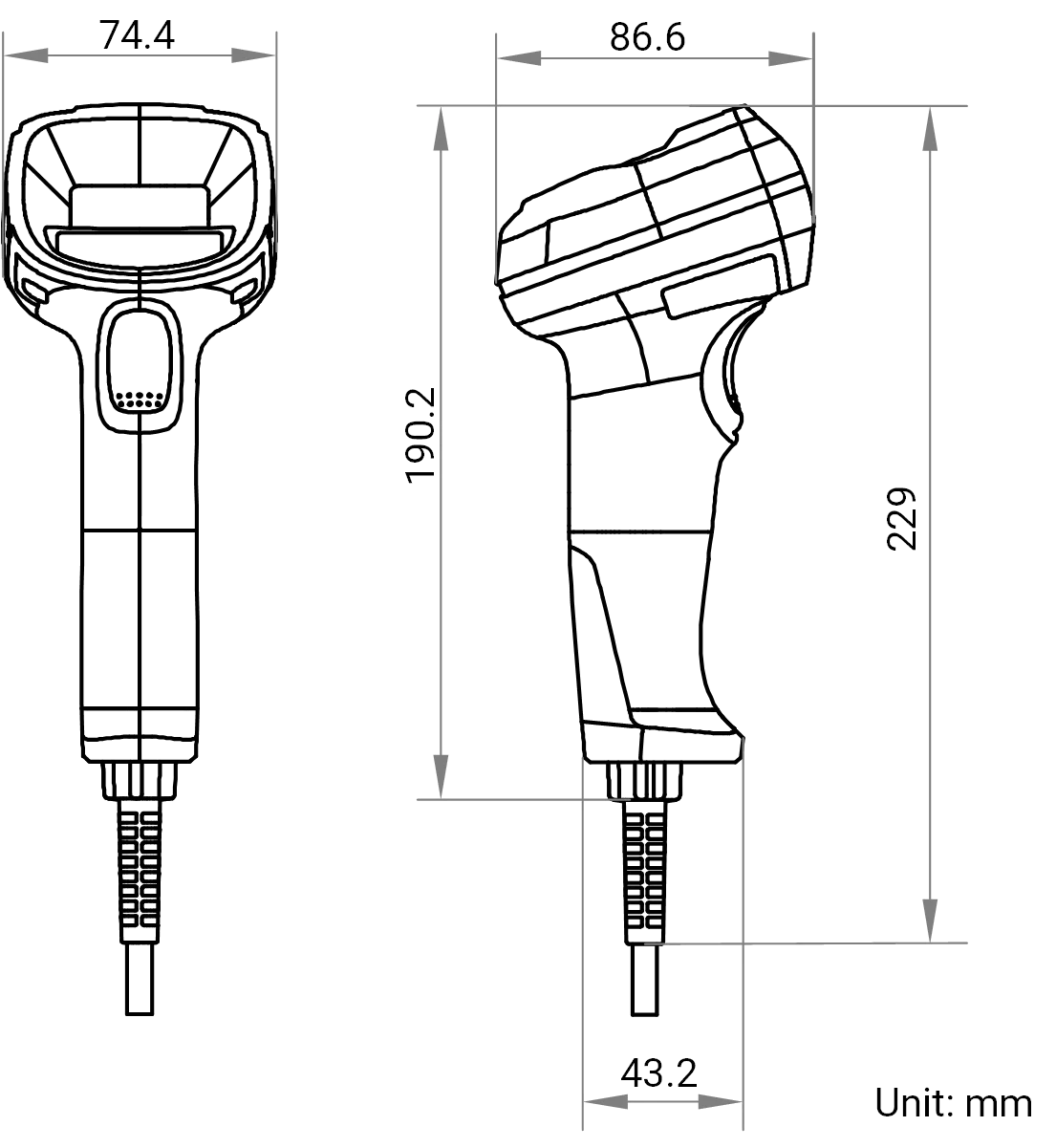

Dimension	74.4 mm × 86.6 mm × 190.2 mm (2.9" × 3.4" × 7.5")
Weight	Approx. 160 g (0.4 lb.)
Drop height	Dropping: 1.8 m, 50 times; Rolling: 0.5 m, 1200 times
Pulse width	8 ms
Shipping weight (estimated)	0.32 kg

Downloads

Features

Built-in code reading algorithm for decoding different types of 1D and 2D codes.
Provides good robustness to read codes with spots, defects and low contrast ratio.
Supports continuous code reading and batch code reading for improving code reading efficiency.
Supports communication protocols, including TCP, FTP, UDP, USB, Serial, and SmartSDK.
The device with industrial protocols supports Profinet, Ethernet/IP, Modbus, MC/SLMP, and FINS communication protocols.
Easy to replace components.
