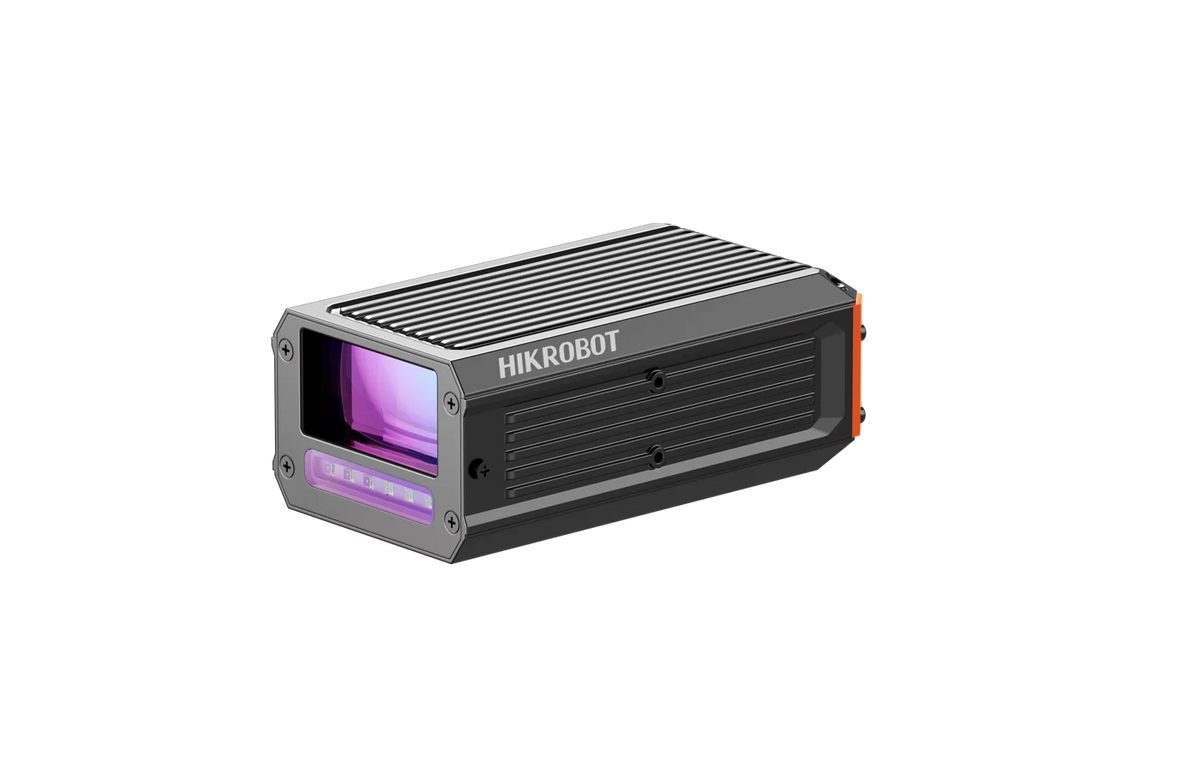

Hikrobot MV-SC6500P-AI-WID-IBN SC6500P Wafer ID Reader, Mono, Combined IR light source

Model MV-SC6500P-AI-WID-IBNHikrobot

Resolution1408 × 576
SensorCMOS, global shutter
InterfaceGigabit Ethernet (1000 Mbit/s)
Speed120 fps
Lens mountM12
Mono / colourMono

$3,449.00

List price

Ships in 2-3 weeks

1.26 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineer Browse Smart cameras & vision sensors

MV-SC6500P-AI-WID-IBN: resolution 1408 x 576, sensor size 1/3.4", max. frame rate 120 fps, data interface Gigabit Ethernet (1000 Mbit/s), LED NIR light.

Hikrobot MV-SC6500P-AI-WID-IBN SC6500P Wafer ID Reader, Mono, Combined IR light source. Adopts AI algorithm to recognize wafer ID information. Supports advanced optical imaging system with multiple lighting methods.

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CEKC

Specifications

General

Model	MV-SC6500P-AI-WID-IBN
Brand	Hikrobot
Function module	Vision Master Platform (include deep learning module) and SCClient
Algorithm capability	SEMI OCR character, data matrix code, QR code, and barcode
Lighting method	Multiple lighting methods (bright field lighting and dark field lighting)
Indicator	Power indicator (PWR), network indicator (LNK), and status indicator (SYS)

Optics

Focus mode	Auto
Field of view (range)	38 mm × 15 mm
Depth of field	± 5 mm

Sensor and imaging

Sensor type	CMOS, global shutter
Pixel size	3.45 μm × 3.45 μm
Sensor size	1/3.4"
Resolution	1408 × 576
Max. frame rate	120 fps
Gain	0 dB to 37 dB
Exposure time	25 μs to 1 sec
Pixel format	Mono 8
Mono/color	Mono

Interfaces and I/O

Communication protocol	TCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
Data interface	Gigabit Ethernet (1000 Mbit/s)
Digital I/O	6-pin P7 connector provides power and I/O, including non-isolated input × 1, non-isolated output × 1, and RS-232 × 1

Light

LED	NIR light
Illumination intensity	Configure in software

Environment and compliance

Ingress protection	IP40
Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Vibration resistance	Meets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Shock resistance	Meets standard IEC 60068-2-27:2008.; Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
Certification	CE, KC

Computing

Memory	8 GB
Storage	64 GB

Electrical

Power supply	24 VDC
Power consumption	Avg. 11.5 W @ 24 VDC; Max. 18 W @ 24 VDC

Mechanical

Lens mount	M12-mount
Installation height	40 mm to 50 mm (recommended)
Weight	Approx. 829 g (1.8 lb.)
Dimension	127 mm × 69 mm × 49 mm (5" × 2.7" × 1.9")
Shipping weight (estimated)	1.26 kg

Downloads

Features

Frame rate up to 120 fps
Exposure time 25 µs to 1 s
Adopts AI algorithm to recognize wafer ID information.
Supports advanced optical imaging system with multiple lighting methods.
Integrates VM functions, and supports more than 140 algorithms.
Adopts high-performance CPU with faster calculation performance and high efficiency.
Supports multiple communication protocols.
Supports indicators displaying device status for easy debugging and maintenance.

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

The MV-SC6500P-AI-WID-IBN at a glance

The numbers that set this model apart, taken from its own printed specifications.

Resolution1408 × 576 px

Max. frame rate120 fps

Ingress protectionIP40

Power consumption11.5 Wavg. at 24 V DC; max. 18 W

ShutterGlobal

Exposure range25 µs to 1 s
