Hikrobot MV-SC6016M-06M-XBN SC6000 Series Smart Camera, 1.6MP, Mono, M12-6mm focal length, Multi-color light source
  • Hikrobot MV-SC6016M-06M-XBN SC6000 Series Smart Camera, 1.6MP, Mono, M12-6mm focal length, Multi-color light source
  • MV-SC6016M-06M-XBN dimensions (mm)

Smart cameras & vision sensors

Hikrobot MV-SC6016M-06M-XBN SC6000 Series Smart Camera, 1.6MP, Mono, M12-6mm focal length, Multi-color light source

Model MV-SC6016M-06M-XBNHikrobot

  • Resolution1408 × 1024
  • SensorCMOS, global shutter
  • InterfaceGigabit Ethernet (1000 Mbit/s)
  • Speed120 fps
  • Lens mountM12
  • Mono / colourMono
$3,999.00
List price

Ships in 2-3 weeks

1.15 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable cameras:

Ask an engineerBrowse Smart cameras & vision sensors

MV-SC6016M-06M-XBN: resolution 1408 x 1024, sensor size 1/2.9", max. frame rate 120 fps, data interface Gigabit Ethernet (1000 Mbit/s), mono/color Mono.

Hikrobot MV-SC6016M-06M-XBN SC6000 Series Smart Camera, 1.6MP, Mono, M12-6mm focal length, Multi-color light source. Adopts AI deep learning algorithm to achieve OCR, object recognition, defect detection, etc. Integrates VM functions, and supports more than 140 algorithms.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CEKC

Specifications

General

ModelMV-SC6016M-06M-XBN
BrandHikrobot
Function moduleVision Master Platform (include deep learning module)
IndicatorPower indicator (PWR), network indicator (LNK), status indictor (STS), and user-defined indicator (U1/U2)

Optics

Focal length6 mm

Sensor and imaging

Sensor typeCMOS, global shutter
Pixel size3.45 μm × 3.45 μm
Sensor size1/2.9"
Resolution1408 × 1024
Max. frame rate120 fps
Gain0 dB to 15 dB
Exposure time25 μs to 30000 μs
Pixel formatMono 8
Mono/colorMono

Interfaces and I/O

Communication protocolTCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
Data interfaceGigabit Ethernet (1000 Mbit/s)
Digital I/O17-pin M12 connector provides power and I/O, including opto-isolated input × 2 (Line 0/1), opto-isolated output × 2 (Line 4/5), configurable non-isolated input/output × 2 (Line 2/3), RS-232 × 1, and light source output (max. 30 W) × 1
Extended interfaceVGA × 1, and USB host × 1

Light

Light sourceRed light, green light, blue light, white light (switching by software)

Environment and compliance

Ingress protectionIP67 (under proper installation of waterproof lens cap)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
Vibration resistanceMeets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Shock resistanceMeets standard IEC 60068-2-27:2008.; Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
CertificationCE, KC

Computing

Memory8 GB
Storage64 GB

Electrical

Power supply24 VDC
Power consumptionExternal light source and built-in light source cannot be used at the same time; Avg. 12 W @ 24 VDC (with no external light source and the built-in light source disabled); Avg. 42 W @ 24 VDC (with external light source); Avg. 16.6 W @ 24 VDC (built-in light source is enabled); Max. 18 W @ 24 VDC (with no external light source and the built-in light source disabled); Max. 48 W @ 24 VDC (with external light source or the built-in light source enabled)

Mechanical

Lens mountM12-mount, mechanical focus
Dimension77 mm × 98 mm × 115.7 mm (3.0" × 3.9" × 4.6")
WeightApprox. 750 g (1.7 lb.)
Shipping weight (estimated)1.15 kg

Engineering data

The MV-SC6016M-06M-XBN at a glance

The numbers that set this model apart, taken from its own printed specifications.

Resolution1408 × 1024 px
Max. frame rate120 fps
Focal length6 mm
Ingress protectionIP67
ShutterGlobal
Exposure range25–30000 µs

Other models in the SC6000 Series Smart Camera series

See all 29 models
ModelResolutionInterfaceSpeedPriceAvailabilityLink
MV-SC6016M-06M-XBNThis model1408 × 1024Gigabit Ethernet (1000 Mbit/s)120 fps$3,999.00 Quote Ships in 2-3 weeks
MV-SC6016M-00C-NNN/V21408 × 1024Gigabit Ethernet (1000 Mbit/s)120 fps$2,949.00 Quote Ships in 2-3 weeks View
MV-SC6050M-00C-NNN/V22432 × 2048Gigabit Ethernet (1000 Mbit/s)80 fps$2,949.00 Quote Ships in 2-3 weeks View
CY-SCD120M-00C-NNN4096 × 2944Gigabit Ethernet(1000 Mbit/s)45 fps$3,269.00 Quote Ships in 2-3 weeks View
CY-SCD120C-00C-NNN4096 × 2944Gigabit Ethernet(1000Mbit/s)40 fps$3,269.00 Quote Ships in 2-3 weeks View
MV-HD6-C1200M-NNN4096 × 2944Gigabit Ethernet(1000 Mbit/s)45 fps$3,269.00 Quote Ships in 2-3 weeks View

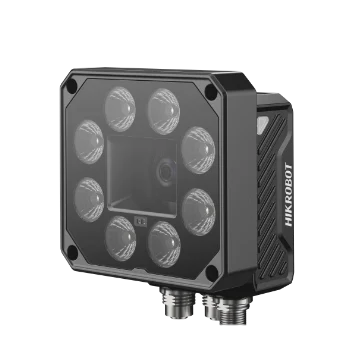

MV-SC6016M-12M-XBN1408 × 1024Gigabit Ethernet (1000 Mbit/s)120 fps$3,449.00 Quote Ships in 2-3 weeks View
