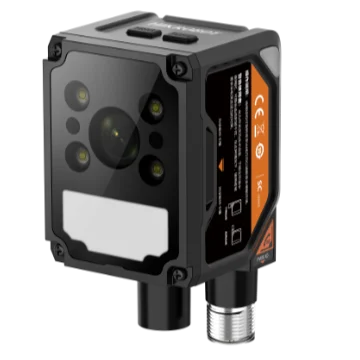

Hikrobot MV-SC3060XM-12M-WBN SC3000X series vision sensor, 6MP, Mono, 12mm focal length

Model MV-SC3060XM-12M-WBNHikrobot

Resolution3200 × 1920
SensorCMOS, rolling shutter
InterfaceFast Ethernet (100 Mbit/s)
Speed20 fps
Lens mountM12
Mono / colourMono

$1,809.00

Ships in 2-3 weeks

0.37 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineer Browse Smart cameras & vision sensors

MV-SC3060XM-12M-WBN: resolution 3200 x 1920; sensor type CMOS, rolling shutter; sensor size 1/2.4"; max. frame rate 20 fps; mono/color Mono.

Hikrobot MV-SC3060XM-12M-WBN SC3000X series vision sensor, 6MP, Mono, 12mm focal length. Adopts embedded hardware platform to realize high-speed image processing. Built-in high-precision positioning, measurement and recognition algorithms for counting, defects, existence, positioning and other functions.

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CEKC

Specifications

General

Model	MV-SC3060XM-12M-WBN
Brand	Hikrobot
Vision tool	Measurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness average value, L2L angle, diameter measurement, line angle; Existence: Spot existence, edge existence, contour existence, pattern existence, circle existence, line existence, anomaly judge, existence detection; Count: Spot count, edge count, contour count, pattern count, learning-based count; Recognition: Multi-object count, code recognition, category recognition, classification registration, object registration, OCR, learning-based OCR, character horizontal stripe detection; Logic: Calculator, if module, logic judge, format output, condition judge, character comparison, combination judge; Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture; Deep learning: DL classification, DL object detection; Defect detection: Anomaly detection; Industry tools: OCR and defect detection
Solution capacity	Supports importing and exporting solutions, up to 32 solutions can be stored.
Lens cap	Half-polarized lens cap by default. Transparent or fully-polarized lens cap is optional.
Indicator	360° visual indicator

Optics

Focal length	12 mm

Sensor and imaging

Sensor type	CMOS, rolling shutter
Pixel size	2 μm × 2 μm
Sensor size	1/2.4"
Resolution	3200 × 1920
Max. frame rate	20 fps
Gain	0 dB to 33 dB
Exposure time	540 μs to 200 ms
Pixel format	Mono 8
Mono/color	Mono
Aiming system	2 LEDs

Interfaces and I/O

Communication protocol	RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV
Data interface	Fast Ethernet (100 Mbit/s)
Digital I/O	12-pin M12 connector provides power and I/O, including isolated input (Line 0/1/2) × 3, isolated output (Line 3/4/5) × 3, RS-232 × 1; Supports device triggering via pressing top trigger button
Client software	SCMVS

Light

Light source	Focused white light by default. Red, blue, IR, or UV light is optional.

Environment and compliance

Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Vibration resistance	Meets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Shock resistance	Meets standard IEC 60068-2-27:2008.; Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
Certification	CE, KC

Electrical

Power supply	12 VDC to 24 VDC
Power consumption	Avg.: 6.6 W @ 24 VDC (light source enabled); Max.: 22 W @ 24 VDC (light source enabled)

Mechanical

Lens mount	M12-mount, mechanical focus supported
Dimension	Straight angle: 80.1 mm × 43 mm × 43.5 mm (3.2" × 1.7" × 1.7"); Right angle: 58.5 mm × 43 mm × 64.6 mm (2.3" × 1.7" × 2.5")
Weight	Approx. 190 g (0.4 lb.)
Shipping weight (estimated)	0.37 kg

Downloads

Features

Frame rate up to 20 fps
Exposure time 540 µs to 200 ms
Adopts embedded hardware platform to realize high-speed image processing.
Built-in high-precision positioning, measurement and recognition algorithms for counting, defects, existence, positioning and other functions.
Supports RS-232, TCP, UDP, FTP, Modbus, PROFINET, EtherNet/IP and other communication modes.
Adopts multiple IO interfaces for input and output signals.
Supports viewing the device's status in real time via 360° visual indicator, convenient for debugging and maintenance.
Rotatable cable tail design, suitable for narrow space.
Adopts polarized and full-transparent multiple optical lighting with good environmental adaptability.
IP67 protection without fear of harsh industrial application environments.

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

The MV-SC3060XM-12M-WBN at a glance

The numbers that set this model apart, taken from its own printed specifications.

Resolution3200 × 1920 px

Max. frame rate20 fps

Focal length12 mm

Ingress protectionIP67

Power consumption6.6 Wavg. at 24 V DC; max. 22 W

ShutterRolling
