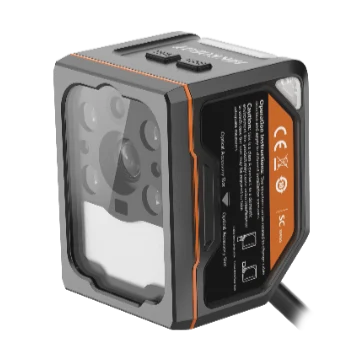

Hikrobot MV-SC3013XC-05M-MED SC3000X medical-dedicated vision sensor, 1.3MP, Color, 5 mm lens, Motorized focus
Model MV-SC3013XC-05M-MEDHikrobot
- Resolution1216 × 1024
- SensorCMOS, global shutter
- InterfaceFast Ethernet(100 Mbit/s)
- Speed100 fps
- Lens mountM12
- Mono / colourColor
$1,809.00
Ships in 2-3 weeks
0.38 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Available in the US - comparable cameras:
MV-SC3013XC-05M-MED: resolution 1216 x 1024; sensor type CMOS, global shutter; sensor size 1/1.45"; max. frame rate 100 fps; focal length 5 mm.
Hikrobot MV-SC3013XC-05M-MED SC3000X medical-dedicated vision sensor, 1.3MP, Color, 5 mm lens, Motorized focus. Embedded hardware platform for high-speed image processing High-precision algorithms with high read rates, plus tube-cap presence detection, liquid level detection and blood quality inspection
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Certifications (as printed)CEKC
Specifications
General
| Model | MV-SC3013XC-05M-MED |
|---|---|
| Brand | Hikrobot |
| Vision tool | Measurement: point-point measurement, Liquid level measurement, Contrast measurement, Grayscale area, Pitch measurement, Width measurement, Mean brightness, Line-line angle, Color measurement, Color area, Diameter measurement, Line angle; Presence: blob presence, Edge presence, Contour presence, Pattern presence, Circle presence, Line presence; Count: blob count, Edge count, Contour count, Pattern count, Color counting; Recognition: code recognition, Blood quality recognition, Color comparison, Color recognition, Registration classification, Registration object detection, Character recognition; Logic: Json format output, Variable calculation, Branch control, Logic judgment, Condition judgment, Character comparison, Combined judgment; Positioning: unit conversion, Position correction; Deep learning: classification, Object detection |
| Solution capacity | Supports importing and exporting project, up to 32 projects can be stored |
| Lens cap | Fully polarized lens cover |
| Indicator | Multi-angle visual indicator |
Optics
| Focal length | 5 mm |
|---|
Sensor and imaging
| Sensor type | CMOS, global shutter |
|---|---|
| Pixel size | 6.9 μm × 6.9 μm |
| Sensor size | 1/1.45" |
| Resolution | 1216 × 1024 |
| Max. frame rate | 100 fps |
| Gain | 0 dB ~ 15 dB |
| Exposure time | 16 μs ~1 sec |
| Pixel format | RGB 8, Mono 8 |
| Mono/color | Color |
| Aiming system | 1 LED |
Interfaces and I/O
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
|---|---|
| Data interface | Fast Ethernet(100 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power and I/O: 3 opto-isolated inputs (LINE 0/1/2), 3 opto-isolated outputs (LINE 3/4/5), 1 RS-232 interface; Output signal type configurable as NPN or PNP |
| Client software | SCMVS |
Light
| Light source | White spot light source. Red/blue/IR point light source is optional |
|---|
Environment and compliance
| Ingress protection | IP65 |
|---|---|
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock resistance | Meets standard IEC 60068-2-27:2008.; Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Certification | CE, KC |
Electrical
| Power supply | 24 VDC |
|---|---|
| Power consumption | 6.5 W @ 24 VDC |
Mechanical
| Lens mount | M12-mount, mechanical autofocus supported |
|---|---|
| Dimension | 43 mm × 57 mm × 45.9 mm |
| Weight | Approx. 200 g (0.4 lb.) |
| Shipping weight (estimated) | 0.38 kg |
Engineering data
The MV-SC3013XC-05M-MED at a glance
The numbers that set this model apart, taken from its own printed specifications.
Resolution1216 × 1024 px
Max. frame rate100 fps
Focal length5 mm
Ingress protectionIP65
Power consumption6.5 Wat 24 V DC
ShutterGlobal
