Handheld code readers

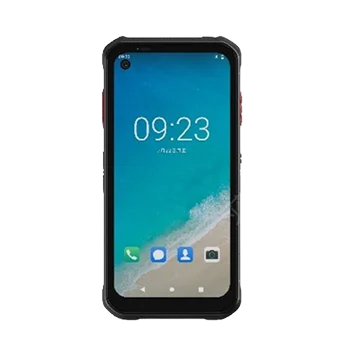

Hikrobot MV-IDP5102/4&64 Octa-core 5-inch PDA

Model MV-IDP5102/4&64Hikrobot

InterfaceUSB
ConnectionWired
Min. accuracy3 mil
Detection angleHorizontal 42°, Vertical 28°

$719.00

Ships in 2-3 weeks

0.38 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-IDP5102/4&64 Octa-core 5-inch PDA. In-house deep-learning algorithm efficiently reads difficult codes such as broken, ink-bleed, under-inked, laminated and damaged codes Up to octa-core 2.0 GHz high-performance processor, running Android 11.0

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-IDP5102/4&64
Brand	Hikrobot
Min. accuracy	3 mil
Detection angle	Horizontal 42°, Vertical 28°
SIM	1× Nano-SIM slot, 1 Nano-SIM/TF combo slot (either/or), Dual SIM dual standby supported
Camera	Front camera: 2 MP (color, fixed focus); Rear camera: 8 MP (color, autofocus)
Touch screen	Capacitive touch, Glove mode supported
Audio	Built-in speaker, Built-in dual microphones (with noise reduction)
Keypad	Volume +, - key, Power button, 2× side scan buttons, 2 reserved keys
Battery	4500 mAh, Non-removable battery; 5 V by default, 2 A adapter
Wi-Fi	IEEE 802.11 a/b/g/n/ac
Bluetooth	BT5.0
Positioning	GPS, BeiDou, GLONASS
Drop rating	1.5 m drop onto concrete
Laser safety class	Class 2

Optics

Field of view	Tilt angle ±60°, Skew angle ±45°, Rotation angle 360°
Depth of field	Code 39(10 mil):40 mm ~ 340 mm; Code 39(25 mil):70 mm ~ 480 mm; Code 128(5 mil):70 mm ~ 200 mm; Code 128(100 mil):0 ~ 1450 mm1; Data Matrix(10 mil):60 mm ~ 220 mm; QR Code(20 mil):45 mm ~ 370 mm; QR Code(100 mil):0 ~ 1000 mm1

Sensor and imaging

Symbologies	1D code: Code 11, Code 39, Code 93, Code 128, GS1, EAN, UPC-A, UPC-E, Interleaved 2 of 5, Codabar, Matrix 2 of 5, Industrial 2 of 5, Datalogic 2 of 5 (China Post), MSI Plessey, Pharmacode; Matrix 2D code: Data Matrix, QR Code, Micro QR Code, Aztec, Han Xin Code, MaxiCode, Data Matrix ECC140; Stacked 2D code: MicroPDF, PDF417
Sensor type	Accelerometer, Light sensor, Proximity sensor

Interfaces and I/O

Expansion slots	TF card, Up to 512 GB
Display	5.0-inch display (1520×720)
Data interface	Type-C (headphones supported), USB HighSpeed, OTG
Mobile network	2G:GSM B2/B3/B5/B8; 3G:WCDMA B1/B2/B5/B8, TD-SCDMA B34/B39; 4G:FDD-LTE B1/B3/B5/B7/B8/B20, TDD-LTE B34/B38/B39/B40/B41
Client software	Code scanning tool, Enterprise desktop, etc.

Light

Wavelength	650 nm

Environment and compliance

Ingress protection	IP68
Temperature	Operating temp.: -10 to 55 °C; Storage temp.: -30 to 60 °C
Humidity	5% to 95% RH (non-condensing)
Certification	CCC, CTA, SRRC

Computing

CPU	8-core 2.0 GHz processor
Memory	RAM 4 GB, ROM 64 GB
Operating system	Android 11.0

Electrical

ESD protection	±8 KV (air discharge), ±6 KV (contact discharge)
Maximum power	1 mW

Mechanical

Dimension	133.7 mm × 64.6 mm × 16.7 mm (thickest point 18.25 mm)
Weight	200 g (with battery)
Pulse width	4 ms
Shipping weight (estimated)	0.38 kg

Downloads

Features

In-house deep-learning algorithm efficiently reads difficult codes such as broken, ink-bleed, under-inked, laminated and damaged codes
Up to octa-core 2.0 GHz high-performance processor, running Android 11.0
5.0-inch display with 1520 × 720 resolution
Rugged industrial design: IP68 protection and repeated 1.5 m drops
4500 mAh large battery for long runtime, with fast charging
Fast roaming support with powerful Wi-Fi performance
Optional NFC

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the IDP Smart Handheld Terminal series

See all 12 models

Model	Size / key data	Price	Availability	Link
MV-IDP3204/32G	Type-C, USB 2.0, OTG · Wired	$719.00	3 in stock	View
MV-IDP5204/4&64	Type-C, USB 2.0, OTG · Wired	$719.00 Quote	Ships in 2-3 weeks	View
MV-IDP5104/AI4&64	Type-C, USB 2.0, OTG · Wired	$719.00	3 in stock	View
MV-IDP5006/5G/4&64/05FR	Type-C, USB 2.0, OTG · Wired	$719.00	5 in stock	View
MV-IDP5006/5G/A/4&64/05FR	Type-C, USB 2.0, OTG · Wired	$719.00	2 in stock	View
MV-IDP5006/5G/4&64/05FR/H	USB · Wired	$719.00	4 in stock	View
MV-IDP4104/4&64/DP/05NR	Type-C · Wired	$719.00	2 in stock	View
MV-IDP5114/4&64/05FR	USB · Wired	$719.00 Quote	Ships in 2-3 weeks	View
MV-IDP3204/A/4&64	Type-C, USB 2.0, OTG · Wired	$719.00	5 in stock	View
MV-IDP3204/64G	Type-C, USB 2.0, OTG · Wired	$719.00	5 in stock	View
MV-IDP5204/A/4&64	Type-C, USB 2.0, OTG · Wired	$719.00 Quote	Ships in 2-3 weeks	View
