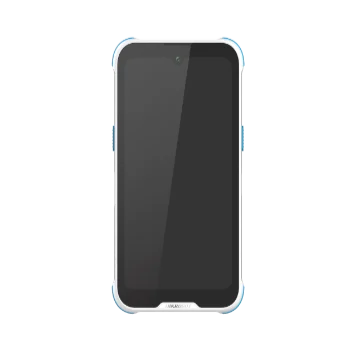

Hikrobot MV-IDP5006/5G/4&64/05FR/H Medical 6-inch 5G PDA

Model MV-IDP5006/5G/4&64/05FR/HHikrobot

InterfaceUSB
ConnectionWired
MemoryRAM 4GB, ROM 64GB
Expansion slotsNano-SIM × 2

$719.00

Ships in 2-3 weeks

0.49 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-IDP5006/5G/4&64/05FR/H Medical 6-inch 5G PDA. Medical-grade antibacterial, alcohol-resistant material In-house code-reading module and algorithm efficiently read difficult industrial codes: broken, ink-bleed, under-inked, laminated and damaged codes

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-IDP5006/5G/4&64/05FR/H
Brand	Hikrobot
Min. accuracy	5 mil
Operating frequency	13.56 MHz NFC
Tag standard	M1 card (S50, S70), CPU card, NFC tags, etc.
Read/write distance	Within 3 cm
Battery	5000 mAh
Wi-Fi	IEEE 802.11 a/b/g/n/ac/d/h/i/k/r/v/ac/ax
Bluetooth	BT5.2(2.4 GHz ~ 2.8 GHz)
GPS	GPS, BeiDou, GLONASS, Gallileo
Drop rating	1.5 m

Optics

Depth of field	Code 39(5 mil):120 mm ~ 220 mm; Code 39(25 mil):70 mm ~ 750 mm; Code 128(10 mil):40 mm ~ 410 mm; Data Matrix(10 mil):90 mm ~ 220 mm; QR Code(20 mil):45 mm ~ 400 mm; QR Code(100 mil): ~ 1400 mm; Code 128(100 mil): ~ 2100 mm

Sensor and imaging

Symbologies	1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, UPCE, UPCA, Matrix 25, MSI Plessy, Code 11, Industrial 25, China Post, GS1, Pharmacode; 2D code: Data Matrix, QR Code, Micro QR, AZTEC, HANXIN; Stacked code: PDF 417
Resolution	Lens: code reading module (1 MP mono, global shutter); Front camera: 5 MP color, fixed focus; Rear camera: 13 MP color, autofocus

Interfaces and I/O

Expansion slots	Nano-SIM × 2
Protocol standard	ISO14443A/B, ISO15693
Mobile network	2G:GSM850/GSM900/DCS1800; 3G:UMTS Bands:B1/B5/B8; 4G:B1/B3/B5/B7/B8/B20/B28/B34/B38/B39/B40/41; 5G:n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78
Communication interface	USB2.0, Type-C, OTG
Client software	Scanning service

Environment and compliance

Temperature	Operating temp.: -20 to 50 °C, Storage temp.: -30 to 60 °C
Humidity	0% to 95% RH (non-condensing)
Ingress protection	IP67

Computing

CPU	8-core high-performance processor, up to 2.6 GHz
Memory	RAM 4GB, ROM 64GB
Operating system	Android 14.0

Electrical

Power supply	Output: DC 5 V, 2.0 A; Input: AC 100 to 240 V, 50 ~ 60Hz

Mechanical

Screen Size	6.0-inch touchscreen (720 × 1560)
Dimension	165.4 mm × 77.6 mm × 14.9 mm
Weight	Approx. 280 g (with battery)
Shipping weight (estimated)	0.49 kg

Downloads

Features

Medical-grade antibacterial, alcohol-resistant material
In-house code-reading module and algorithm efficiently read difficult industrial codes: broken, ink-bleed, under-inked, laminated and damaged codes
8-core high-performance processor up to 2.6 GHz, running Android 14.0
6.0-inch display with 720 × 1560 resolution
Rugged design: IP67 protection and repeated 1.5 m drops
5000 mAh large battery for long runtime, with fast charging
Fast roaming support with powerful Wi-Fi performance
13000, 000-pixel rear camera and 5 MP front camera for ultra-high-definition image capture
