Handheld code readers

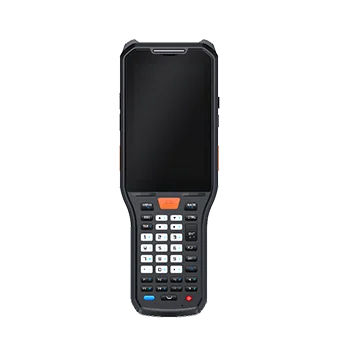

Hikrobot MV-IDP4104/4&64/DP/05NR Industrial full-keyboard PDA with area light

Model MV-IDP4104/4&64/DP/05NRHikrobot

InterfaceType-C
ConnectionWired
Min. accuracy3 mil
Field of viewHorizontal 42°, Vertical 28°

$719.00

Ships in 2-3 weeks

0.7 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineer Browse Handheld code readers

MV-IDP4104/4&64/DP/05NR: data interface Type-C, min. accuracy 3 mil, dimension 208.1 mm x 74.6 mm x 67.7 mm.

Hikrobot MV-IDP4104/4&64/DP/05NR Industrial full-keyboard PDA with area light. In-house deep-learning algorithm efficiently reads difficult codes such as broken, ink-bleed, under-inked, laminated and damaged codes. Octa-core 2.0 GHz high-performance processor running Android 11.0.

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CCC

Specifications

General

Model	MV-IDP4104/4&64/DP/05NR
Brand	Hikrobot
Min. accuracy	3 mil
Detection angle	Tilt angle ±60°, Skew angle ±45°, Rotation angle 360°
OCR	Rear camera and code reading module support OCR (Chinese, English and Arabic numerals) recognition
SIM	2× Nano-SIM slot
Camera	Front camera: 5 MP (color, fixed focus); Rear camera: 13 MP (color, autofocus)
Touch screen	Capacitive touch, Glove mode not supported
Audio	Built-in speaker, Built-in dual microphones (with noise reduction)
Keypad	Volume +/– keys, 1× PTT key, 2× side scan buttons, 37 front keypad keys
Battery	5200 mAh, Removable battery; 50 mAh backup battery supported; 5 V by default, 2 A adapter
Wi-Fi	IEEE 802.11 a/b/g/n/ac
Bluetooth	BT5.0(2.4GHz~2.8GHz)
Positioning	GPS, BeiDou, GLONASS
Drop rating	1.5 m drop onto concrete
Laser safety class	Class 2

Optics

Field of view	Horizontal 42°, Vertical 28°
Depth of field	Code 39(5 mil):33 mm ~ 100 mm; Code 39(20 mil):60 mm ~ 210 mm; Code 128(3 mil):40 mm ~ 80 mm; Code 128(5 mil):30 mm ~ 100 mm; Code 128(10 mil):30 mm ~ 135 mm; Data Matrix(5 mil):50 mm ~ 80 mm; Data Matrix(10 mil):30 mm ~ 100 mm; QR Code(20 mil):45 mm ~ 150 mm

Sensor and imaging

Symbologies	1D code: Code 11, Code 39, Code 93, Code 128, GS1, EAN, UPC-A, UPC-E, Interleaved 2 of 5, Codabar, Matrix 2 of 5, Industrial 2 of 5, Datalogic 2 of 5 (China Post), MSI Plessey, Pharmacode; Matrix 2D code: Data Matrix, QR Code, Micro QR Code, Aztec, Han Xin Code, MaxiCode, Data Matrix ECC140; Stacked 2D code: MicroPDF, PDF417
Built-in sensors	Accelerometer, Light sensor, Proximity sensor, Optional (electronic compass, gyroscope)

Interfaces and I/O

Expansion slots	TF card, Up to 512 GB
Display	4.0-inch display (800×480)
Data interface	Type-C
Mobile network	2G:GSM B3/B5/B8; 3G:WCDMA B1/B5/B8; 4G:FDD B1/B3/B5/B7/B8/B20/B28, TDD B34/B38/B39/B40/B41
Client software	Code scanning tool, Enterprise desktop, etc.

Light

Laser wavelength	650 nm

Environment and compliance

Ingress protection	IP68
Temperature	Operating temp.: -15 to 55 °C; Storage temp.: -40 to 60 °C
Humidity	0% to 95% RH (non-condensing)
Certification	CCC, CTA, SRRC

Computing

CPU	8-core 2.0 GHz high-performance processor
Memory	RAM 4GB, ROM 64GB
Operating system	Android 11.0

Electrical

ESD protection	±8 KV (air discharge), ±6 KV (contact discharge)
Laser output power (max.)	1 mW

Mechanical

Dimension	208.1 mm × 74.6 mm × 67.7 mm
Weight	Approx. 429 g (with battery)
Pulse width	4 ms
Shipping weight (estimated)	0.70 kg

Downloads

Features

In-house deep-learning algorithm efficiently reads difficult codes such as broken, ink-bleed, under-inked, laminated and damaged codes
Octa-core 2.0 GHz high-performance processor running Android 11.0
4.0-inch display with 480 × 800 resolution
Rugged high-protection design withstands repeated 1.5 m drops
5200 mAh high-capacity battery for long runtime, with support for a 50 mAh spare battery
Fast roaming support with powerful Wi-Fi performance
Optional NFC
