Handheld code readers

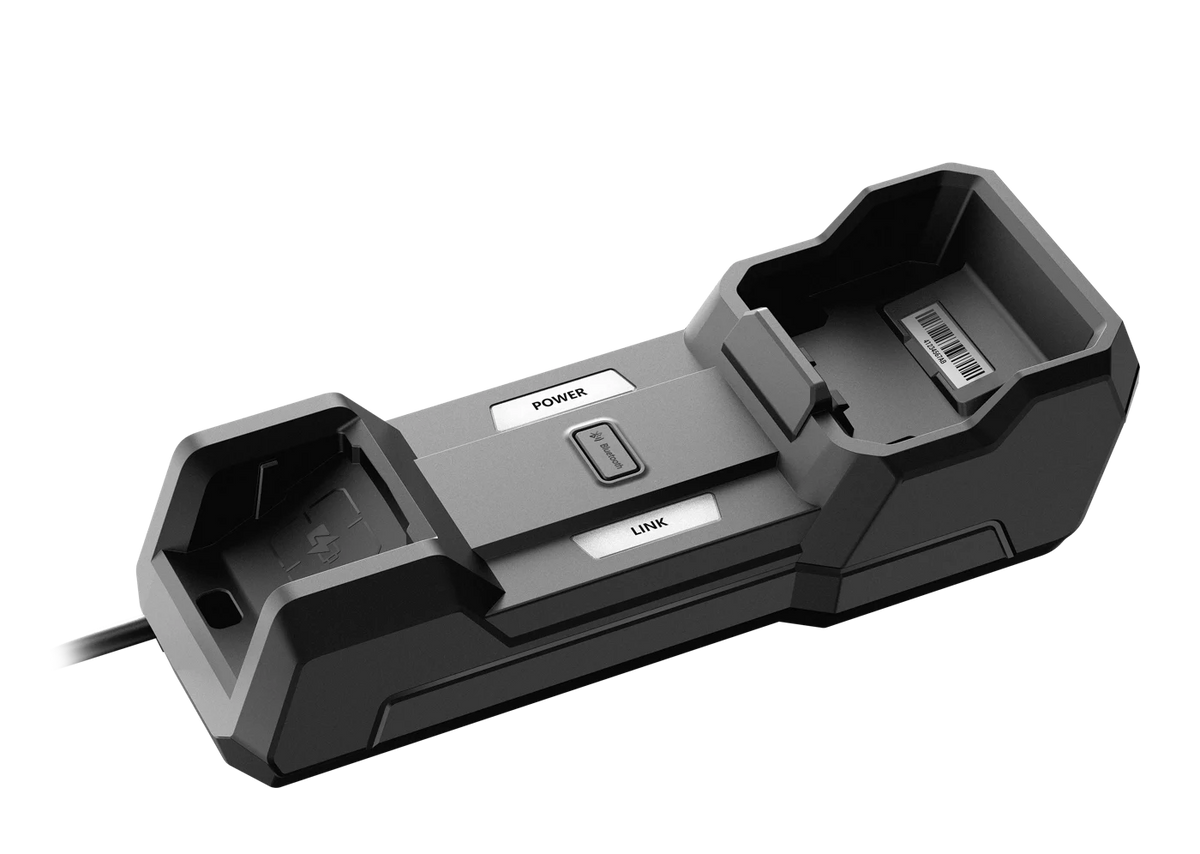

Hikrobot MV-IDH9000B/SBASE/U USB Smart Base

Model MV-IDH9000B/SBASE/UHikrobot

InterfaceUSB 2.0, DC terminal
ConnectionWired
Communication modeBluetooth BT 5.0, BLE
Wireless range100 m (open area)

Price on request

Ships in 2-3 weeks

0.63 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-IDH9000B/SBASE/U USB Smart Base. Adopts Bluetooth 5.0 wireless technology to provide stable connection with max. transmission distance of 100 meters in open areas, and supports mobile terminal connection via Bluetooth for convenient and efficient operations. Supports wireless charging, preventing potential metal electrode wear and metal filing interference.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-IDH9000B/SBASE/U
Brand	Hikrobot
Charging time	6 h

Interfaces and I/O

Communication mode	Bluetooth BT 5.0, BLE
Wireless range	100 m (open area)
Communication protocol	SmartSDK, USB (HID/CDC), Bluetooth, Serial1
Data interface	USB 2.0, DC terminal

Environment and compliance

Ingress protection	IP65
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	5% RH to 95% RH (no condensation)

Electrical

Power supply	DC terminal: 12 VDC to 24 VDC
Current consumption	1.1 A (max.), 0.15 A (during standby)

Mechanical

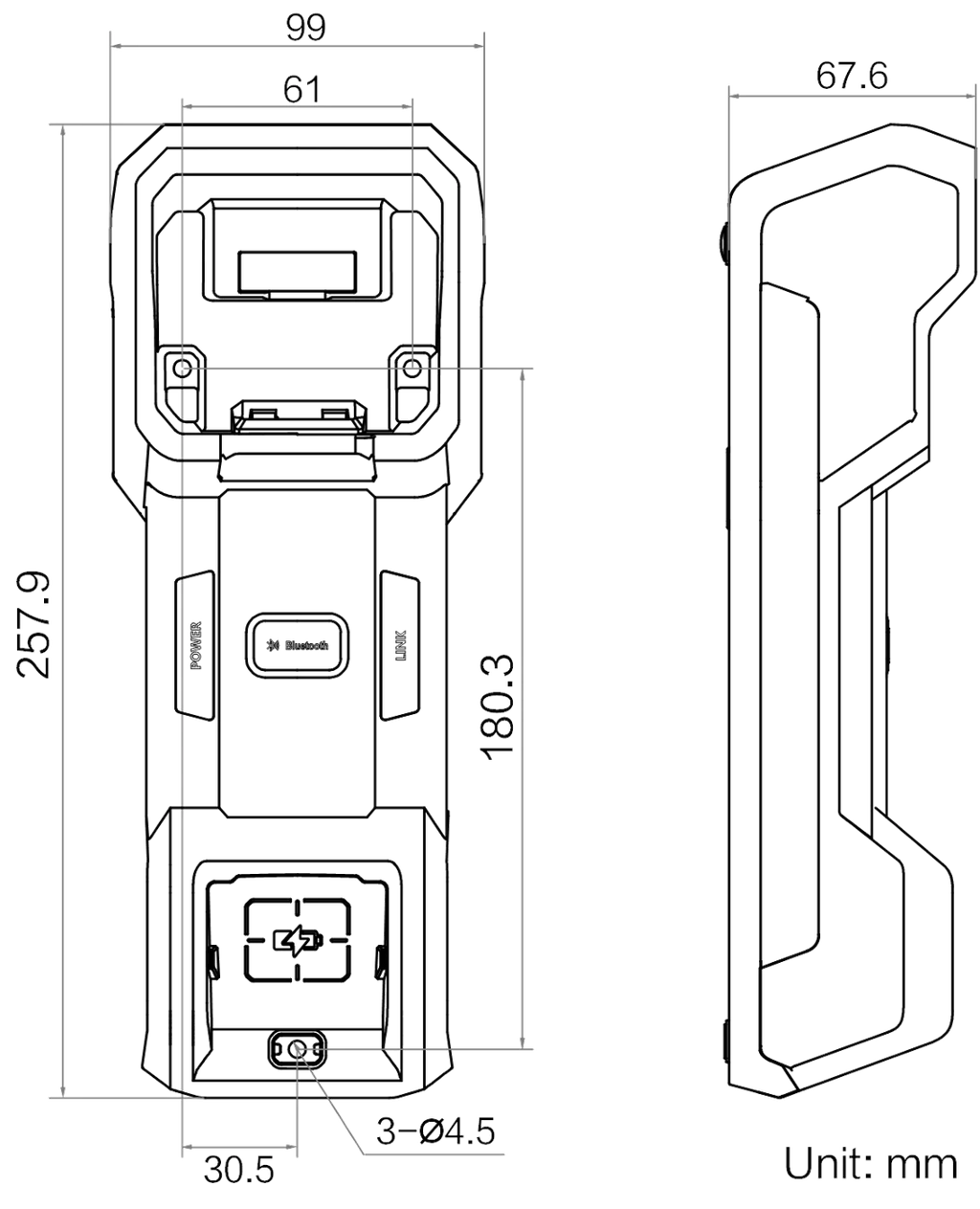

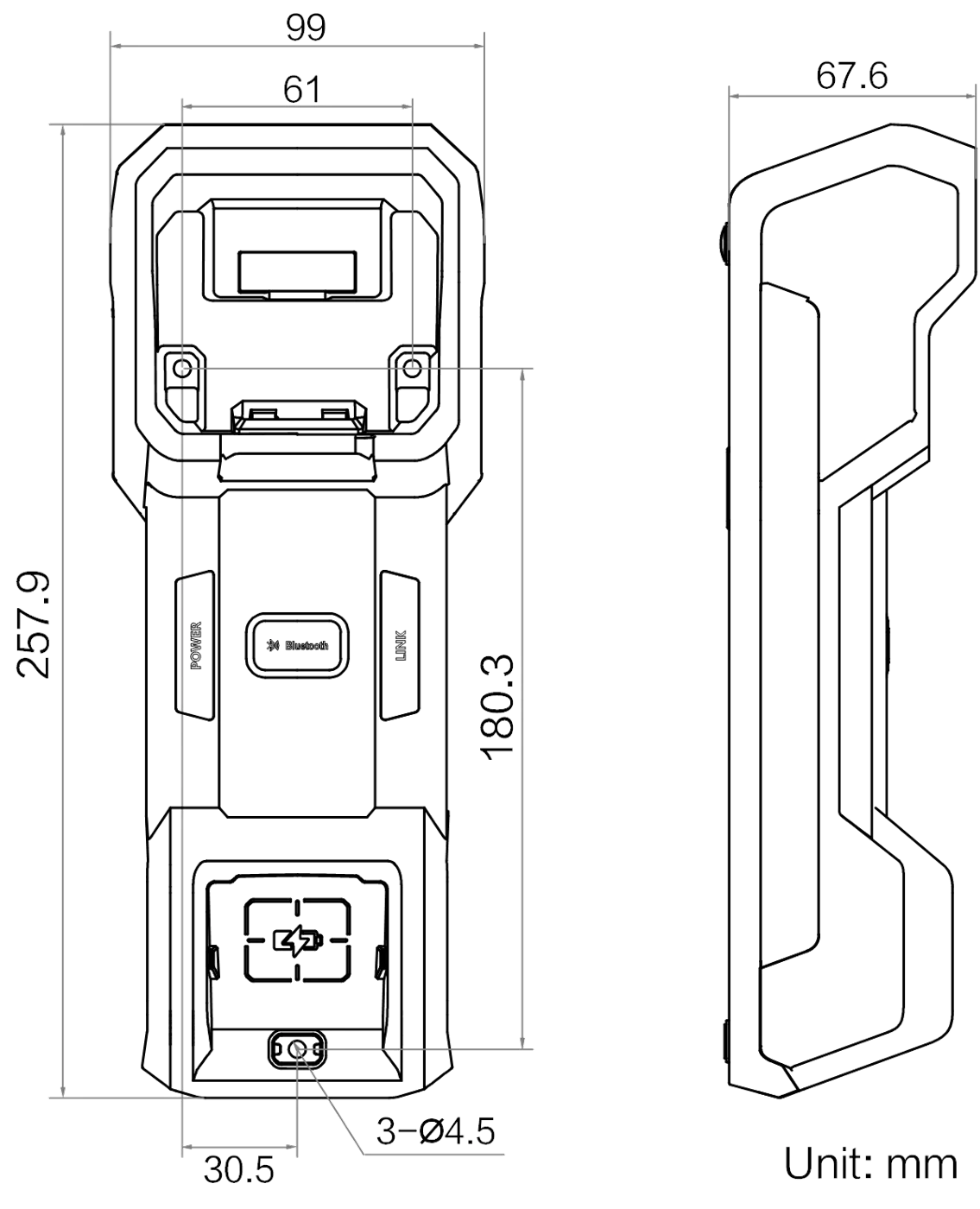

Dimension	257.9 mm × 99 mm × 67.6 mm (10.2" × 3.9" × 2.7")
Weight	Approx. 380 g (0.8 lb.)
Shipping weight (estimated)	0.63 kg

Downloads

Features

Adopts Bluetooth 5.0 wireless technology to provide stable connection with max. transmission distance of 100 meters in open areas, and supports mobile terminal connection via Bluetooth for convenient and efficient operations.
Supports wireless charging, preventing potential metal electrode wear and metal filing interference.
Supports multiple charging methods, such as charging via smart base, Type-C connector, or PoE connection with smart base.
The communication protocols supported by the USB type device are SmartSDK, USB, Serial, and Bluetooth. The communication protocols supported by the network type device are SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Profinet, EthernetIP, Bluetooth, and Modbus.
