Handheld code readers
IDH9000 Series Handheld Code Reader
- 14 models
- from $239.00
- Series HIK-IDH9000
The IDH9000 Series Handheld Code Reader is a range of 14 handheld code readers from Hikrobot, from $239.00. It comes in 1 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 1.3 MP
- Interface
- GigE, USB
- Series
- IDH9000 series
- Connection
- Wired, Wireless
Features
- Adopts Bluetooth 5.0 wireless technology to provide stable connection with max. transmission distance of 100 meters in open areas, and supports mobile terminal connection via Bluetooth for convenient and efficient operations.
- Supports wireless charging, preventing potential metal electrode wear and metal filing interference.

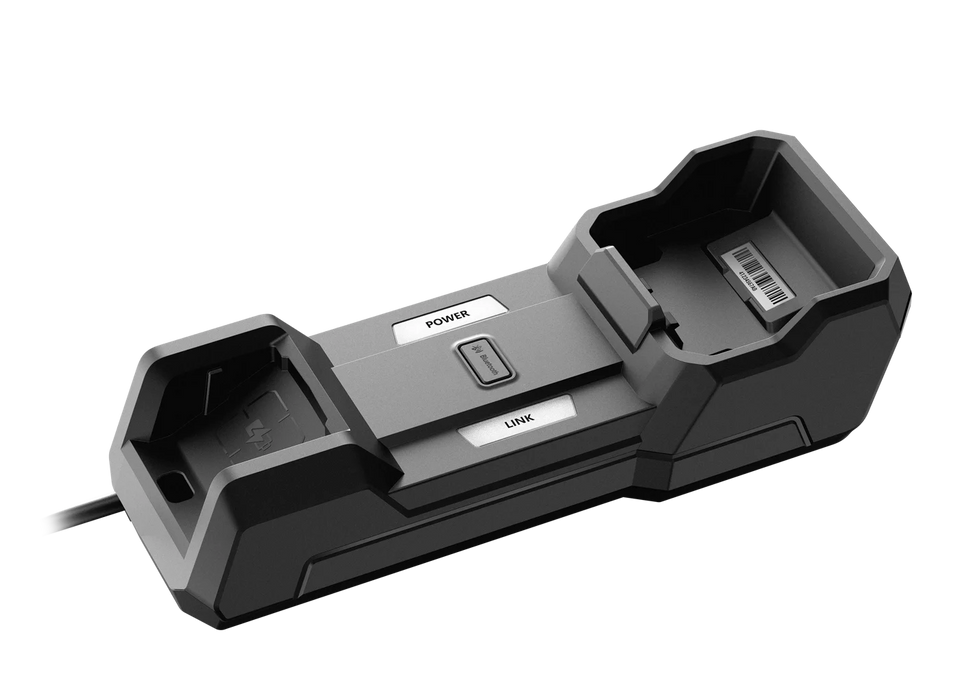

- Supports multiple charging methods, such as charging via smart base, Type-C connector, or PoE connection with smart base.
- The communication protocols supported by the USB type device are SmartSDK, USB, Serial, and Bluetooth. The communication protocols supported by the network type device are SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Profinet, EthernetIP, Bluetooth, and Modbus.
- Robust algorithm reliably reads difficult codes: damaged, skewed, low-contrast and laser-etched metal codes
- Micro-code lens reads codes with modules as small as 0.04 mm; zoom lens enables high-speed reading over a large depth of field
- 4 integrated lighting modes (direct, polarized, diffuse and dual-side diffuse) for resin, reflective and cast surfaces, cylinders and other typical applications
- Rugged: withstands drops (2.5 m, 50 times) and tumbles (0.5 m, 20000 times), and resists gasoline, diesel and other chemicals as well as strong electrostatic discharge
All 14 models in the IDH9000 Series Handheld Code Reader
| Link | ||||||
|---|---|---|---|---|---|---|
| MV-IDH9000B/SBASE/U | DC terminal: 12 VDC to 24 VDC | Price on request | View | |||
| MV-IDH9000B/SBASE/L | DC terminal: 12 VDC to 24 VDC; PoE: 48 VDC | Price on request | View | |||
| HIK-XD90-DL66-HD | 1.3 MP | 1280 × 1024 | DC terminal: 12 VDC; PoE³: 48 V | 0 ~ 100000 lux | $239.00 | View |
| HIK-XD90B-DL66-HD | 1.3 MP | 1280 × 1024, 1280 × 1024 | DC terminal: 12 to 24 VDC | 0 ~ 100000 lux | $239.00 | View |
| MV-IDH9000/13DP/04RP/U | 1.3 MP | 1280 × 1024 | 12 VDC | 0 lux to 100000 lux | $2,789.00quote | View |
| MV-IDH9000B/13DP/04RP/US | 1.3 MP | 1280 × 1024 | DC terminal: 12 VDC to 24 VDC | 0 lux to 100000 lux | $2,789.00quote | View |
| MV-IDH9000/13DP/04RP/L | 1.3 MP | 1280 × 1024 | DC terminal: 12 VDC; PoE3: 48 V | 0 lux to 100000 lux | $2,979.00quote | View |
| MV-IDH9000B/13DP/04RP/LS | 1.3 MP | 1280 × 1024 | DC terminal: 12 VDC to 24 VDC; PoE: 48 VDC | 0 lux to 100000 lux | $2,979.00quote | View |
| MV-IDH9300S/13XR/04YJ/U | 1.3 MP | 1280 × 1024 | 12 VDC | 0 ~ 100000 lux | $3,249.00quote | View |
| MV-IDH9000/13HHD/16RP/U | 1.3 MP | 1280 × 1024 | 12 VDC | 0 lux to 100000 lux | $3,719.00quote | View |
| MV-IDH9000B/13HHD/16RP/US | 1.3 MP | 1280 × 1024 | DC terminal: 12 VDC to 24 VDC; PoE: 48 VDC | 0 lux to 100000 lux | $3,719.00quote | View |
| MV-IDH9000B/13HHD/16RP | 1.3 MP | 1280 × 1024 | 0 lux to 100000 lux | $3,809.00quote | View | |
| MV-IDH9000/13HHD/16RP/L | 1.3 MP | 1280 × 1024 | DC terminal: 12 VDC; PoE3: 48 V | 0 lux to 100000 lux | $3,899.00quote | View |
| MV-IDH9000B/13HHD/16RP/LS | 1.3 MP | 1280 × 1024, 1280 × 1024 | DC terminal: 12 to 24 VDC; PoE:48 VDC | 0 ~ 100000 lux | $3,899.00quote | View |
