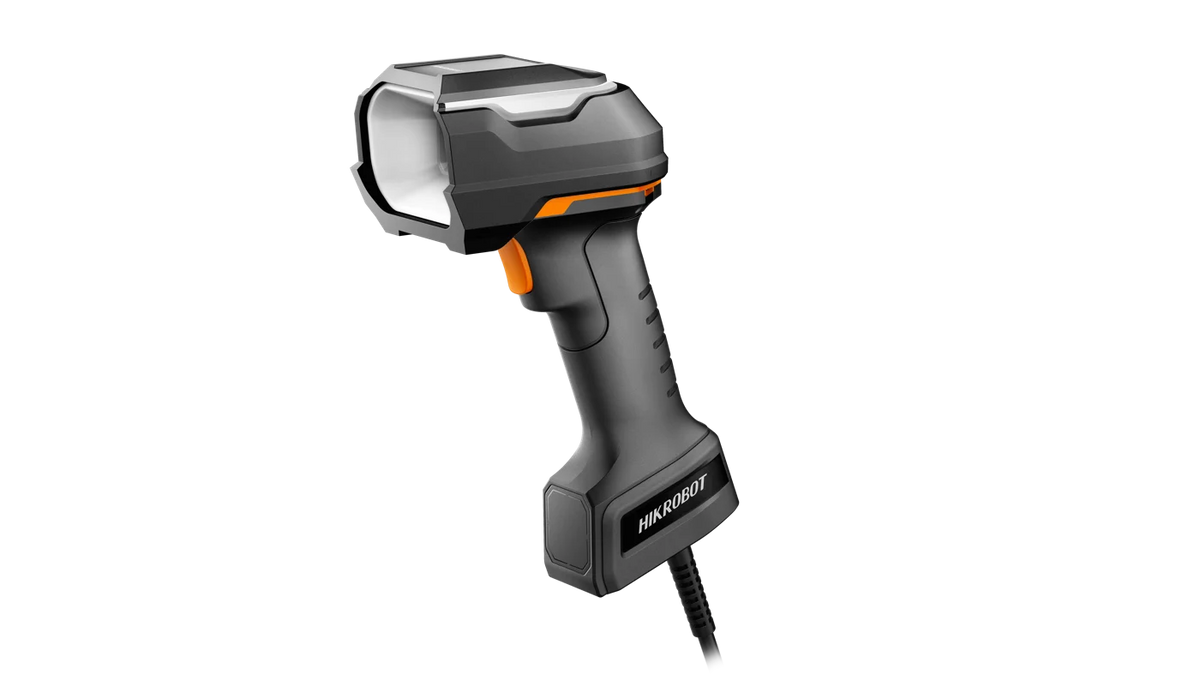

Hikrobot MV-IDH9000/13HHD/16RP/U Ultra-ragged Wired Handheld Code Reader
Model MV-IDH9000/13HHD/16RP/UHikrobot
- Resolution1280 × 1024
- SensorCMOS
- InterfaceUSB 2.0, DC terminal
- ConnectionWired
$3,719.00
Ships in 2-3 weeks
0.79 kg shipping weight
Not available in the United States. Available for delivery to other countries.
MV-IDH9000/13HHD/16RP/U: data interface USB 2.0, DC terminal; min. accuracy 1.57 mil; communication protocol SmartSDK, USB (HID/CDC), Serial2.
Hikrobot MV-IDH9000/13HHD/16RP/U Ultra-ragged Wired Handheld Code Reader. Built-in code reading algorithm and illumination system for decoding codes with spots, defects and low contrast ratio. The device which supports ultra-small code and DPM code recognition has a lens for reading ultra-small code with a minimum module size of 0.04 mm and a zoom lens for high-speed reading with large depth of field.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Certifications (as printed)CEKC
Specifications
General
| Model | MV-IDH9000/13HHD/16RP/U |
|---|---|
| Brand | Hikrobot |
| Min. accuracy | 1.57 mil |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol contrast | 20% |
| Prompt | LED indicator, buzzer, vibrator |
| Chemically resistant | ISO 16750 |
| Static electricity resistant | ± 25 kV (air discharge), ± 10 kV (contact discharge or indirect discharge) |
| Laser safety class | Laser 2 |
Optics
| Depth of field | Code128 (3 mil): 0 mm to 100 mm; Code 128 (10 mil): 0 mm to 250 mm; Code 128 (20 mil): 0 mm to 350 mm; Code 39 (5 mil): 0 mm to 150 mm; Data Matrix (5 mil): 5 mm to 79 mm; QR Code (20 mil): 0 mm to 250 mm |
|---|---|
| Field of view | Wide-angle lens: horizontal 43.6°, vertical 35.5°; Telephoto lens: horizontal 10.4°, vertical 8.3° |
| Focal length | Wide-angle lens: 4.3 mm; Telephoto lens: 16 mm |
Sensor and imaging
| Symbologies | 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ISBN, ISSN, ITF25, ITF14, UPCA, UPCE; 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec; Stacked barcode: PDF417 |
|---|---|
| Sensor type | CMOS |
| Resolution | 1280 × 1024 |
| Aiming system | 650 nm laser (red light) + LED (green light) |
Interfaces and I/O
| Communication protocol | SmartSDK, USB (HID/CDC), Serial2 |
|---|---|
| Data interface | USB 2.0, DC terminal |
| Display | 0.96" OLED display |
| Client software | IDMVS |
Light
| Ambient illumination | 0 lux to 100000 lux |
|---|---|
| Light source | Diffused reflection lighting (red LED), bi-directional lighting (red LED), direct lighting (white LED), polarized lighting (white LED); Smart scanning mode is set by default, and auto polling of lights is supported according to the code reading scene. |
| Laser wavelength | 650 nm |
Environment and compliance
| Ingress protection | IP67 |
|---|---|
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Certification | CE, KC |
Electrical
| Power supply | 12 VDC |
|---|---|
| Current consumption | 0.7 A (max.), 0.47 A (typical) |
| Laser output power (max.) | 1 mW |
Mechanical

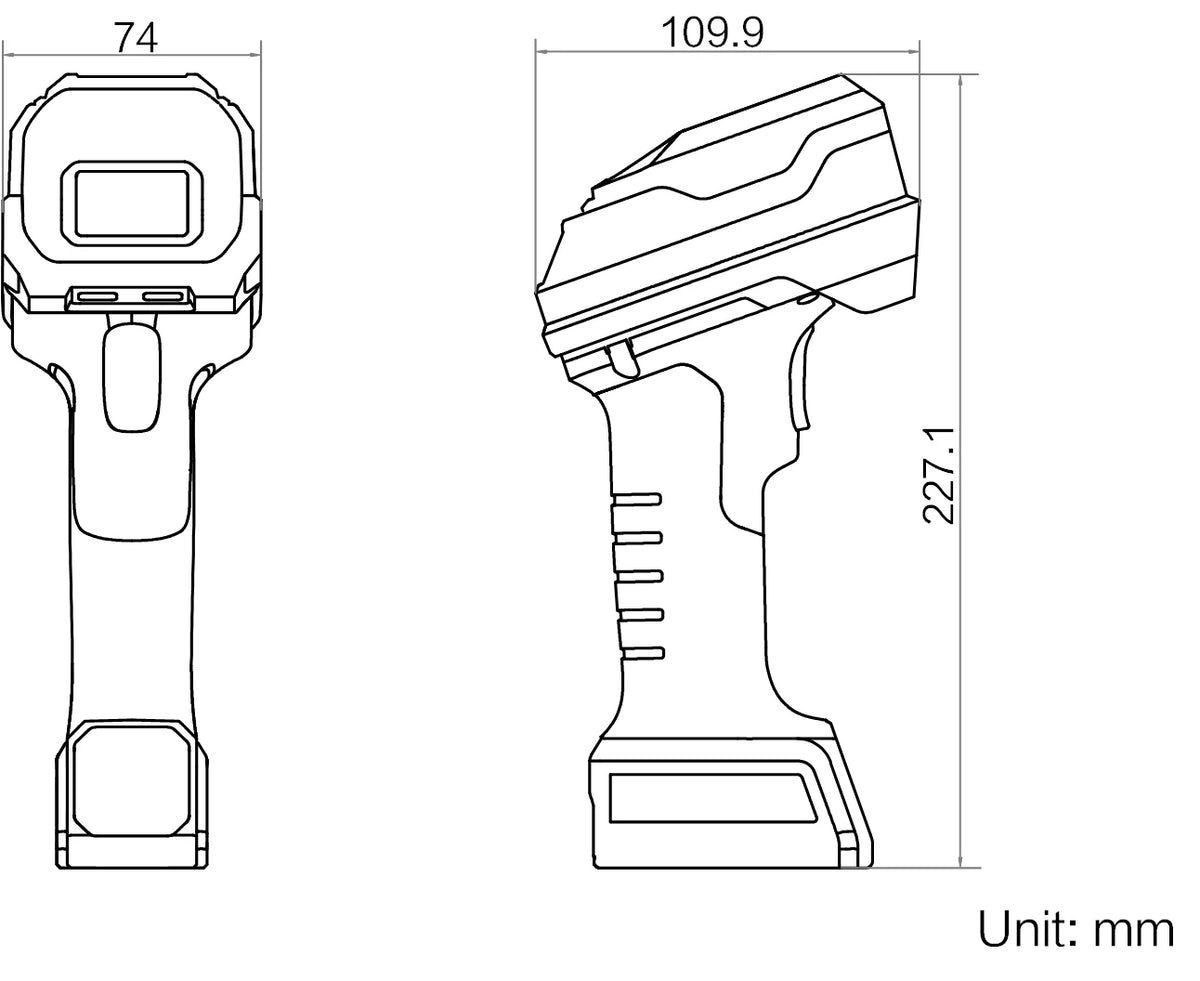

| Dimension | 74 mm × 109.9 mm × 227.1 mm (2.9" × 4.3" × 8.9") |
|---|---|
| Weight | Approx. 490 g (1.1 lb.) (without cable) |
| Drop height | Dropping: 2.5 m, 50 times; Rolling: 0.5 m, 20000 times |
| Pulse width | 6.6 ms |
| Shipping weight (estimated) | 0.79 kg |
