Hikrobot MV-ID3060RM-08M-RBN 6 MP rolling shutter, 8 mm focal length, Red light, Semi-polarized industrial code reader
  • Hikrobot MV-ID3060RM-08M-RBN 6 MP rolling shutter, 8 mm focal length, Red light, Semi-polarized industrial code reader

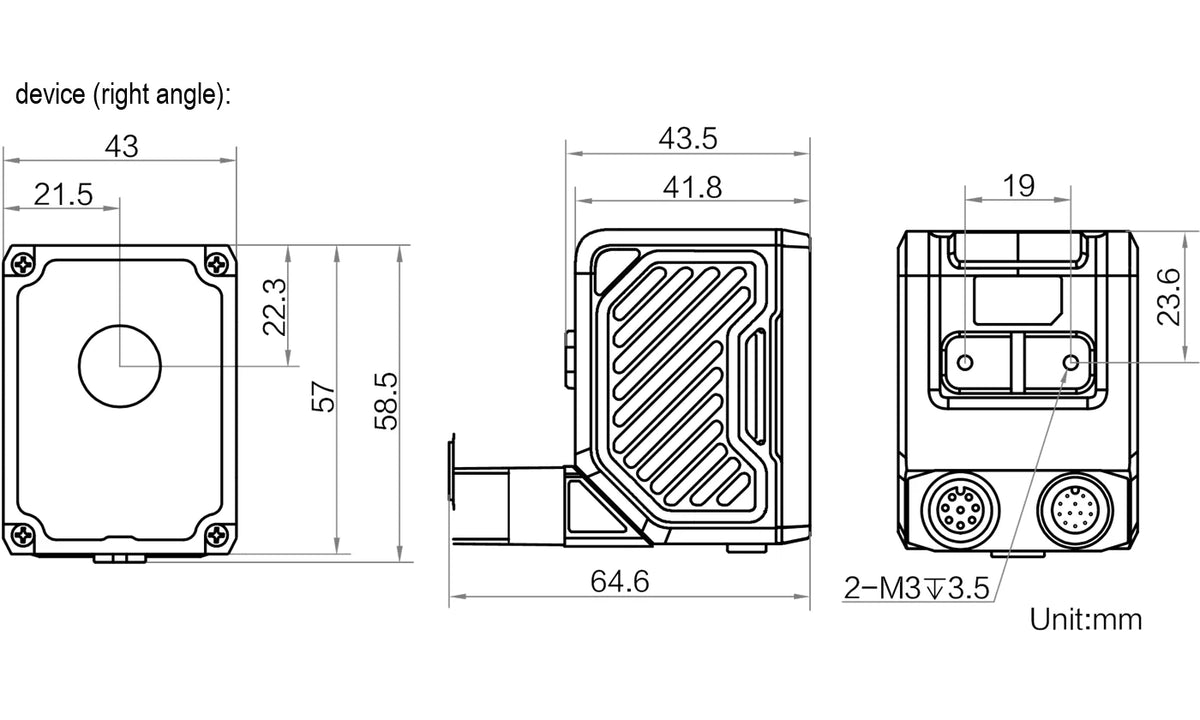

  • MV-ID3060RM-08M-RBN dimensions (mm)

Fixed code readers

Hikrobot MV-ID3060RM-08M-RBN 6 MP rolling shutter, 8 mm focal length, Red light, Semi-polarized industrial code reader

Model MV-ID3060RM-08M-RBNHikrobot

  • Resolution3200 × 1920
  • InterfaceFast Ethernet(100 Mbit/s)
  • Speed20 fps
  • Lens mountM12
  • Focal length8 mm
$1,979.00

Ships in 2-3 weeks

0.36 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Fixed code readers

MV-ID3060RM-08M-RBN: resolution 3200 x 1920, max. frame rate 20 fps, focal length 8 mm, field of view 42°(H) x 26°(V).

Hikrobot MV-ID3060RM-08M-RBN 6 MP rolling shutter, 8 mm focal length, Red light, Semi-polarized industrial code reader. Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions. Carefully selected sensor for high-speed capture of high-quality images.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-ID3060RM-08M-RBN
BrandHikrobot
Lens capClear + polarized, Clear optional, Polarizing lens cover
IndicatorDevice body indicator, reading result indicator

Optics

Focal length8 mm
Field of view42°(H) x 26°(V)

Sensor and imaging

Symbologies1D code: Code 39, Code 93, Code 128 (incl. GS1-128), CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode; Matrix 2D code: QR Code (incl. GS1-QR), Data Matrix (incl. GS1-DM), MicroQR, AZTEC, HanXin, etc.; Stacked 2D code: PDF417, MicroPDF417
Max. frame rate20 fps
Max. reading speed36 codes/sec
Sensor typeRolling shutter, Mono, 1/2.4”, 2 μm × 2 μm
Resolution3200 × 1920
Exposure time540 μs ~ 200 ms
Gain0 ~ 40 dB
Aiming systemRed LED

Interfaces and I/O

Data interfaceFast Ethernet(100 Mbit/s)
Communication protocolSmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, Ethernet/IP, ModBus, UDP, FINS
Digital I/O12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1.; Triggering the device is supported via pressing the top button.
Client softwareIDMVS

Light

Light sourceRed spot light, Spot light: white/blue/IR/UV optional

Environment and compliance

Ingress protectionIP67 (under proper installation of waterproof lens cap)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
Vibration resistanceBare unit, 10 Hz ~ 55 Hz, Full amplitude 1.5 mm, X, Y, Z directions, 2 h each (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Shock resistanceDevice only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)
CertificationCE, RoHS, KC

Electrical

Power supply12 - 24 VDC
Power consumptionAvg. power: 5 W @ 24 VDC (built-in light on); Max. power: 19 W @ 24 VDC (built-in light on)

Mechanical

Lens mountM12-mount, mechanical focus
Shell materialMetal
DimensionStraight angle: 80.1 mm × 43 mm × 43.5 mm (3.2" × 1.7" × 1.7"); Right angle: 58.5 mm × 43 mm × 64.6 mm (2.3" × 1.7" × 2.5")
WeightApprox. 185 g
Shipping weight (estimated)0.36 kg

Engineering data

The MV-ID3060RM-08M-RBN at a glance

The numbers that set this model apart, taken from its own printed specifications.

Resolution3200 × 1920 px
Max. frame rate20 fps
Max. reading speed36 codes/s
Focal length8 mm
Ingress protectionIP67
Power consumption5 Wavg. at 24 V DC; max. 19 W
