Hikrobot MV-ID3016XM-08L-RBN ID3000mini, 1.6 MP resolution, 8 mm focal length, Red light, Liquid lens focus

Model MV-ID3016XM-08L-RBNHikrobot

Resolution1408 × 1024
InterfaceFast Ethernet(100 Mbit/s)
Speed60 fps
Lens mountD14
Focal length8 mm

$1,979.00

Ships in 2-3 weeks

0.37 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable models:

1408 x 1024 fixed code reader, 60 fps, 110 codes/s, 8 mm lens (LS-CRD-0011)$1,165.00
1408 x 1024 fixed code reader, 60 fps, 45 codes/s, 6.7 mm lens (LS-CRD-0010)$500.00
1408 x 1024 fixed code reader, 60 fps, 84 codes/s, 6 mm lens (LS-CRD-0008)$735.00

Ask an engineer Browse Fixed code readers

MV-ID3016XM-08L-RBN: resolution 1408 x 1024, max. frame rate 60 fps, focal length 8 mm, field of view 33°(H) x 29°(V).

Hikrobot MV-ID3016XM-08L-RBN ID3000mini, 1.6 MP resolution, 8 mm focal length, Red light, Liquid lens focus. Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions. Carefully selected sensor for high-speed capture of high-quality images.

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

Model	MV-ID3016XM-08L-RBN
Brand	Hikrobot
Lens cap	Polarized + diffuser + full-transparent lens cap
Indicator	Device body indicator, reading result indicator

Optics

Focal length	8 mm
Field of view	33°(H) x 29°(V)

Sensor and imaging

Symbologies	1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, MATRIX25, UPCA, UPCE, MSI, CODE11, INDUSTRIAL25, CHINAPOST, PHARMACODE; 2D code: QR Code, Data Matrix, Micro QR; Stacked code: PDF417
Max. frame rate	60 fps
Max. reading speed	110 codes/s
Sensor type	CMOS, Global shutter, Mono, 1/2.9”, 3.45 μm × 3.45 μm
Resolution	1408 × 1024
Exposure time	25 μs ~ 30000 μs
Gain	0 ~ 24 dB
Aiming system	Orange LED

Interfaces and I/O

Data interface	Fast Ethernet(100 Mbit/s)
Communication protocol	SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, Fins, UDP
Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1.; Triggering the device is supported via pressing the top button.
Client software	IDMVS

Light

Light source	Red spot light and white diffuse light, Spot light: white/blue/IR optional

Environment and compliance

Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Operating temp.: 0 to 45 °C; Storage temp.: -30 to 70 °C
Humidity	20% RH to 95% RH (no condensation)
Vibration resistance	Bare unit, 10 Hz ~ 55 Hz, Full amplitude 1.5 mm, X, Y, Z directions, 2 h each (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Shock resistance	Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)
Certification	CE, RoHS, KC

Electrical

Power supply	24 VDC
Power consumption	Avg.: 6.2 W @ 24 VDC (light source enabled); Max.: 16.8 W @ 24 VDC (light source enabled)

Mechanical

Lens mount	D14-mount, liquid lens focusing
Shell material	Metal

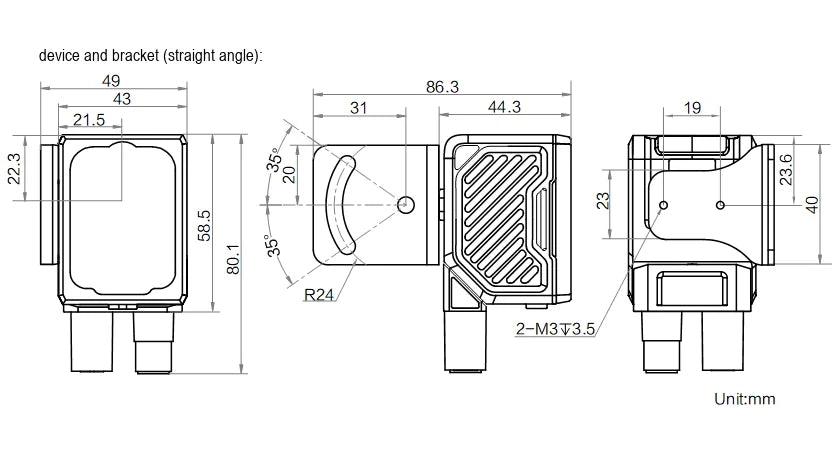

Dimension	Straight angle: 80.1 mm × 43 mm × 44.3 mm (3.2" × 1.7" × 1.7"); Right angle: 58.5 mm × 43 mm × 65.4 mm (2.3" × 1.7" × 2.6")
Weight	Approx. 195 g (0.4 lb.)
Shipping weight (estimated)	0.37 kg

Downloads

Features

Frame rate up to 60 fps
Exposure time 25 µs to 30000 µs
Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
Carefully selected sensor for high-speed capture of high-quality images
Liquid-lens models combine with ToF for fast image setup and real-time focusing
Extremely easy to use: one-click auto-tuning
Top and side status indicators plus projected light: code-reading status visible from every side
Rotatable tail cable design adapts flexibly to tight spaces
Three-way polarized, diffuse and clear illumination for outstanding environmental adaptability
Rich I/O interface for multiple input and output signals
IP67 protection for harsh industrial environments

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

The MV-ID3016XM-08L-RBN at a glance

The numbers that set this model apart, taken from its own printed specifications.

Resolution1408 × 1024 px

Max. frame rate60 fps

Max. reading speed110 codes/s

Focal length8 mm

Ingress protectionIP67

Power consumption6.2 Wavg. at 24 V DC; max. 16.8 W
