Frame grabbers

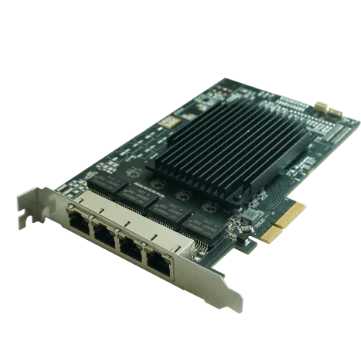

Hikrobot MV-GE1104 4-port GigE frame grabber
Model MV-GE1104Hikrobot
- InterfacePCI-E gen2 ×4
- Size181 mm × 126.3 mm × 21.6 mm
- Ports4 ports
- On-board memory512MB DDR3-RAM
$699.00
Ships in 2-3 weeks
0.38 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-GE1104 4-port GigE frame grabber. Supports GigE Vision, up to 1 Gbps per port Compatible with standard network stack protocols
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-GE1104 |
|---|---|
| Brand | Hikrobot |
| Interconnect | PCI-E gen2 ×4 |
| Bus indicator | 3 |
| Standard | GigE Vision |
| Camera type supported | GigE industrial camera |
| Camera quantity supported | 4 at most |
| Camera connection speed | 1 Gbps |
| Stream | 4 |
| Stream indicator | 4 pairs |
| Jumbo frame | 2/4/8 KB |
Interfaces and I/O
| Interface | 4 × RJ45 |
|---|---|
| Client software | MVS |
Environment and compliance
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
|---|---|
| Humidity | 10% RH to 95% RH (no condensation) |
| Certification | WEEE, RoHS, REACH |
Computing
| On-board memory | 512MB DDR3-RAM |
|---|---|
| Operating system | Windows 7/10/11, Ubuntu 18.04 to 24.04 on 64-bit Linux |
Electrical
| Power consumption | 10 W |
|---|
Mechanical
| Delivery bandwidth | 860 MB/s (peak bandwidth), 800 MB/s (sustained bandwidth) |
|---|---|
| Dimension | 181 mm × 126.3 mm × 21.6 mm |
| Shipping weight (estimated) | 0.38 kg |
