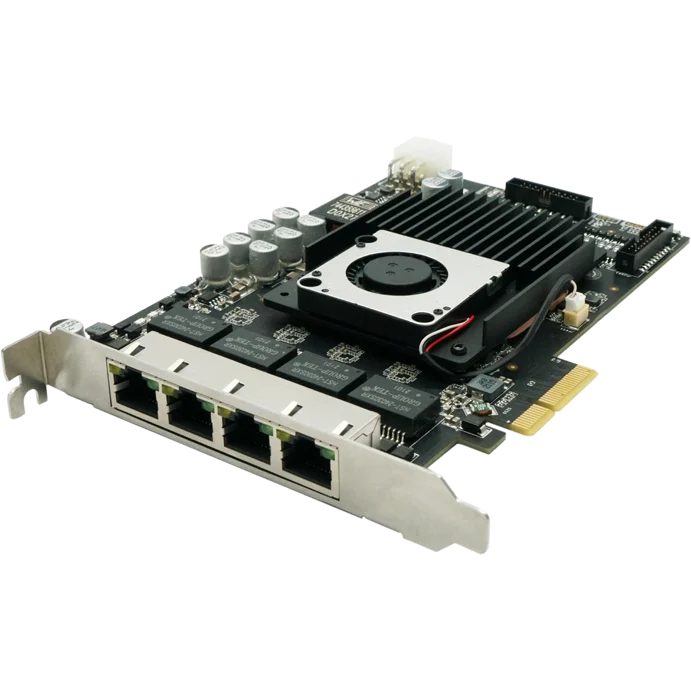

Hikrobot MV-GE1004 Quad GigE Frame Grabber

Model MV-GE1004Hikrobot

InterfacePCI-E gen2 × 4
Ports4 ports
On-board memory1 GB DDR3-RAM
Camera type supportedGigE industrial camera

$699.00

Ships in 2-3 weeks

0.38 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-GE1004 Quad GigE Frame Grabber. Supports GigE Vision protocol with each GigE interface accessing up to 1 Gbps data transfer speed. Supports PoE with each channel providing 15 W at most.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-GE1004
Brand	Hikrobot
Interconnect	PCI-E gen2 × 4
Indicator	1
Standard	GigE Vision
Camera type supported	GigE industrial camera
Camera quantity supported	4 at most
Camera connection speed	1 Gbps
Stream	4
Stream indicator	4 pairs
Jumbo frame	9 KB

Sensor and imaging

Pixel format	Mono 8/10/10p/12/12p; Bayer 8/10/10p/12/12p; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8

Interfaces and I/O

Interface	RJ45 × 4
I/O Type	Provides 24 I/O connectors, including opto-isolated input × 4 (4.5 VDC to 28 VDC), opto-isolated output × 4 (4.5 VDC to 28 VDC), RX422 input × 4, TX422 output × 4, TTL input × 4, and TTL output × 4
Connector	Female header
Client software	MVS

Environment and compliance

Temperature	Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
Humidity	10% RH to 95% RH (no condensation)
Certification	WEEE, RoHS, REACH

Computing

On-board memory	1 GB DDR3-RAM
Operating system	Windows 7/10/11, Ubuntu 16.04 to 20.04 on Linux

Electrical

Power output	PoE, each channel provides 15 W at most (ATX 6-pin power required for PoE)
Power consumption	Typ. 10 W (without PoE)

Mechanical

Delivery bandwidth	1720 MB/s (max. transmission bandwidth), 1600 MB/s (sustained transmission bandwidth)
Dimension	181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9")
Shipping weight (estimated)	0.38 kg

Downloads

Features

Supports GigE Vision protocol with each GigE interface accessing up to 1 Gbps data transfer speed.
Supports PoE with each channel providing 15 W at most.
Various indicators indicate frame grabber status in real time.
Adopts multiple I/O connectors for input and output.
Provides SDK for secondary development.
Complies with Genlcam standard.
