Frame grabbers

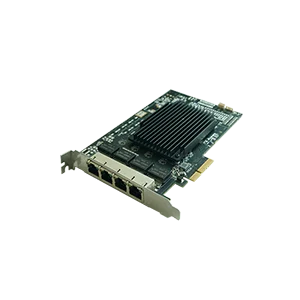

Hikrobot MV-GE1100 Frame Grabbers
Model MV-GE1100Hikrobot
- InterfacePCI-E gen2 × 4
- On-board memory512 MB DDR3-RAM
- Bus indicator3
- Camera type supportedGigE industrial camera
$699.00
Ships in 2-3 weeks
0.38 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-GE1100 Frame Grabbers. Supports GigE Vision protocol with each GigE interface accessing up to 1 Gbps data transfer speed. Complies with general protocol stack.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-GE1100 |
|---|---|
| Brand | Hikrobot |
| Interconnect | PCI-E gen2 × 4 |
| Bus indicator | 3 |
| Standard | GigE Vision |
| Camera type supported | GigE industrial camera |
| Camera quantity supported | 4 at most |
| Camera connection speed | 1 Gbps |
| Stream | 4 |
| Stream indicator | 4 pairs |
Interfaces and I/O
| Interface | RJ45 × 4 |
|---|---|
| Client software | MVS |
Environment and compliance
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
|---|---|
| Humidity | 10% RH to 95% RH (no condensation) |
| Certification | WEEE, RoHS, REACH, CE, KC |
Computing
| On-board memory | 512 MB DDR3-RAM |
|---|---|
| Operating system | Windows 7/10/11, Ubuntu 18.04 to 24.04 on 64-bit Linux |
Electrical
| Power consumption | Typ. 10 W |
|---|
Mechanical
| Delivery bandwidth | 860 MB/s (max. transmission bandwidth); 800 MB/s (sustained transmission bandwidth) |
|---|---|
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Shipping weight (estimated) | 0.38 kg |
