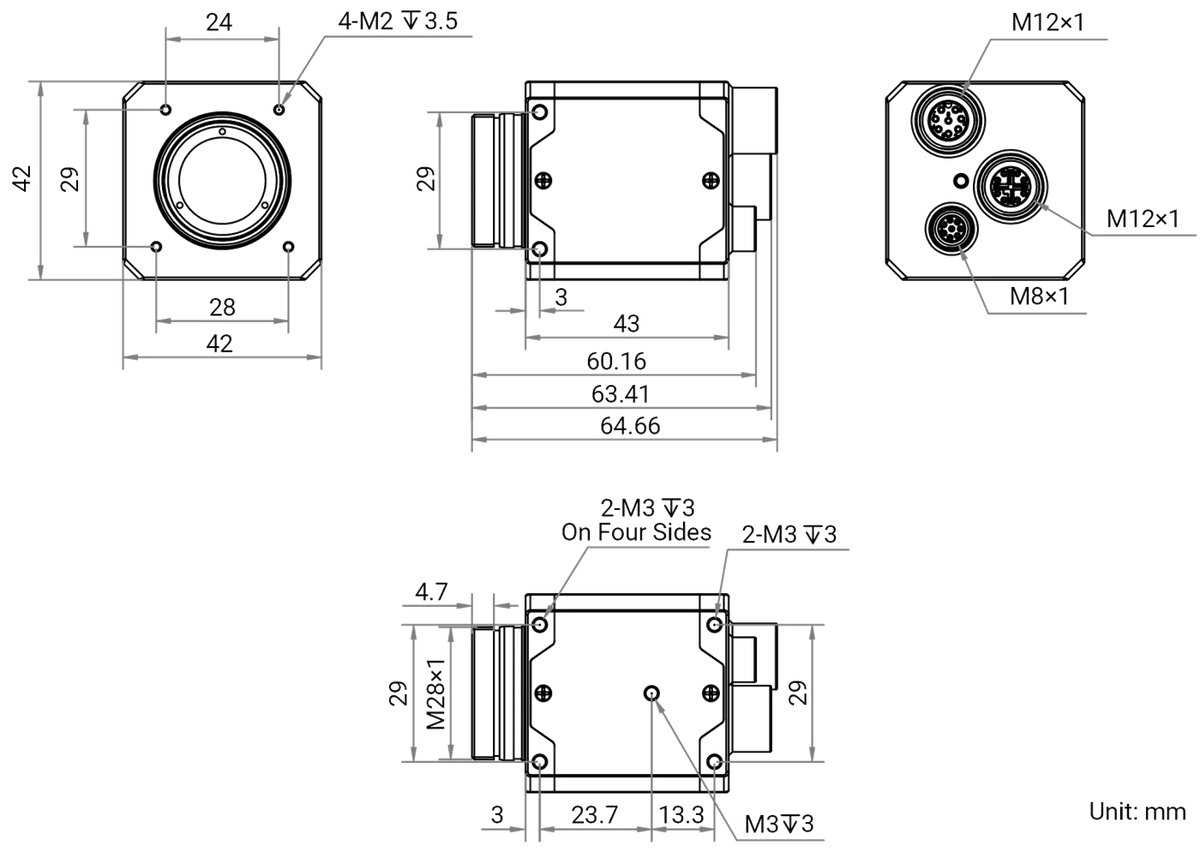

  • MV-CT2CG0200/R/NN/NN dimensions (mm)

Area scan cameras

Hikrobot MV-CT2CG0200/R/NN/NN 20MP Area Scan Camera, 3rd Gen., GigE, Color, MAX

Model MV-CT2CG0200/R/NN/NNHikrobot

  • Resolution5472 × 3648
  • SensorCMOS, rolling shutter
  • Lens mountC-mount
  • Mono / colourColor
  • Pixel size2.4 μm × 2.4 μm
$1,409.00

Ships in 2-3 weeks

0.27 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Area scan cameras

MV-CT2CG0200/R/NN/NN: resolution 5472 x 3648; sensor type CMOS, rolling shutter; sensor size 1"; data interface type 8-pin M12 X-Code waterproof aviation connector; mono/color Color.

Hikrobot MV-CT2CG0200/R/NN/NN 20MP Area Scan Camera, 3rd Gen., GigE, Color, MAX. The devices with PRO version and MAX version support waterproof connector. The devices with PRO version and MAX version adopt precision temperature control design for fast heat balance.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CT2CG0200/R/NN/NN
BrandHikrobot
CompatibilityGigE Vision V2.0, GenICam

Sensor and imaging

Sensor typeCMOS, rolling shutter
Sensor modelSony IMX183
Pixel size2.4 μm × 2.4 μm
Sensor size1"
Resolution5472 × 3648
Max. frame rate5.9 fps @ 5472 × 3648 Bayer GB 8; 22.3 fps @ 5472 × 3648 Bayer GB 8 (lossless compression mode enabled)
Dynamic range65.9 dB
SNR41.3 dB
Gain0 dB to 24 dB
Exposure time46 μs to 2.78 sec
Exposure modeOff/Once/Continuous exposure mode, supports Trigger Width and Trigger Controlled, supports Rolling and Global Reset
Mono/colorColor
Pixel formatMono 8; Bayer GB 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Data interface type8-pin M12 X-Code waterproof aviation connector
Control interface8-pin M12 A-Code waterproof aviation connector
Digital I/O8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client softwareMVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protectionIP67 (under proper lens and lens cap installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux

Electrical

Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 2.3 W @ 24 VDC (fast heat balance not enabled and external device not be controlled)

Mechanical

Lens mountC-mount
Dimension42 mm × 42 mm × 43 mm (1.7" × 1.7" × 1.7")
WeightApprox. 120 g (0.3 lb.)
Shipping weight (estimated)0.27 kg

Engineering data

Field of view and resolution with the MV-CT2CG0200/R/NN/NN

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area13.13 × 8.76 mm1" optical format
Lens image circle needed≥ Ø 15.8 mmC-mount
Pixel pitch2.4 µm5472 x 3648 px
Image data at max frame rate118 MB/sCalculated: 5.9 fps × 5472 × 3648 px at 8 bit · GigE carries 125 MB/s nominal
With a 16 mm lens at 500 mm410 × 274 mm0.075 mm per pixel
Dynamic range65.9 dB
SNR41.3 dB
Power consumption2.3 Wtyp. at 24 V DC
ShutterRolling
Exposure range46 µs to 2.78 s
Weight120 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
8 mm492 × 328 mm0.09 mm per pixel821 × 548 mm0.15 mm per pixel1641 × 1095 mm0.3 mm per pixel
12 mm328 × 219 mm0.06 mm per pixel547 × 365 mm0.1 mm per pixel1094 × 730 mm0.2 mm per pixel
16 mm246 × 164 mm0.045 mm per pixel410 × 274 mm0.075 mm per pixel821 × 548 mm0.15 mm per pixel
25 mm158 × 105 mm0.029 mm per pixel263 × 175 mm0.048 mm per pixel525 × 350 mm0.096 mm per pixel
35 mm113 × 75.1 mm0.021 mm per pixel188 × 125 mm0.034 mm per pixel375 × 250 mm0.069 mm per pixel
50 mm78.8 × 52.6 mm0.014 mm per pixel131 × 87.6 mm0.024 mm per pixel263 × 175 mm0.048 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.
