Area scan cameras

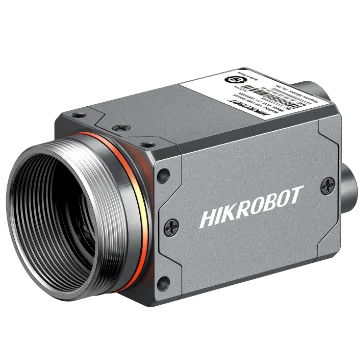

Hikrobot MV-CT200R-5GM01-PRO 20 MP GigE area scan camera, Gen 3, Mono, PRO

Model MV-CT200R-5GM01-PROHikrobot

Resolution5472 × 3648
SensorCMOS, rolling shutter
Interface8-pin M12 X-coded waterproof connector
Lens mountC-mount
Mono / colourMono
Pixel size2.4 μm × 2.4 μm

$1,409.00

Ships in 2-3 weeks

0.27 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CT200R-5GM01-PRO 20 MP GigE area scan camera, Gen 3, Mono, PRO. PRO and MAX versions feature fully waterproof connectors PRO and MAX versions feature precise temperature control for fast thermal equilibrium

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CT200R-5GM01-PRO
Brand	Hikrobot
Compatibility	GigE Vision V2.0, GenICam

Sensor and imaging

Sensor type	CMOS, rolling shutter
Sensor model	Sony IMX183
Pixel size	2.4 μm × 2.4 μm
Sensor size	1”
Resolution	5472 × 3648
Max. frame rate	5.9 fps @5472 × 3648 Mono 8; 22.3 fps @ 5472 × 3648 Mono 8 (lossless compression on)
Dynamic range	65.9 dB
SNR	41.3 dB
Gain	0 dB ~ 24 dB
Exposure time	46 μs ~ 2.78 sec
Exposure mode	Auto exposure supported, Manual exposure, One-shot exposure mode, Trigger Width and Trigger Controlled supported; Rolling and Global Reset modes supported
Mono/color	Mono
Pixel format	Mono 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Data interface type	8-pin M12 X-coded waterproof connector
Console interface	Not supported
Digital I/O	8-pin M8 A-coded connector for power and I/O: 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 bi-directional configurable non-isolated I/O (Line 2)
Client software	MVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protection	IP67 (with lens, cover and cables properly installed)
Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits

Electrical

Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	1.9 W @ 12 VDC (fast thermal balance off)

Mechanical

Lens mount	C-Mount
Dimension	29 mm × 29 mm × 42 mm
Weight	Approx. 124 g
Shipping weight (estimated)	0.27 kg

Downloads

Features

PRO and MAX versions feature fully waterproof connectors
PRO and MAX versions feature precise temperature control for fast thermal equilibrium
PRO and MAX color versions feature multispectral fusion with automatic color correction
MAX version integrates lens and light control: lens focusing and lighting control in one unit
Gigabit Ethernet interface: up to 100 m transmission without a repeater
Compatible with GigE Vision V2.0 and the GenICam standard for seamless integration with third-party software
