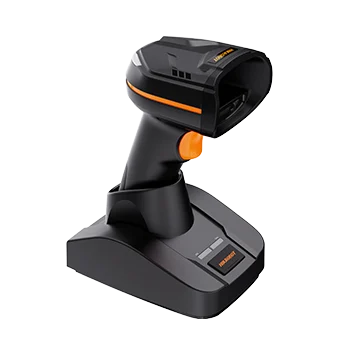

Hikrobot FX-S6001WH-HD-L 1.3 MP wireless industrial handheld code reader

Handheld code readers

Hikrobot MV-BS100-06T-IP/13SR/05RN/US Wireless USB Handheld Code Reader Package

Model MV-BS100-06T-IP/13SR/05RN/USHikrobot

Resolution1280 × 1024
SensorCMOS
InterfaceUSB 2.0, USB 3.0, RS-232, DC terminal1
Focal length4.7 mm

$239.00

Ships in 2-3 weeks

0.42 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-BS100-06T-IP/13SR/05RN/US Wireless USB Handheld Code Reader Package. In-house high-performance barcode algorithm efficiently reads 1D and 2D codes in industrial applications Robust algorithm handles dirty, damaged and low-contrast codes

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-BS100-06T-IP/13SR/05RN/US
Brand	Hikrobot
Min. accuracy	4 mil
Detection angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol contrast	20 %
Battery	3150mAh
Charging time	Powered off: USB 2.0 (5V, 500mA):8.5 h; USB3.0(5V, 1A):8.5 h; DC12 V(12V, 2A):3.5 h
Endurance	13 h (interval scanning, once in 2 seconds)
Prompt	LED indicator, buzzer, vibrator
Static electricity resistant	± 16 kV (air discharge), ± 8 kV (contact discharge)
Laser safety class	Laser 2
Charging time (smart base)	8.5 h(USB)

Optics

Depth of field	Code 39(5 mil):40 mm ~ 160 mm; Code 128(10 mil):10 mm ~ 400 mm; Data Matrix(10 mil):30 mm ~ 200 mm; QR Code(15 mil):15 mm ~ 280 mm; QR Code(20 mil):20 mm ~ 370 mm 1
Field of view	40° (H) × 34° (V)
Focal length	4.7 mm

Sensor and imaging

Symbologies	1D code: Code 39, Code 93, Code 128, GS1- Code128, CodaBar, EAN8, EAN13, ISBN, ISSN, ITF25, ITF14, UPCA, UPCE; 2D code: QR Code, Data Matrix, MicroQR, Aztec, GS1-DM, GS1-QR; Stacked code: PDF417
Sensor type	CMOS
Resolution	1280 × 1024
Aiming system	Cross laser aiming

Interfaces and I/O

Communication mode	Bluetooth BT 5.0, BLE
Wireless range	100 m (open range)
Client software	IDMVS
Communication protocol	SmartSDK, USB(HID/CDC), Bluetooth, Serial (RS-232)
Data interface	USB 2.0, USB 3.0, RS-232, DC terminal1

Light

Ambient illumination	0 ~ 100000 lux
Light source	Red LED
Wavelength	650 nm

Environment and compliance

Ingress protection	IP42
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F); Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)
Humidity	20% RH to 80% RH (no condensation)
Certification	CE, KC
Ingress protection (smart base)	IP40
Humidity (smart base)	20% RH to 80% RH (no condensation)
Temperature (smart base)	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F); Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)

Electrical

Maximum power	1 mW
Power supply	USB: 5 VDC; DC terminal: 12 VDC to 24VDC
Current consumption	USB 2.0: 1.5 A (max. current); 0.14 A (standby current); DC terminal: 0.7 A (max. current); 0.06 A (standby current)

Mechanical

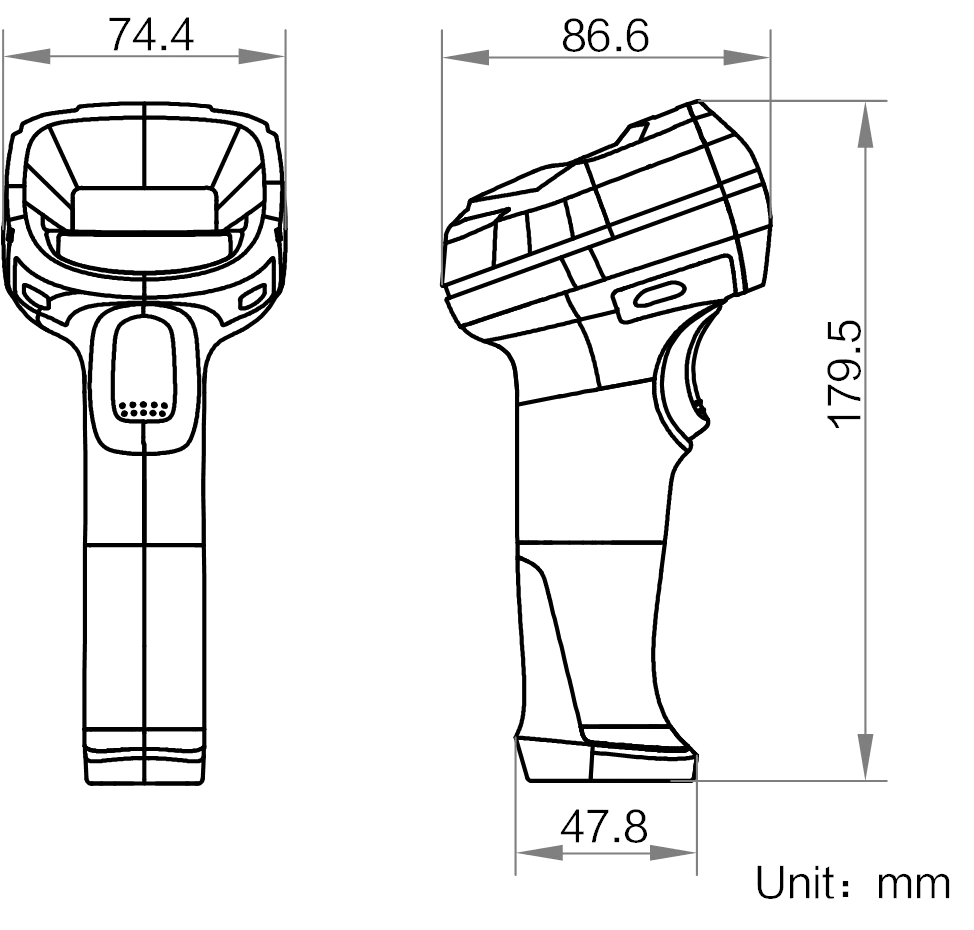

Dimension	74.4 mm × 86.6 mm × 179.5 mm
Weight	Approx. 230 g (0.5 lb.)
Drop height	Drop: 1.8 m, 50 times; Tumble: 0.5 m, 1200 times
Pulse width	8 ms
Dimension (smart base)	100.9 mm × 131.8 mm × 83.6 mm
Weight (smart base)	Approx. 180 g (0.4 lb.)
Shipping weight (estimated)	0.42 kg

Downloads

Datasheet (PDF, Chinese)MV-BS100-06T-IP/13SR/05RN/US · 846 KB

Features

In-house high-performance barcode algorithm efficiently reads 1D and 2D codes in industrial applications
Robust algorithm handles dirty, damaged and low-contrast codes
Continuous and batch reading modes greatly improve efficiency in multi-code scenarios
Bluetooth 5.0 wireless: cable-free for more efficient, lightweight operation
With the smart base, connects to IDMVS for parameter configuration and device management
