Hikrobot FX-S6001WH-HD-U 1.3 MP wireless industrial handheld code reader

Model FX-S6001WH-HD-UHikrobot

Resolution1280 × 1024
SensorCMOS, global shutter
InterfaceUSB2.0, DC terminal
Speed50 fps
Pixel size3 µm × 3 µm
Focal length4.7 mm

$239.00

Ships in 2-3 weeks

0.42 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot FX-S6001WH-HD-U 1.3 MP wireless industrial handheld code reader. In-house high-performance barcode algorithm efficiently reads 1D and 2D codes in industrial applications Robust algorithm handles dirty, damaged and low-contrast codes

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	FX-S6001WH-HD-U
Brand	Hikrobot
Min. accuracy	3 mil
Detection angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol contrast	20 %
Bluetooth	BT 5.0, 2.4 to 2.4835 GHz band, BLE
Battery	3150mAh, Rechargeable lithium battery
Charging time	8.5 h (USB)
Scan rate	29000 scans (full charge)
Prompt	LED indicator, buzzer, vibrator

Optics

Depth of field	Code 128 (3 mil): 35 to 80 mm; Code 128 (10 mil): 10 to 170 mm Code 39 (5 mil): 15 to 100 mm Code 39 (20 mil): 20 to 250 mm Data Matrix (10 mil): 5 to 115 mm QR Code (20 mil): 20 to 190 mm
Field of view	Horizontal 40°, Vertical 34°
Focal length	4.7 mm

Sensor and imaging

Symbologies	1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14; UPCA, UPCE, etc.; 2D code: QR Code, Data Matrix, etc.
Max. frame rate	50 fps
Sensor type	CMOS, global shutter
Pixel size	3 µm × 3 µm
Sensor size	1/4”
Resolution	1280 × 1024
Aiming system	Cross laser aiming

Interfaces and I/O

Wireless range	70 m (open range)
Communication protocol	Code reader: Bluetooth; Base: SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Bluetooth
Data interface	USB2.0, DC terminal
Client software	IDMVS

Light

Ambient illumination	0 ~ 100000 lux
Light source	Red LED

Environment and compliance

Ingress protection	IP42
Temperature	Operating temperature: -20 to 50 ℃, Storage temperature: -30 to 60 ℃, Battery charging temperature 0 to 45℃
Humidity	20% RH to 80% RH (no condensation)
Certification	CE, KC

Electrical

Power supply	Reader: 3.8 VDC (battery); Base: 5 VDC (USB); 12 to 24 VDC (DC terminal)
Max. power consumption	Code reader: standby mode: 0.8 W @ 3.8 VDC; Operating mode: 1.6 W @ 3.8 VDC; Sleep mode: 0.6 W@; 3.8 VDC; Base: 4.5 W@ 5 VDC (USB); 6.6 W@ 12 VDC (DC terminal)

Mechanical

Lens mount	M5.8-Mount

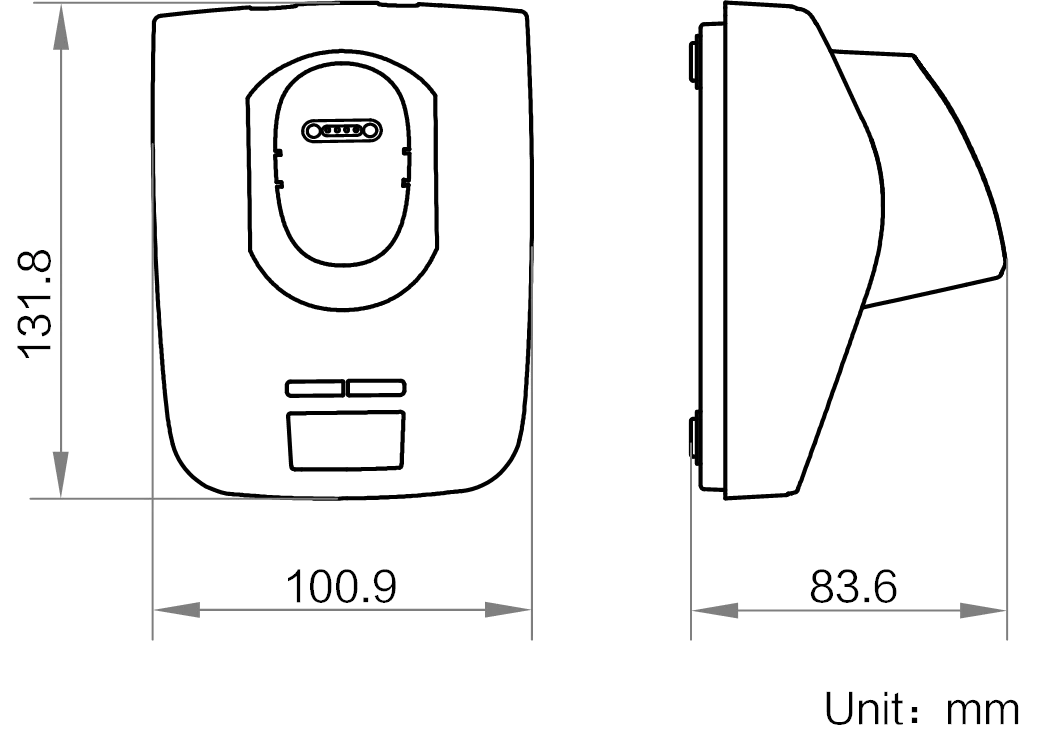

Dimension	Code reader: 74.4 mm × 86.6 mm × 179.5 mm; Base: 100.9 mm × 131.8 mm × 83.6 mm
Weight	Code reader: approx. 230 g; Base: approx. 180 g
Drop height	1.5 m, 50+ drops
Shipping weight (estimated)	0.42 kg

Downloads

Datasheet (PDF, Chinese)FX-S6001WH-HD-U · 658 KB

Features

In-house high-performance barcode algorithm efficiently reads 1D and 2D codes in industrial applications
Robust algorithm handles dirty, damaged and low-contrast codes
Continuous and batch reading modes greatly improve efficiency in multi-code scenarios
Bluetooth 5.0 wireless: cable-free for more efficient, lightweight operation
With the smart base, connects to IDMVS for parameter configuration and device management
