Rendered illustration: the actual product may differ in appearance.
Machine vision lenses

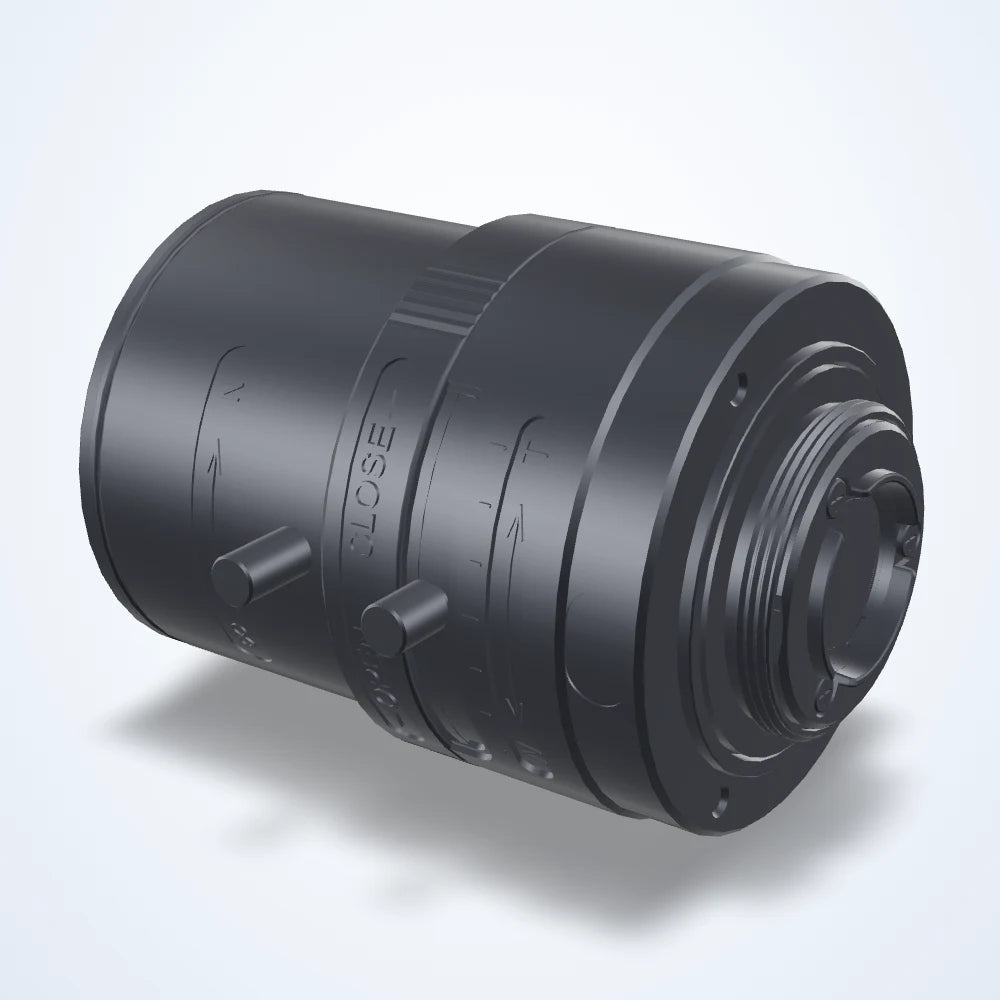

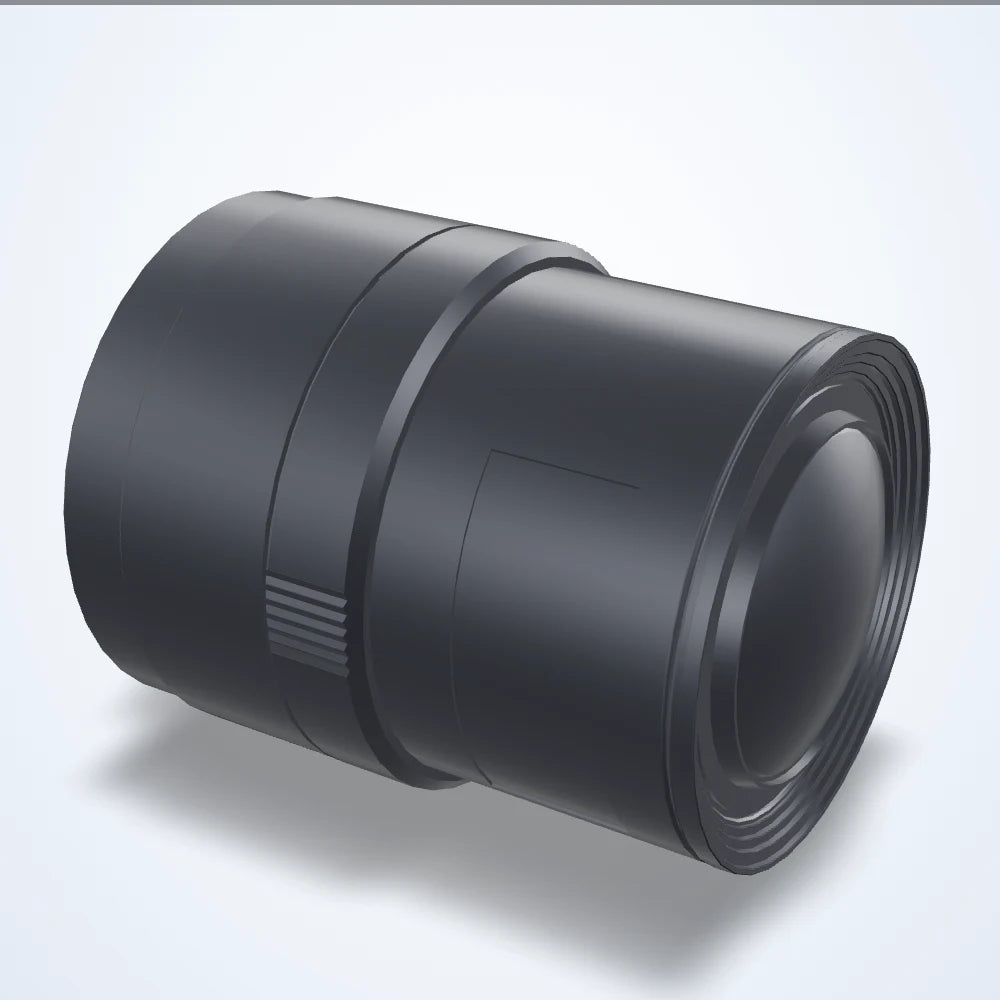

2.8 - 8.5 mm lens, 1/2.7", CS-mount (LS-ZML-0001)
Model LS-ZML-0001
- Focal length2.8 - 8.5 mm
- Magnification3×
- MountCS-mount
- Sensor1/2.7"
- Aperturef/1.2
- Resolution5
$149.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 500 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-ZML-0001 |
|---|---|
| Minimum object distance | 500 mm |
| Aov @ 1/2.7″ h°×v°×d° | 124.7 × 63.9 × 150.4° 41.3 × 22.7 × 47.1° |
| Aov @ 1/3″ h°×v°×d° | 99.1 × 72.3 × 130.4° 34.1 × 25.6 × 42.8° |
| Aov @ 1/4″ h°×v°×d° | 72.3 × 53.5 × 92.1° 25.6 × 19.1 × 32.0° |
| Lens type | Variable Focal Length |
| Spectrum | Visible + NIR |
| Zoom control | Manual |
| Zoom range | 2.8 mm - 8.5 mm |
Optics
| Focal length | 2.8 - 8.5 mm |
|---|---|
| Magnification | 3× |
| Aperture (max) | f/1.2 |
| Back focal length | 7.3 mm |
| Filter thread | No Filter Threads |
| Focus control | Manual |
| Focus range | 0.5 m - ∞ |
| Image circle | 6.6 mm |
| Image size dimensions | 3.2 mm x 5.8 mm |
| Iris control | Manual |
Sensor and imaging
| Sensor format | 1/2.7" |
|---|---|
| Resolution (MP) | 5 |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|

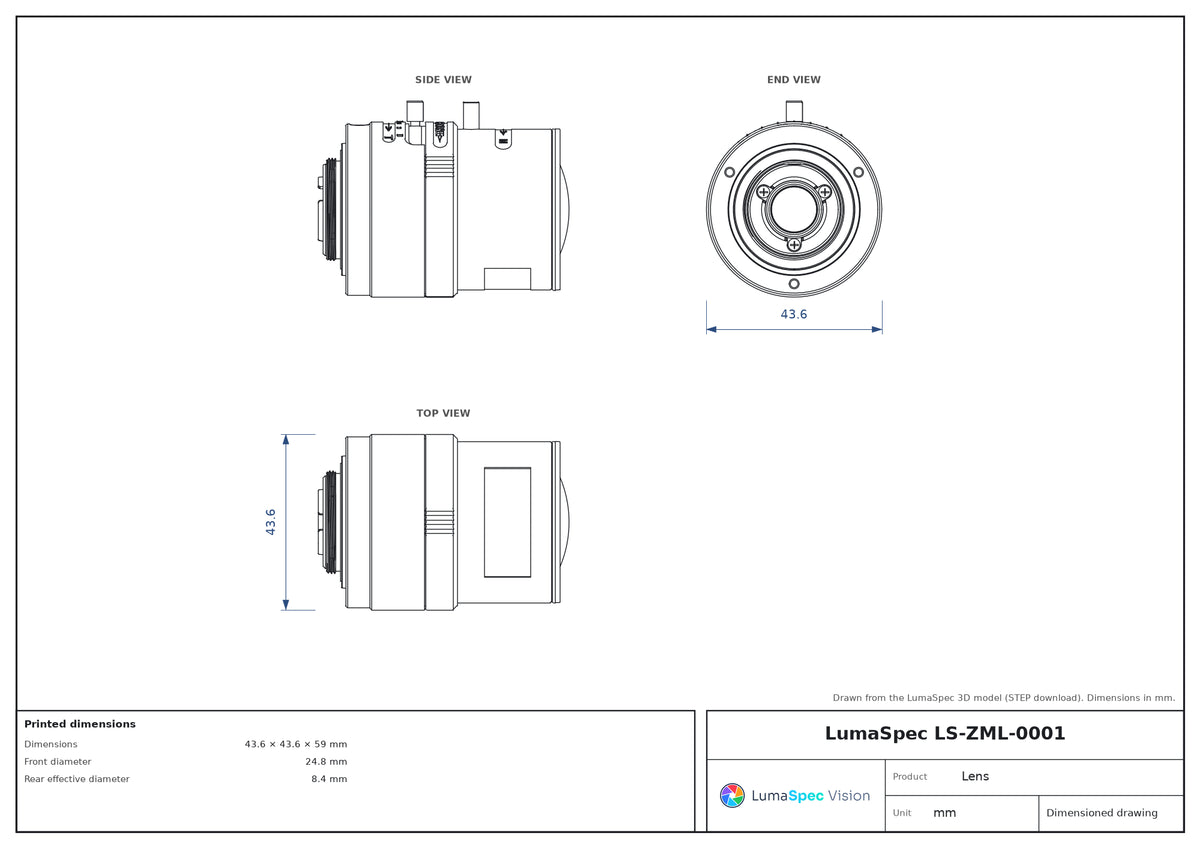

Mechanical
| Mount | CS-mount |
|---|---|
| Dimensions | 43.6 × 43.6 × 59 mm |
| Front diameter | 24.8 mm |
| Rear effective diameter | 8.4 mm |
| Weight | 64 |
