3.9 - 10 mm lens, 1/1.8", CS-mount (LS-ZML-0016)

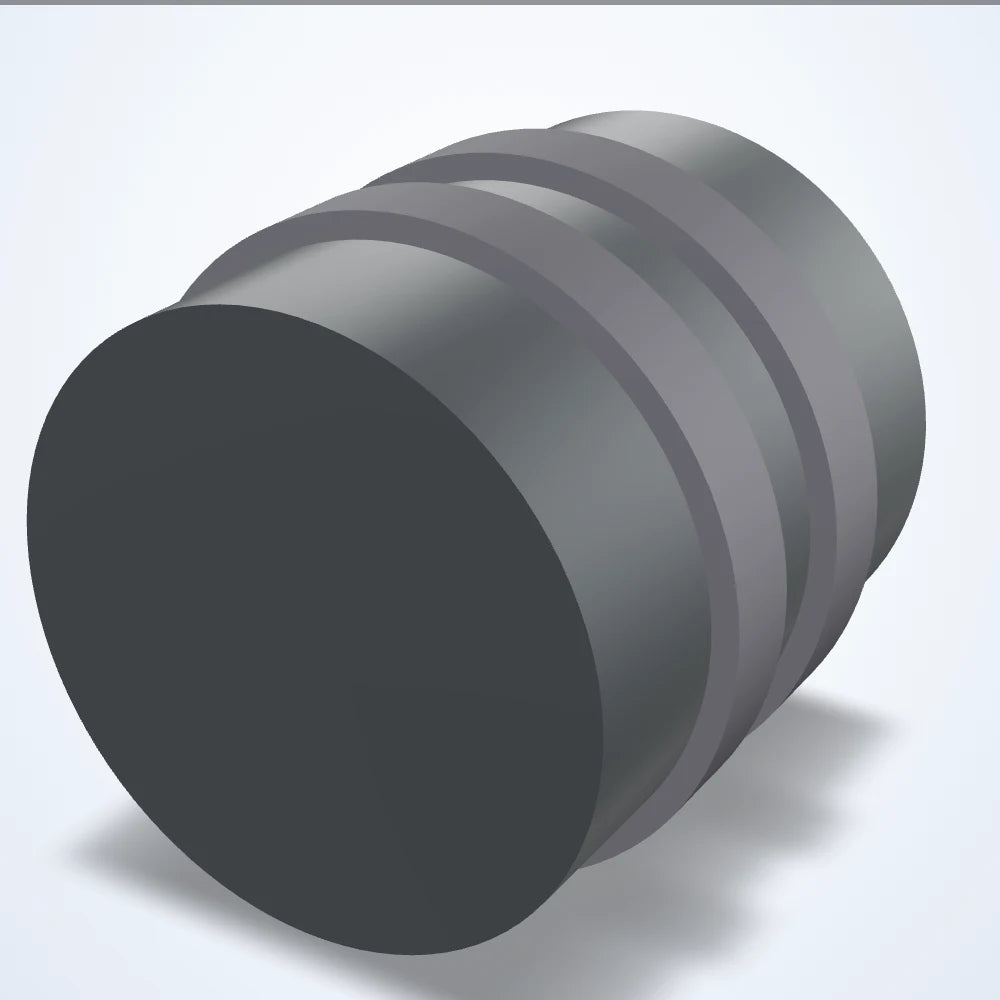

  • 3.9 - 10 mm lens, 1/1.8", CS-mount (LS-ZML-0016)

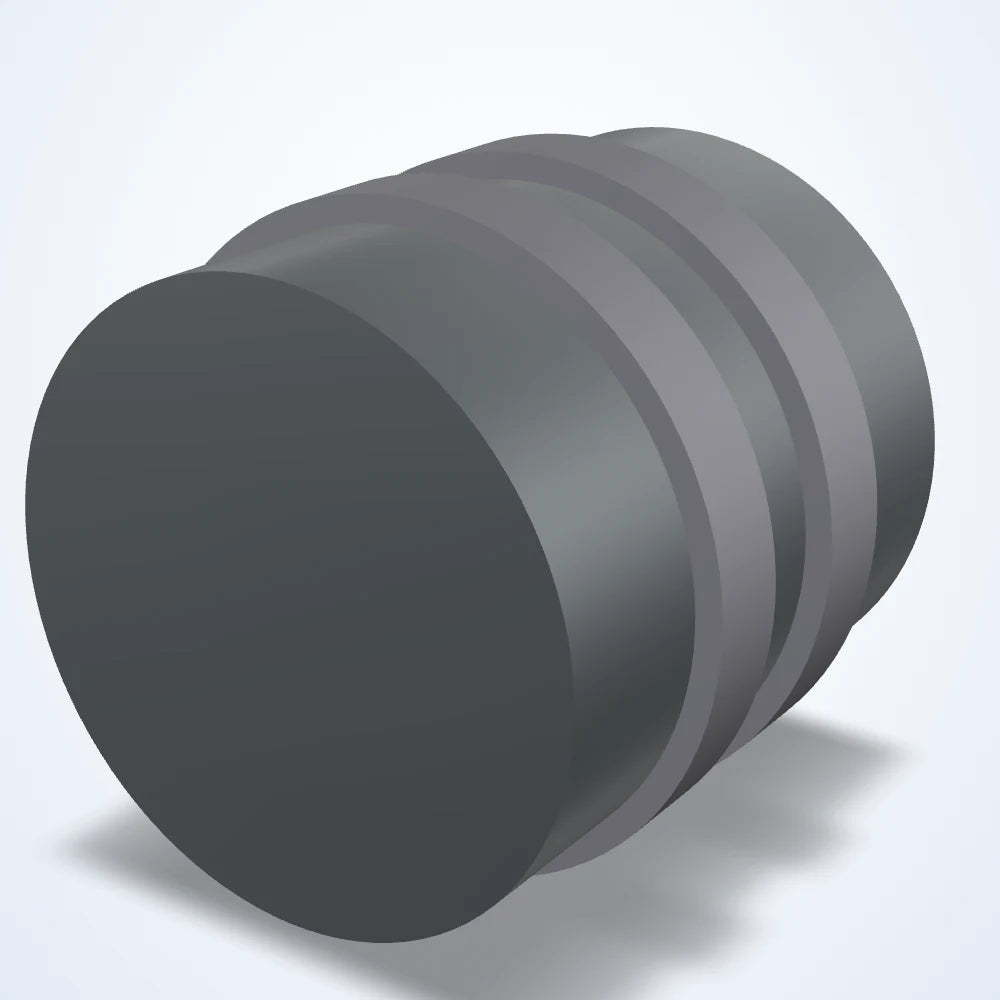

  • 3.9 - 10 mm lens, 1/1.8", CS-mount (LS-ZML-0016) - view 2

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

3.9 - 10 mm lens, 1/1.8", CS-mount (LS-ZML-0016)

Model LS-ZML-0016

  • Focal length3.9 - 10 mm
  • Magnification3×
  • MountCS-mount
  • Sensor1/1.8"
  • Aperturef/1.5
  • Resolution8
$219.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

3.9 - 10 mm lens, 1/1.8", CS-mount (LS-ZML-0016)LS-ZML-0016

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Machine vision lens for industrial cameras. Minimum object distance 800 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-ZML-0016
Minimum object distance800 mm
Aov @ 1/1.8″ h°×v°×d°108.1 × 79.7 × 144.1° 42.1 × 32.0 × 52.9°
Aov @ 1/2″ h°×v°×d°96.0 × 70.2 × 124.8° 37.9 × 28.4 × 47.5°
Aov @ 1/3″ h°×v°×d°70.2 × 52.1 × 89.3° 28.4 × 21.3 × 35.5°
Lens typeVariable Focal Length
SpectrumVisible + NIR
Zoom controlManual
Zoom range3.9 mm - 10 mm

Optics

Focal length3.9 - 10 mm
Magnification3×
Aperture (max)f/1.5
Back focal length8.5 mm
Filter threadNo Filter Threads
Focus controlManual
Focus range0.8 m - ∞
Image circle8.9 mm
Image size dimensions7.1 mm x 5.4 mm
Iris controlStepper Motor

Sensor and imaging

Sensor format1/1.8"
Resolution (MP)8

Environment and compliance

Operating temperature range-20 to +60 °C

Mechanical

MountCS-mount
Dimensions40 × 49 × 59 mm
Front diameter25 mm
Rear effective diameter10 mm
Weight71
