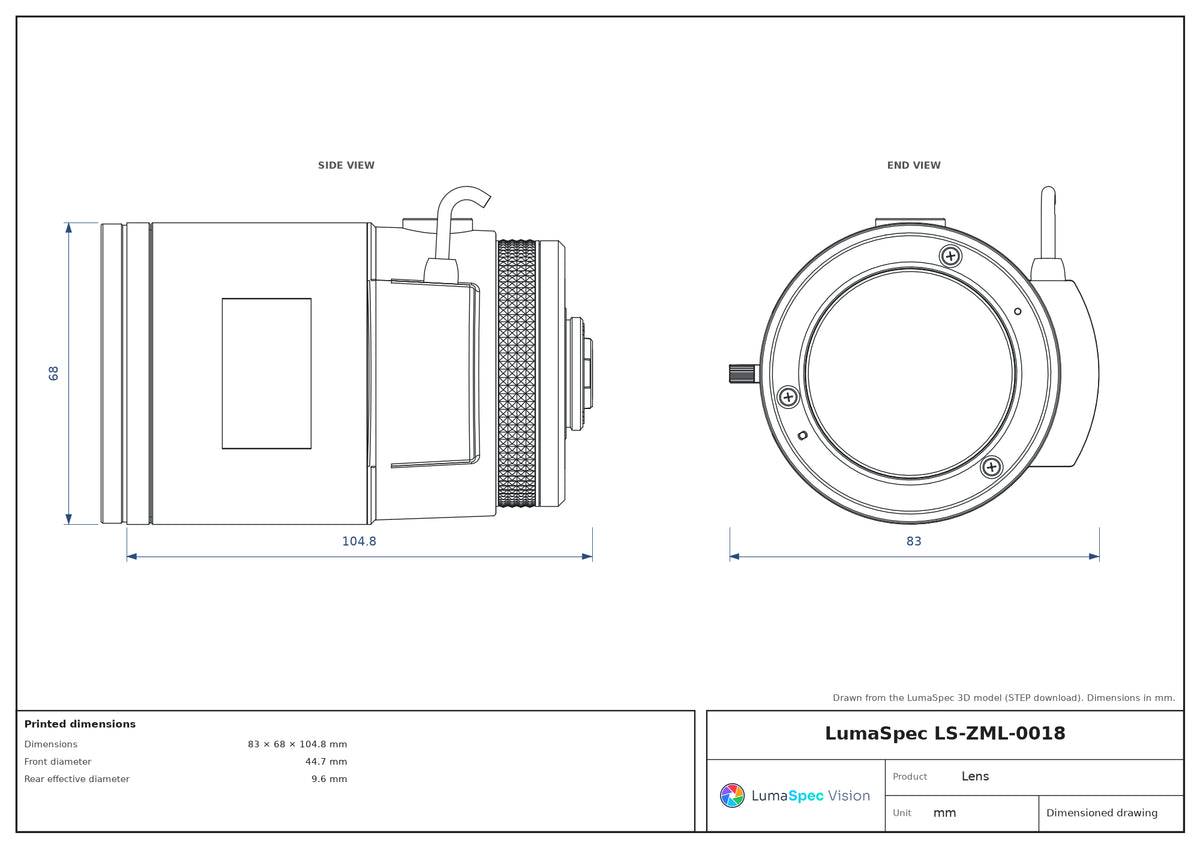

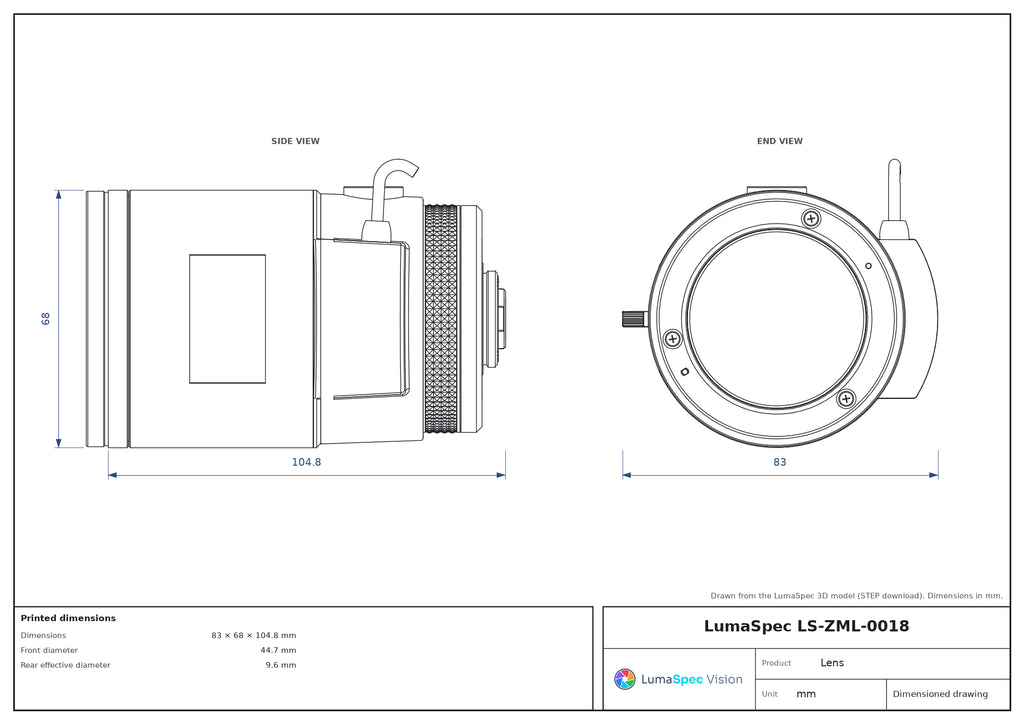

  • LS-ZML-0018 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

9 - 50 mm lens, 1/1.8", CS-mount (LS-ZML-0018)

Model LS-ZML-0018

  • Focal length9 - 50 mm
  • Magnification6×
  • MountCS-mount
  • Sensor1/1.8"
  • Aperturef/1.5
  • Resolution12
$329.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

9 - 50 mm lens, 1/1.8", CS-mount (LS-ZML-0018)LS-ZML-0018

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Machine vision lens for industrial cameras. Minimum object distance 3000 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-ZML-0018
Minimum object distance3000 mm
Aov @ 1/1.8″ (16:9) h°×v°×d°46.1 × 26.3 × 52.5° 9.0 × 5.2 × 10.2°
Aov @ 1/2.7″ (16:9) h°×v°×d°34.5 × 19.5 × 39.4° 6.7 × 3.8 × 7.7°
Aov @ 1/2.8″ (16:9) h°×v°×d°33.7 × 19.1 × 38.5° 6.6 × 3.8 × 7.5°
Aov @ 1/3″ (4:3) h°×v°×d°28.8 × 21.7 × 35.9° 5.7 × 4.3 × 7.0°
Lens typeVariable Focal Length
SpectrumVisible + NIR
Zoom controlManual
Zoom range9 mm - 50 mm

Optics

Focal length9 - 50 mm
Magnification6×
Aperture (max)f/1.5
Back focal length9.2 mm
Filter threadNo Filter Threads
Focus controlManual
Image circle8.9 mm
Image size dimensions7.1 mm x 5.4 mm
Iris controlStepper Motor

Sensor and imaging

Sensor format1/1.8"
Resolution (MP)12

Environment and compliance

Operating temperature range-20 to +60 °C

Mechanical

MountCS-mount
Dimensions83 × 68 × 104.8 mm
Front diameter44.7 mm
Rear effective diameter9.6 mm
Weight278
