Telecentric lenses

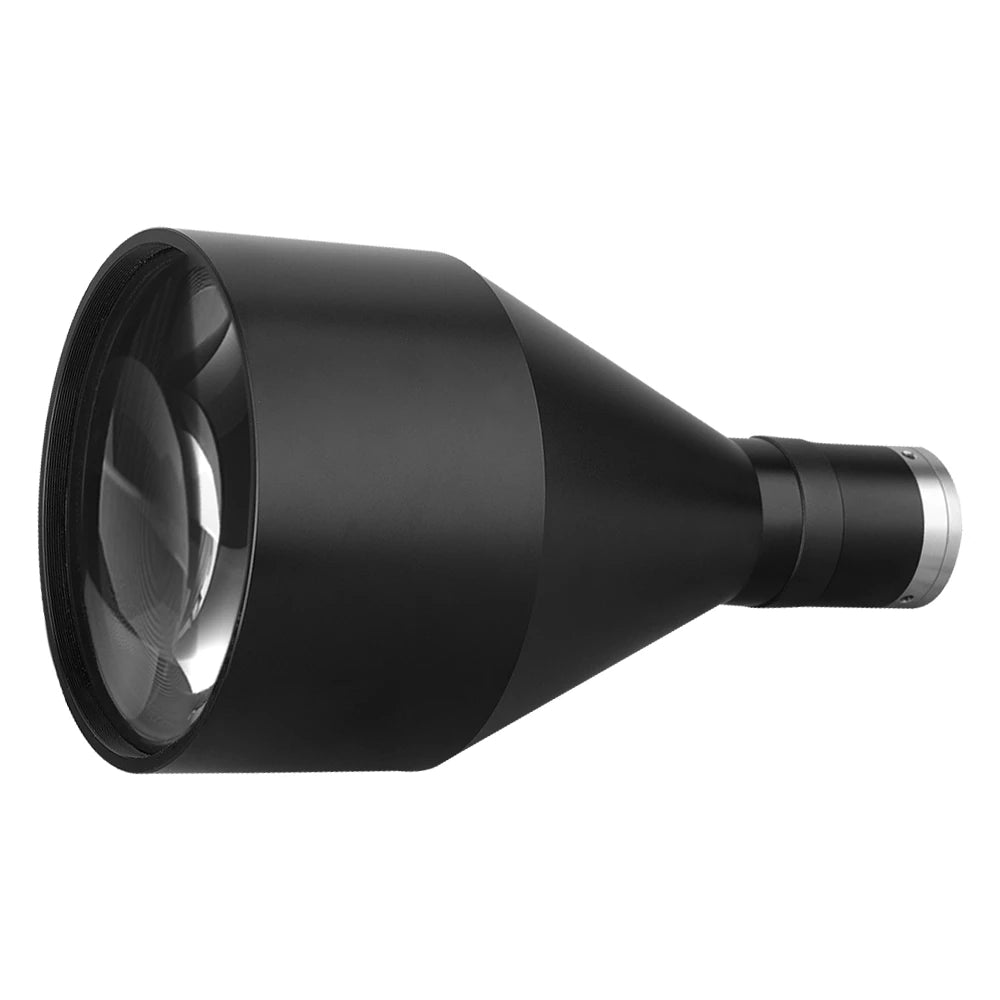

Bi-telecentric lens for 1" cameras, 0.347x, WD 128 mm, C-Mount (LS-VCM110-48-AL)
Model LS-VCM110-48-AL
- Magnification0.347x
- MountC-mount
- Sensor1"
- Working distance128±2
- Field of view48
$1,379.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.94 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Bi-telecentric lens series for sensors up to 1" (16.6 mm dia.), C-Mount. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-VCM110-48-AL |
|---|
Optics
| Distortion (% max) | <0.1 |
|---|---|
| Telecentricity (deg max) | <0.1 |
| F/# | 7.5 |
| MTF30 (lp/mm) | >100 |
| Magnification (x) | 0.347 |
| Working distance (mm) | 128±2 |
| Depth of field (mm) | ±1.5 |
| Field of view (dia. mm) | 48 |
| Object-to-image distance I/O (mm) | 300 |
| Best Aperture (F/#) | 8 |
| Field of view with KAI-04050 (12.85x9.64 sensor) (mm x mm) | 37.0x27.7 |
Sensor and imaging
| Max sensor size (dia. mm) | 16.6(1") |
|---|---|
| Sensor format | 1" |
Mechanical
| Mount | C-Mount |
|---|---|
| Length (mm) | 154.5 |
| Weight (kg) | 0.6 |
