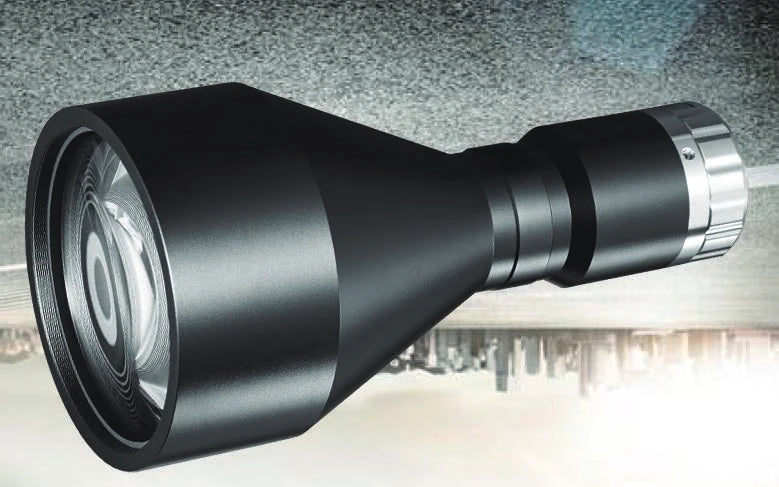

Representative photo of this series
Telecentric lenses
Bi-telecentric lens for 1" cameras, 1x, WD 24 mm, C-Mount (LS-VCM110-16.6)
Model LS-VCM110-16.6
- Magnification1.000x
- MountC-mount
- Sensor1"
- Working distance24±1
- Field of view16.6
$839.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.38 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Bi-telecentric lens series for sensors up to 1" (16.6 mm dia.), C-Mount. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-VCM110-16.6 |
|---|---|
| Compatible lighting | Telecentric LED lighting VCL-16.6-xW-y (beam diameter 16.6 mm) |
Optics
| Distortion (% max) | <0.1 |
|---|---|
| Telecentricity (deg max) | <0.1 |
| Magnification (x) | 1.000 |
| Object field of view (dia. mm) | 16.6 |
| Working distance (mm) | 24±1 |
| Best Aperture (F/#) | 6.5 |
| MTF30 (lp/mm) | >125 |
| Depth of field (mm) | ±0.6@F16 |
| Field of view with 12.85x9.64 KAI-04050 (mm) | 12.9x9.6 |
| Field of view with 11.26x11.26 CMV4000 (mm) | 11.3x11.3 |
| Field of view with 12.50x10.00 ICX674/694/814 (mm) | 12.5x10.0 |
Sensor and imaging
| Max sensor size (dia. mm) | 16.6(1") |
|---|---|
| Sensor format | 1" |
Interfaces and I/O
| Length of I/O (mm) | 132±1 |
|---|
Mechanical
| Mount | C-Mount |
|---|---|
| Length (mm) | 90.7 |
| Weight (kg) | 0.2 |
Other models in the Bi-telecentric lens for 1" cameras (VCM110 series) series
See all 28 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-VCM110-26-AL | 0.641x, WD 72 mm, 1", C-Mount | $999.00 | 3 in stock | View |
| LS-VCM110-26 | 0.638x, WD 73 mm, 1", C-mount | $999.00 | 4 in stock | View |
| LS-VCM110-36-AL | 0.461x, WD 111 mm, 1", C-Mount | $1,169.00 | 3 in stock | View |
| LS-VCM110-36 | 0.46x, WD 110 mm, 1", C-mount | $1,169.00 | 4 in stock | View |
| LS-VCM110-42-AL | 0.396x, WD 119 mm, 1", C-Mount | $1,279.00 | 2 in stock | View |
| LS-VCM110-42 | 0.395x, WD 118 mm, 1" | $1,279.00 | 3 in stock | View |
| LS-VCM110-42P-AL | 0.398x, WD 118 mm, 1", C-mount | $1,279.00 | 3 in stock | View |
| LS-VCM110-48-AL | 0.347x, WD 128 mm, 1", C-Mount | $1,379.00 | 4 in stock | View |
| LS-VCM110-48S-AL | 0.346x, WD 138 mm, 1", C-mount | $1,379.00 | 4 in stock | View |
| LS-VCM110-48 | 0.346x, WD 128 mm, 1", C-mount | $1,379.00 | 4 in stock | View |
| LS-VCM110-56-AL | 0.298x, WD 138 mm, 1", C-Mount | $1,519.00 | 3 in stock | View |
| LS-VCM110-64-AL | 0.26x, WD 187 mm, 1", C-Mount | $1,649.00 | 5 in stock | View |
| LS-VCM110-64P-AL | 0.26x, WD 159 mm, 1", C-Mount | $1,649.00 | 2 in stock | View |
| LS-VCM110-72-AL | 0.231x, WD 178 mm, 1", C-Mount | $1,789.00 | 5 in stock | View |
| LS-VCM110-80-AL | 0.208x, WD 229 mm, 1", C-Mount | $1,929.00 | 3 in stock | View |
| LS-VCM110-80P-AL | 0.208x, WD 230 mm, 1", C-mount | $1,929.00 | 2 in stock | View |
| LS-VCM110-90-AL | 0.185x, WD 208 mm, 1", C-mount | $2,099.00 | 3 in stock | View |
| LS-VCM110-100-AL | 0.179x, WD 254 mm, 1", C-Mount | $2,149.00 | 2 in stock | View |
| LS-VCM110-100P-AL | 0.168x, WD 238 mm, 1", C-mount | $2,269.00 | 2 in stock | View |
| LS-VCM110-110-AL | 0.15x, WD 251 mm, 1", C-Mount | $2,459.00 | 4 in stock | View |
| LS-VCM110-120-AL | 0.138x, WD 280 mm, 1", C-mount | $2,609.00 | 4 in stock | View |
| LS-VCM110-136-AL | 0.122x, WD 288 mm, 1", C-Mount | $2,889.00 | 3 in stock | View |
| LS-VCM110-150-AL | 0.111x, WD 301 mm, 1", C-Mount | $3,129.00 | 5 in stock | View |
| LS-VCM110-170-AL | 0.098x, WD 318 mm, 1", C-Mount | $3,459.00 | 3 in stock | View |
