Telecentric lenses

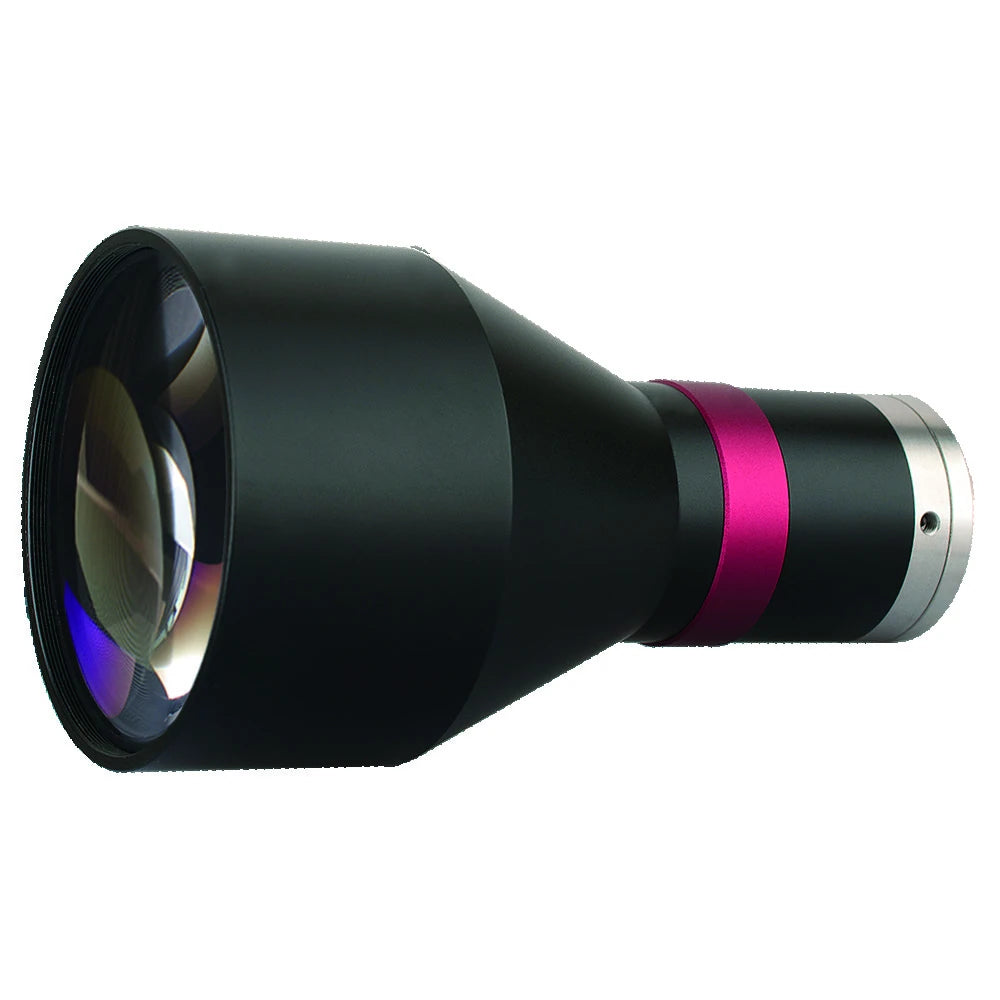

Bi-telecentric lens for 1" cameras, 0.46x, WD 110 mm, C-mount (LS-VCM110-36)
Model LS-VCM110-36
- Magnification0.460x
- MountC-mount
- Sensor1"
- Working distance110±2
- Field of view36
$1,169.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.8 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Bi-telecentric lens series for sensors up to 1" (16.6 mm dia.), C-Mount. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-VCM110-36 |
|---|
Optics
| Distortion (% max) | <0.1 |
|---|---|
| Telecentricity (deg max) | <0.1 |
| Magnification (x) | 0.460 |
| Object field of view (dia. mm) | 36 |
| Working distance (mm) | 110±2 |
| Best Aperture (F/#) | 7.8 |
| MTF30 (lp/mm) | >100 |
| Depth of field (mm) | ±3.0@F16 |
| Field of view with KAI-04050 (12.85×9.64 sensor) (mm x mm) | 27.9x21.0 |
| Field of view with CMV4000 (11.26×11.26 sensor) (mm x mm) | 24.5x24.5 |
| Field of view with ICX674/694/814 (12.50×10.00 sensor) (mm x mm) | 27.2x21.7 |
| Compatible telecentric led lighting | LS-VCL-36-XW-Y |
Sensor and imaging
| Max sensor size (dia. mm) | 16.6(1") |
|---|
Interfaces and I/O
| Length of I/O (mm) | 284±2 |
|---|
Mechanical
| Mount | C-Mount |
|---|---|
| Length (mm) | 156.4 |
| Weight (kg) | 0.5 |
Other models in the Bi-telecentric lens for 1" cameras (VCM110 series) series
See all 28 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-VCM110-16.6 | 1x, WD 24 mm, 1", C-Mount | $839.00 | 2 in stock | View |
| LS-VCM110-26-AL | 0.641x, WD 72 mm, 1", C-Mount | $999.00 | 3 in stock | View |
| LS-VCM110-26 | 0.638x, WD 73 mm, 1", C-mount | $999.00 | 4 in stock | View |
| LS-VCM110-36-AL | 0.461x, WD 111 mm, 1", C-Mount | $1,169.00 | 3 in stock | View |
| LS-VCM110-42-AL | 0.396x, WD 119 mm, 1", C-Mount | $1,279.00 | 2 in stock | View |
| LS-VCM110-42 | 0.395x, WD 118 mm, 1" | $1,279.00 | 3 in stock | View |
| LS-VCM110-42P-AL | 0.398x, WD 118 mm, 1", C-mount | $1,279.00 | 3 in stock | View |
| LS-VCM110-48-AL | 0.347x, WD 128 mm, 1", C-Mount | $1,379.00 | 4 in stock | View |
| LS-VCM110-48S-AL | 0.346x, WD 138 mm, 1", C-mount | $1,379.00 | 4 in stock | View |
| LS-VCM110-48 | 0.346x, WD 128 mm, 1", C-mount | $1,379.00 | 4 in stock | View |
| LS-VCM110-56-AL | 0.298x, WD 138 mm, 1", C-Mount | $1,519.00 | 3 in stock | View |
| LS-VCM110-64-AL | 0.26x, WD 187 mm, 1", C-Mount | $1,649.00 | 5 in stock | View |
| LS-VCM110-64P-AL | 0.26x, WD 159 mm, 1", C-Mount | $1,649.00 | 2 in stock | View |
| LS-VCM110-72-AL | 0.231x, WD 178 mm, 1", C-Mount | $1,789.00 | 5 in stock | View |
| LS-VCM110-80-AL | 0.208x, WD 229 mm, 1", C-Mount | $1,929.00 | 3 in stock | View |
| LS-VCM110-80P-AL | 0.208x, WD 230 mm, 1", C-mount | $1,929.00 | 2 in stock | View |
| LS-VCM110-90-AL | 0.185x, WD 208 mm, 1", C-mount | $2,099.00 | 3 in stock | View |
| LS-VCM110-100-AL | 0.179x, WD 254 mm, 1", C-Mount | $2,149.00 | 2 in stock | View |
| LS-VCM110-100P-AL | 0.168x, WD 238 mm, 1", C-mount | $2,269.00 | 2 in stock | View |
| LS-VCM110-110-AL | 0.15x, WD 251 mm, 1", C-Mount | $2,459.00 | 4 in stock | View |
| LS-VCM110-120-AL | 0.138x, WD 280 mm, 1", C-mount | $2,609.00 | 4 in stock | View |
| LS-VCM110-136-AL | 0.122x, WD 288 mm, 1", C-Mount | $2,889.00 | 3 in stock | View |
| LS-VCM110-150-AL | 0.111x, WD 301 mm, 1", C-Mount | $3,129.00 | 5 in stock | View |
| LS-VCM110-170-AL | 0.098x, WD 318 mm, 1", C-Mount | $3,459.00 | 3 in stock | View |
