Collimated lights
20 mm dia. Collimated Spot Light (LS-TP-20)
Model LS-TP-20
- ColourRed, Green, Blue, White
- Emitting areaø20
- Size30X88.5
- Voltage5 V
- Power1.5 W
$259.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.3 kg shipping weight
Volume pricing, Net 30 or a formal quote?
20 mm dia. Collimated Spot Light. Collimated light in which high-power LED chips produce parallel light through a condensing lens, suitable for applications needing parallelism or medium-to-long distance illumination. Used for high-precision dimension inspection, deep-hole measurement and surface defect detection.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TP-20 |
|---|
Light
| Emitting area (mm) | ø20 |
|---|---|
| Colours | Red, Green, Blue, White |
| LED colour options (legend) | R / G / B / W |
| Colours shown per model | R, G, B, W |
Electrical
| Voltage (V) | 5 |
|---|---|
| Power R (W) | 1 |
| Power W/B/G (W) | 1.5 |
Mechanical
| Outer size ODxH (mm) | 30X88.5 |
|---|---|
| Shipping weight (estimated) | 0.30 kg |

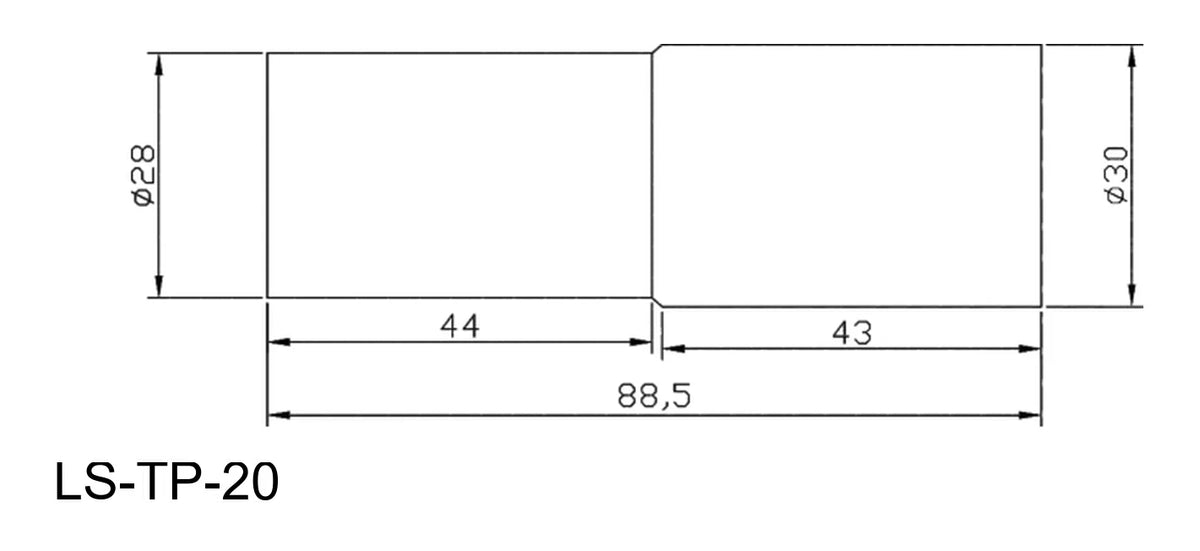

Mounting and drawing data
drawing: dia 28 / dia 30 sections, lengths 44 + 43 = 88.5
